Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> B ABS Warning Indicator on (Brake Indicator Off) >> B2 to B6

B2 to B6

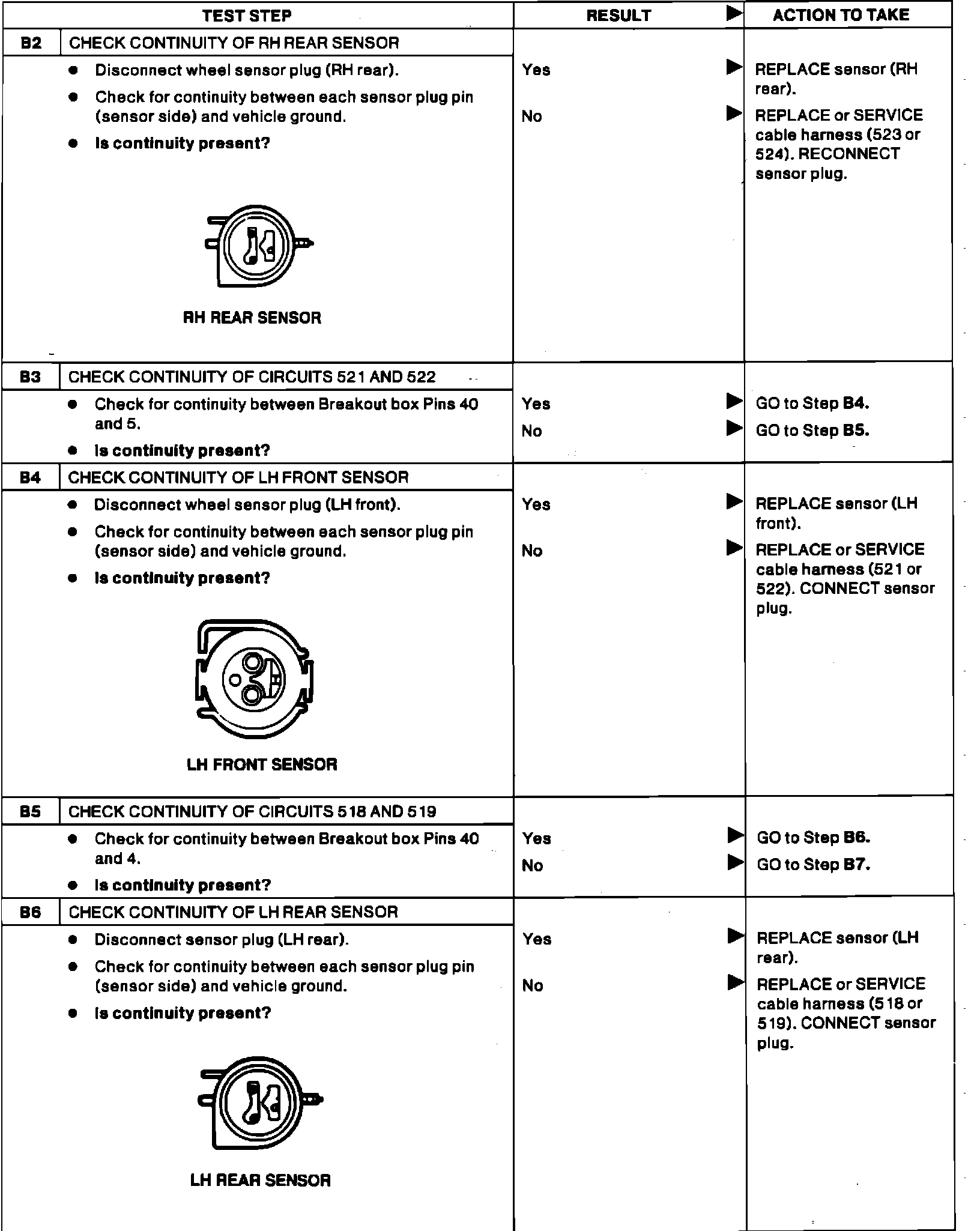

:�c>Test B2 - B6 Anti-Lock Lamp On After Engine Starts:
