A Warning Indicator ON/Brake Warning OFF)
>>
A44 to A48
A44 to A48

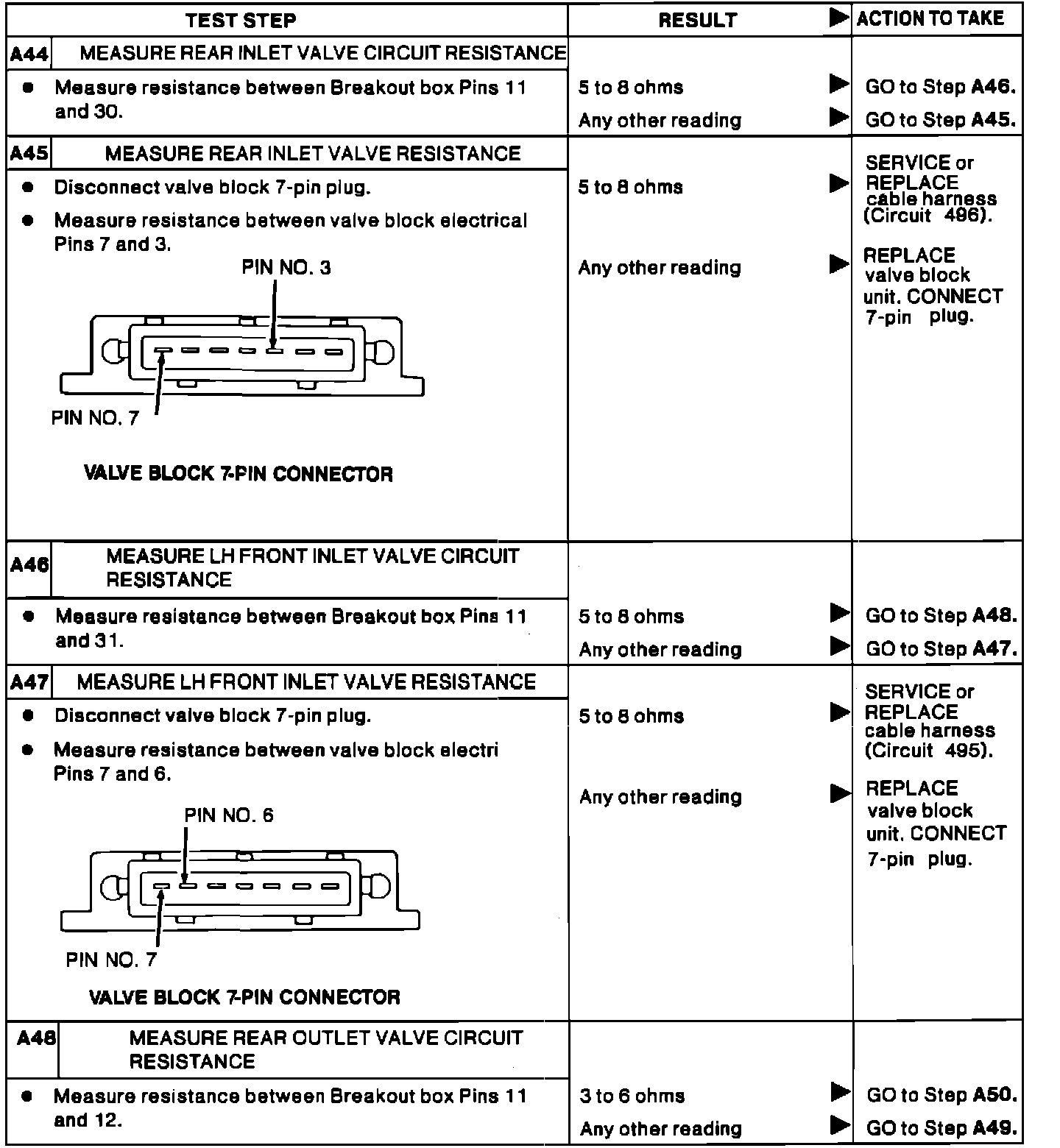

Test A44 - A48 Anti-Lock Warning Lamp On:
