A Warning Indicator ON/Brake Warning OFF)
>>
A14 to A16
A14 to A16

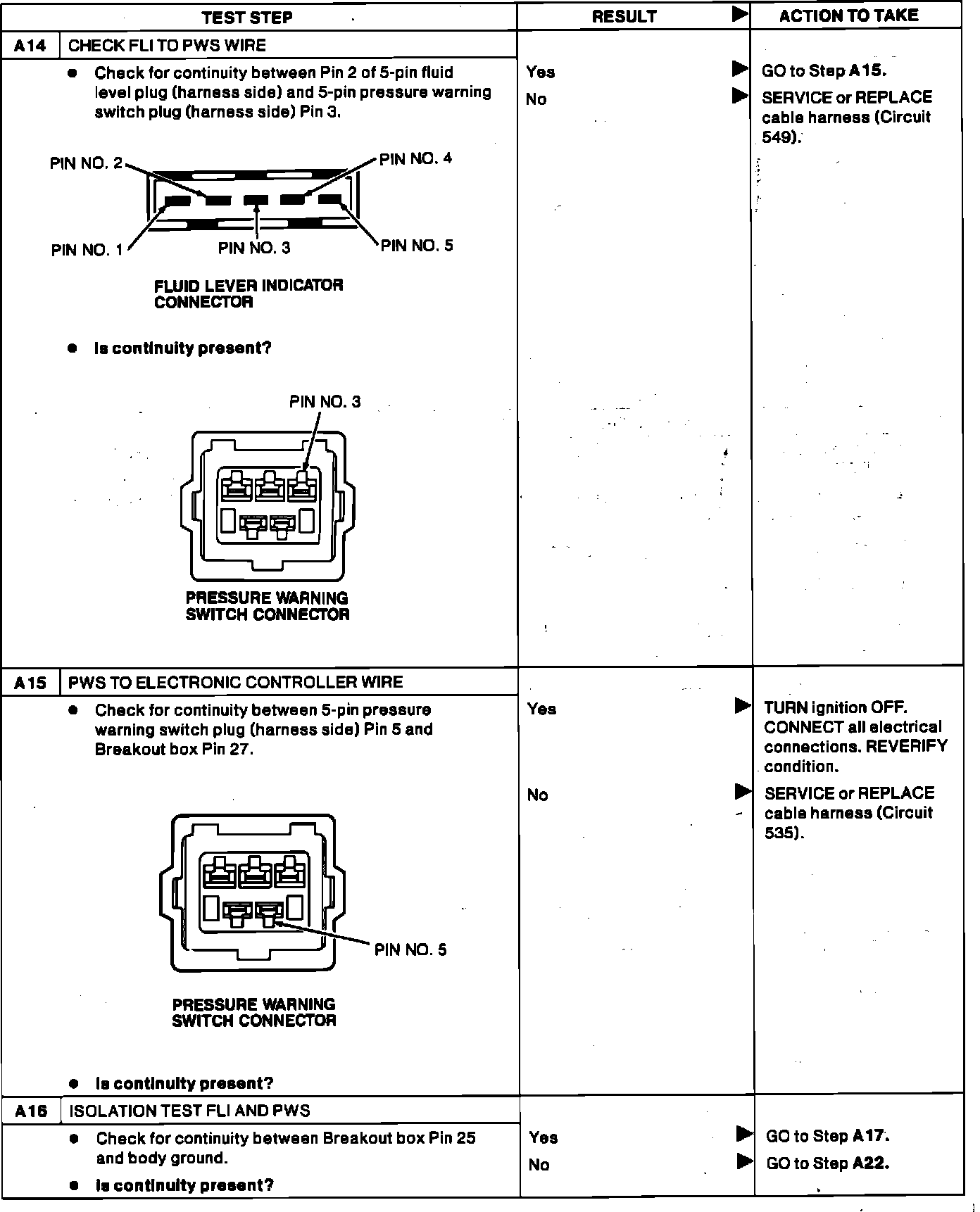

Test A14 - A16 Anti-Lock Warning Lamp On:
