A Warning Indicator ON/Brake Warning OFF)
>>
A11 to A13
A11 to A13

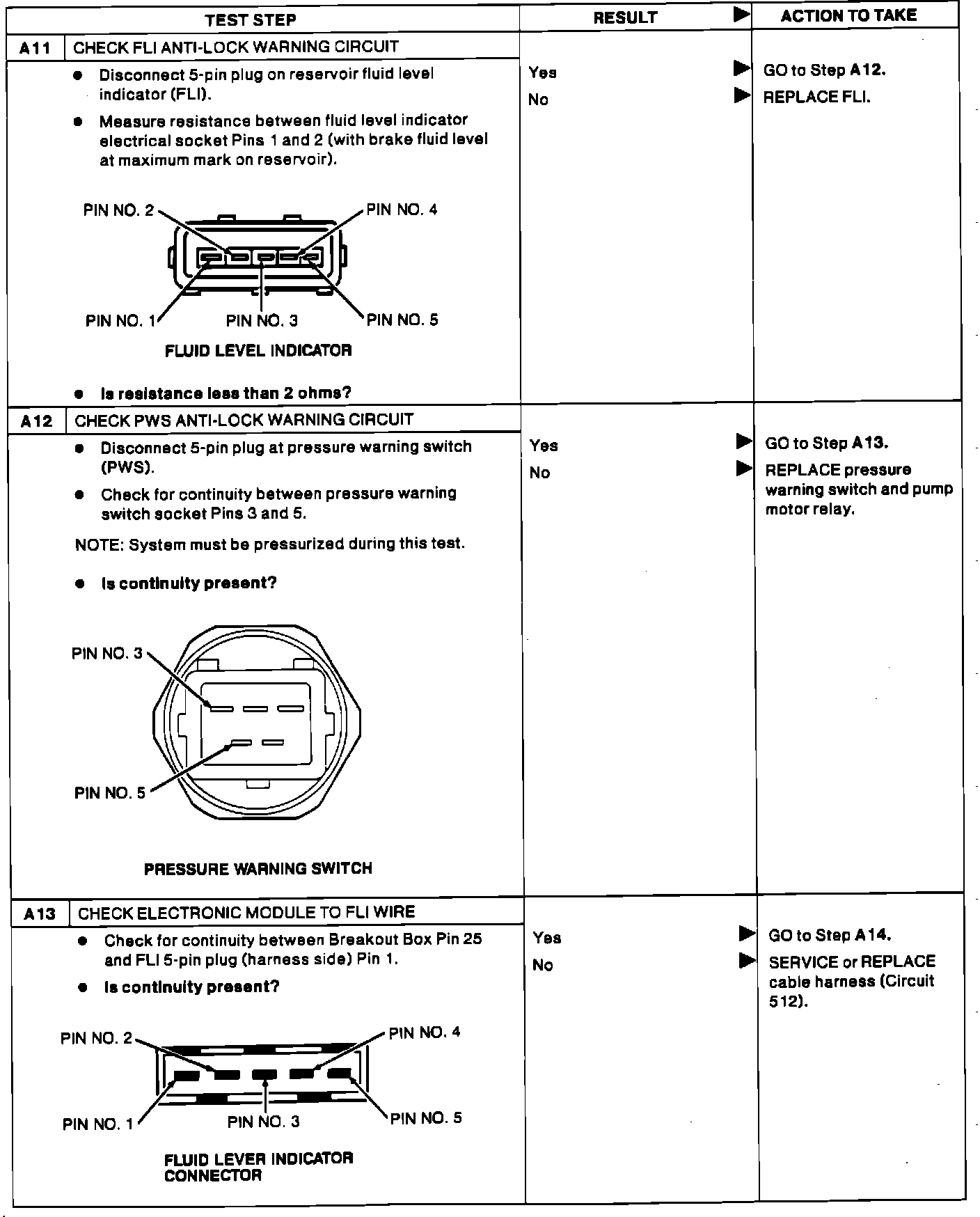

Test A11 - A13 Anti-Lock Warning Lamp On:
