Home >> Mercury >> 1992 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Module >> Diagrams

Keyless Entry Module: Diagrams

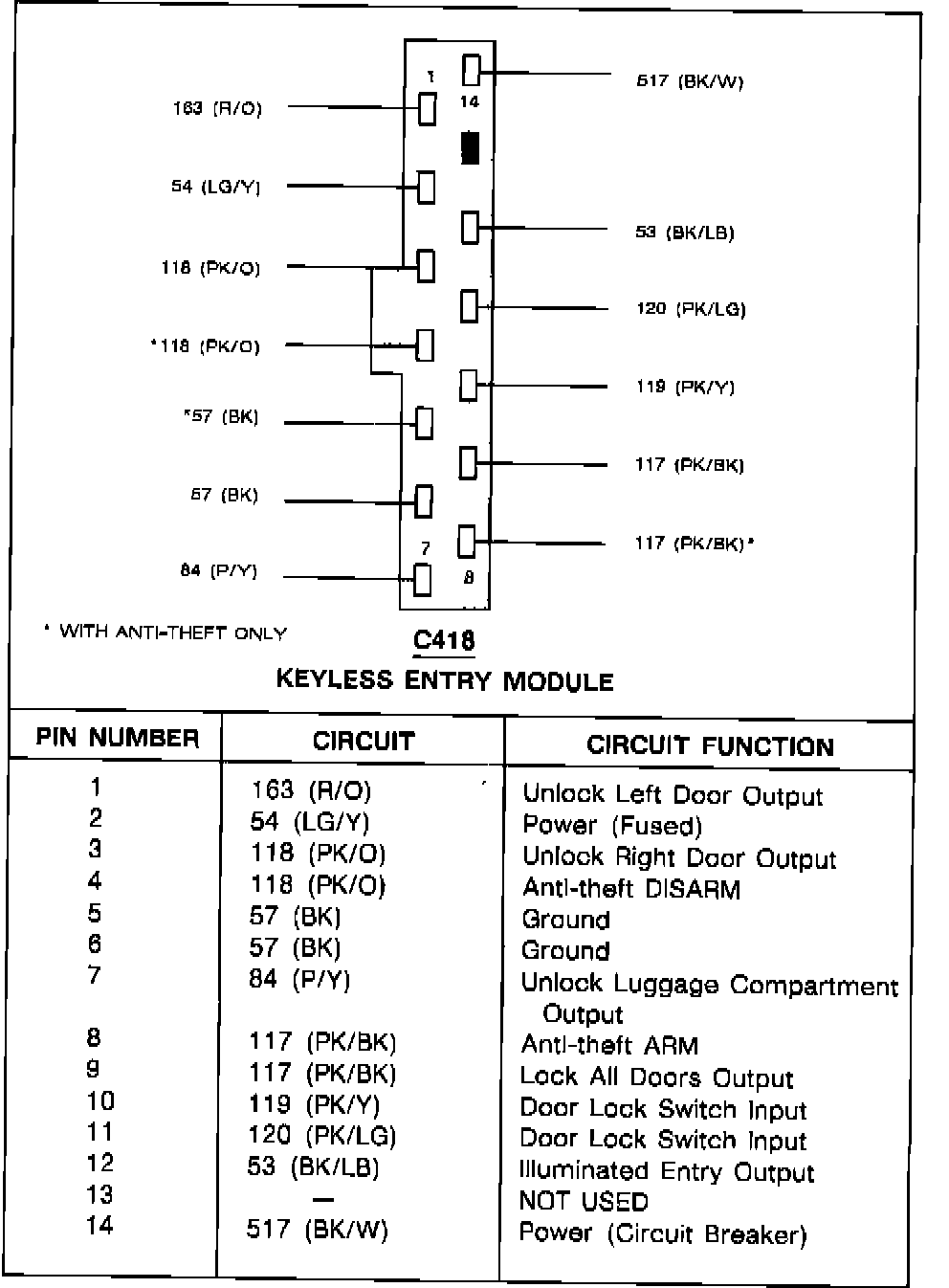

Keyless Entry Module:

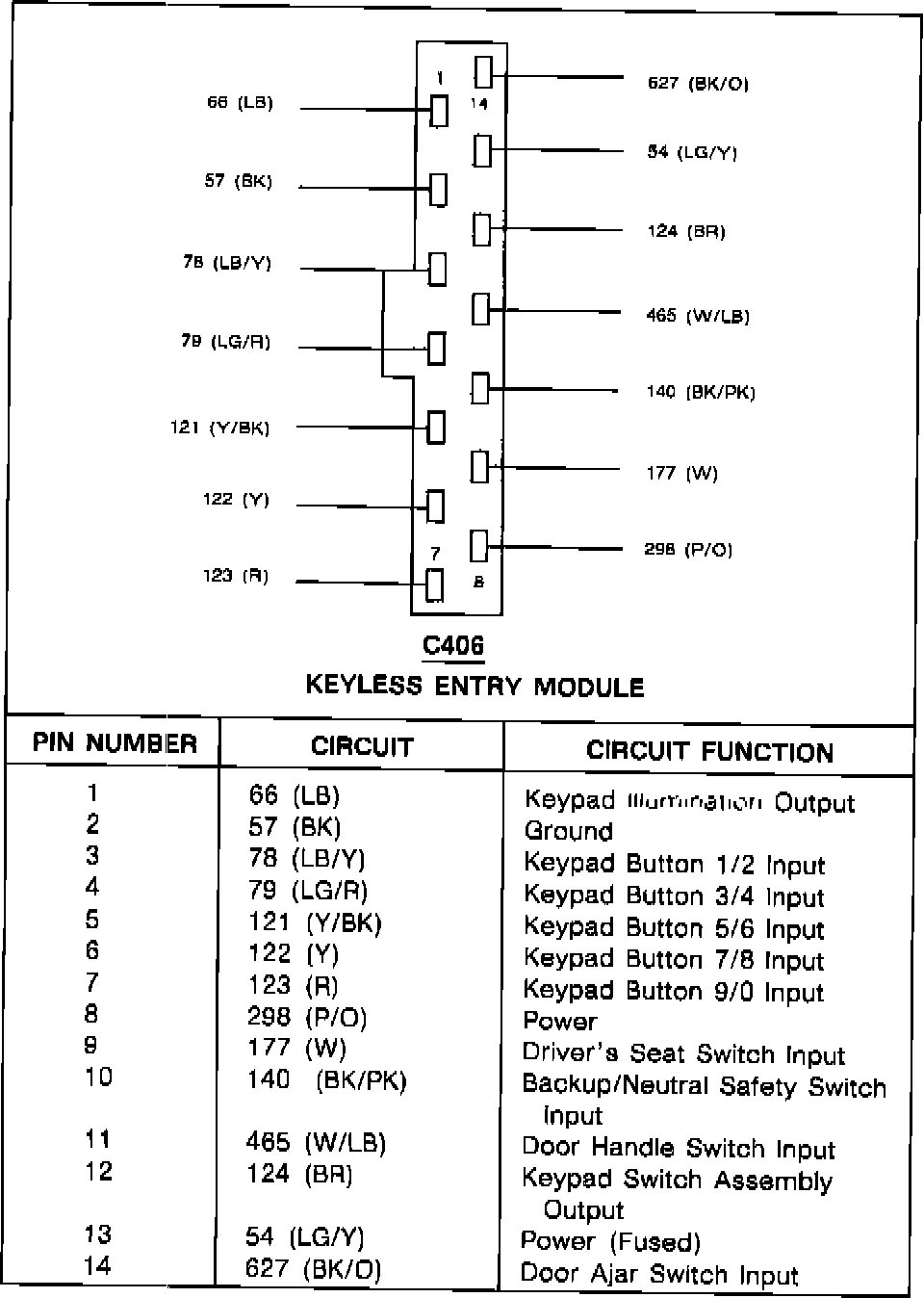

Keyless Entry Module:
