Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
I - Lamp Flashes 8 Times
>>
Tests I1 - I4
Tests I1 - I4

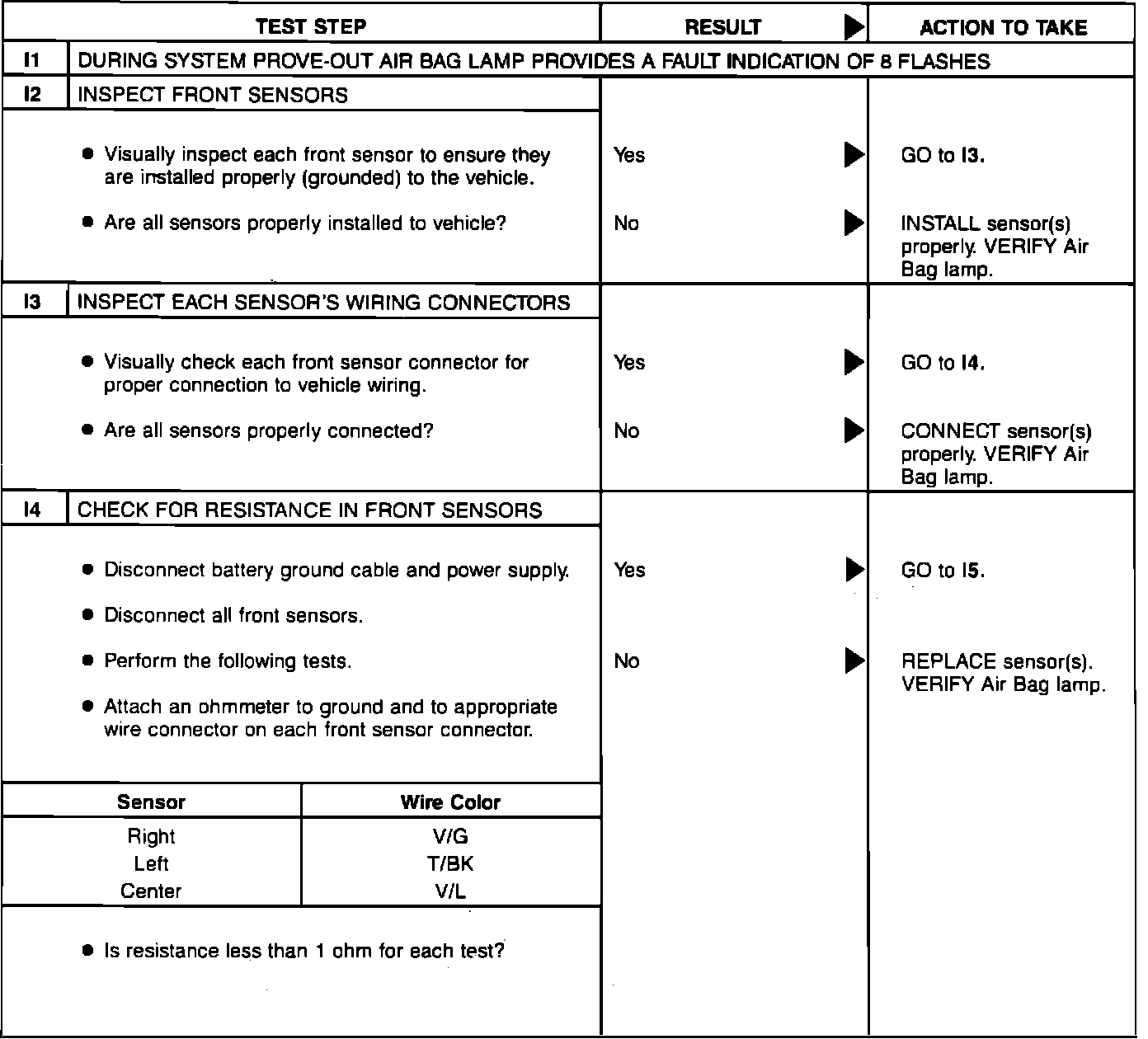

Fig. 58 Lamp Flashes 8 Times (Forward Crash Sensor Improperly Attached Or Ground, Part 1 Of 2):
