H - Lamp Flashes 7 Times
>>
Tests H3 - H4
Tests H3 - H4

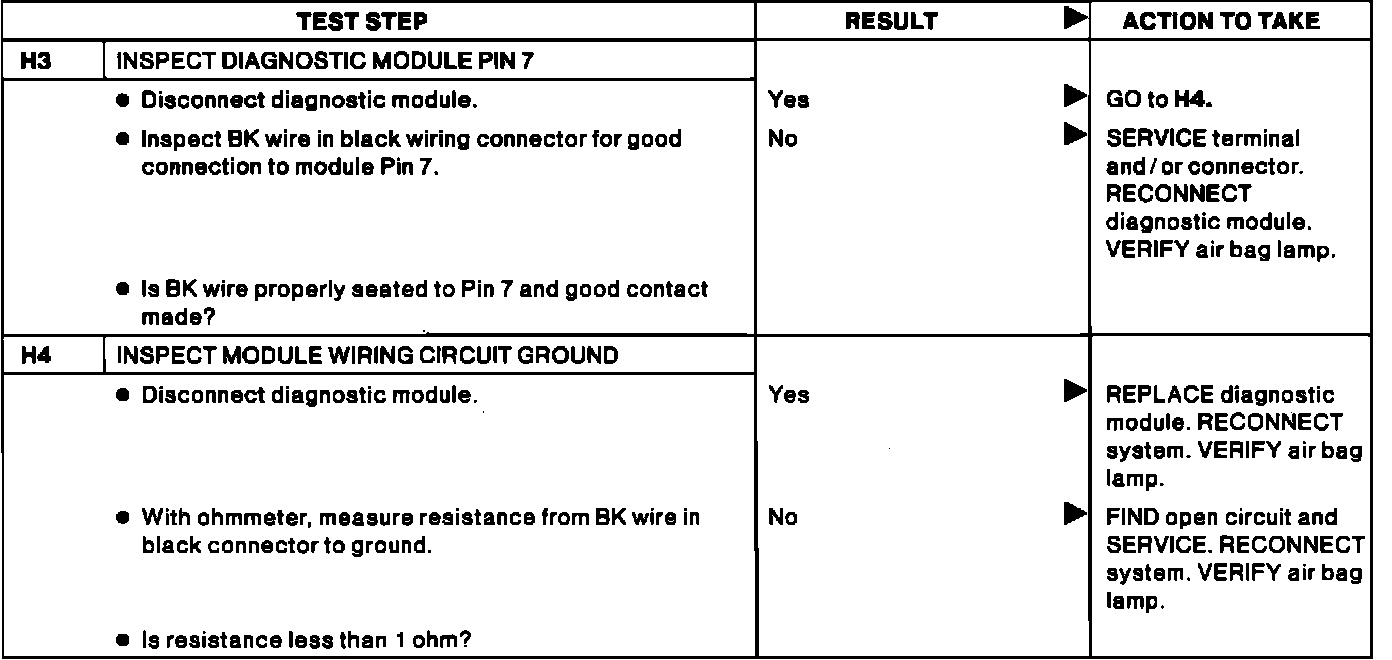

Fig. 54 Lamp Flashes 7 Times (Module Wiring Circuit Inoperative, Part 2 Of 2):
