G - Lamp Flashes 6 Times
>>
Tests G4 - G5
Tests G4 - G5

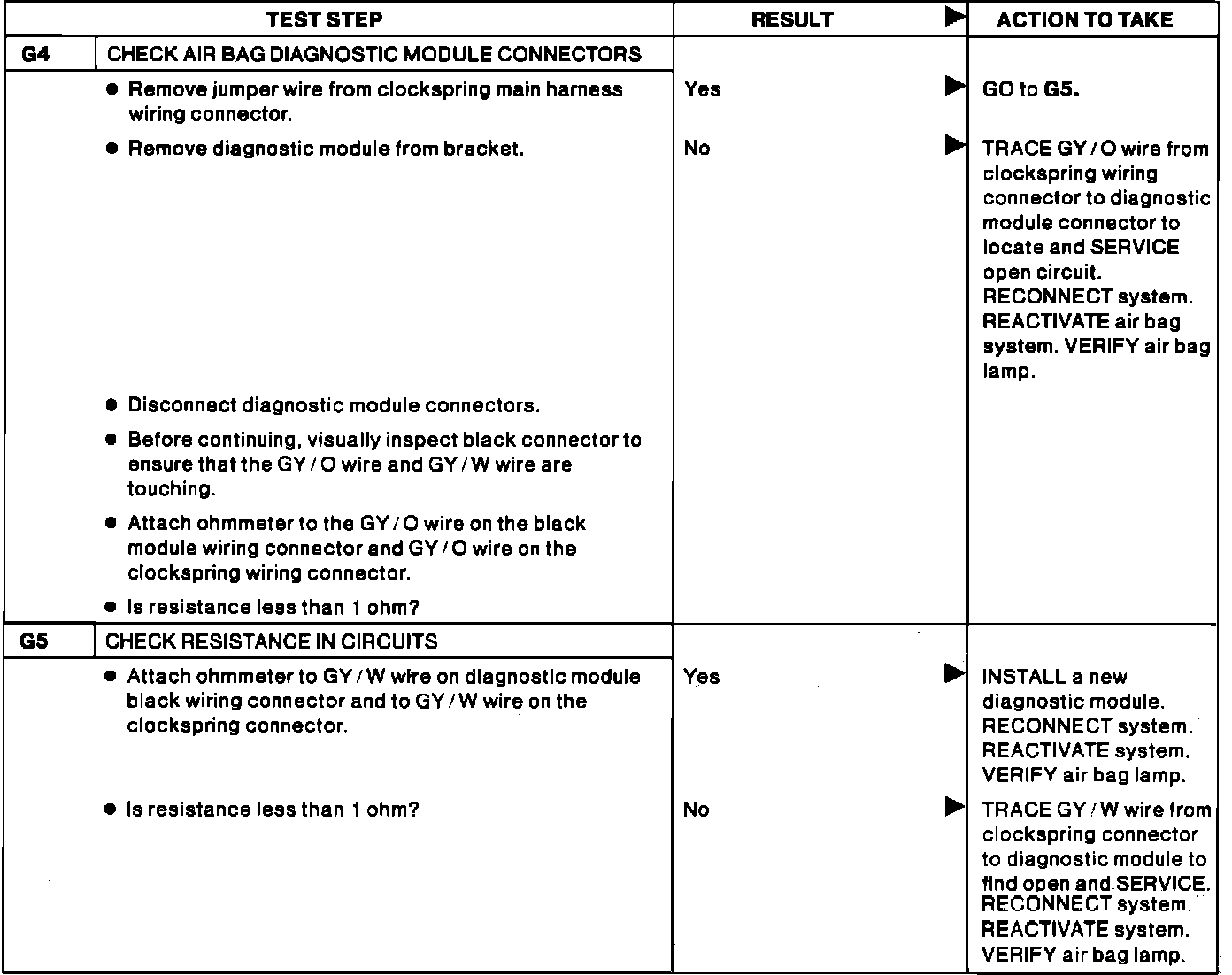

Fig. 50 Lamp Flashes 6 Times (Driver Airbag Circuit Inoperative, Part 2 Of 2):
