Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> A: No Air Bag Indicator >> A11 - A12

A11 - A12

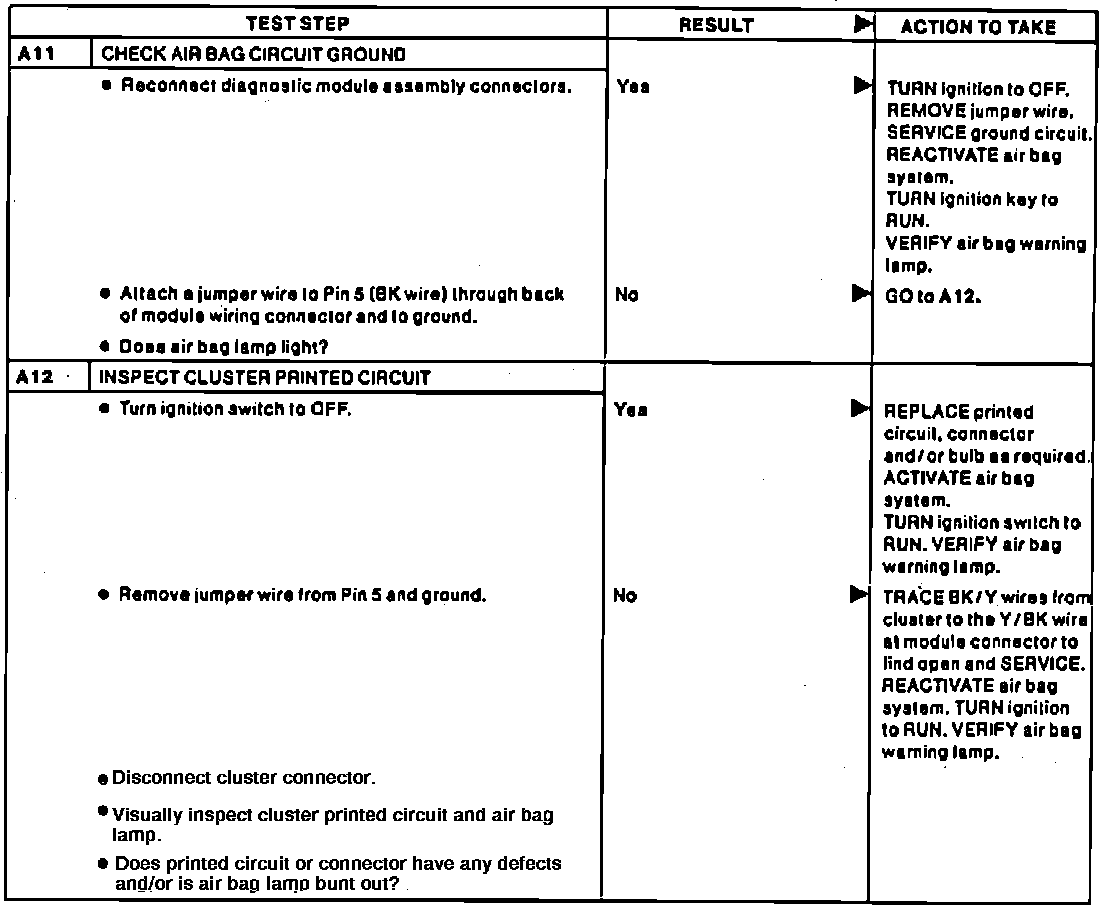

Fig. 20 Inoperative Airbag Lamp Circuit (Part 3 Of 3):
