System Deactivation Procedures





1. Disconnect battery ground cable and battery backup power supply.
2. Remove the four nut and washer assemblies securing the air bag to the steering wheel.
3. Disconnect the air bag connector from the clockspring.

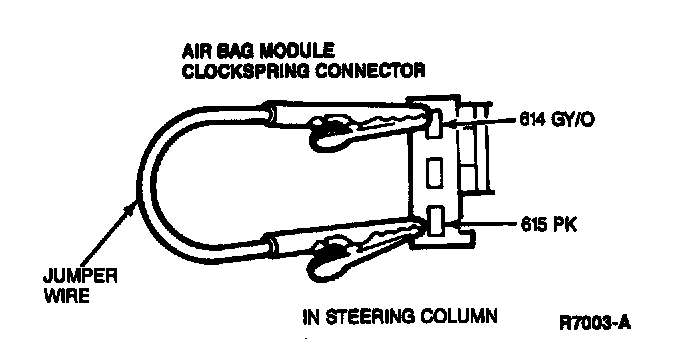

4. Attach a jumper wire to the air bag terminals on the clockspring.
5. Connect battery ground cable and battery backup.
