Wide-Open Throttle Position

Wide-Open Throttle Position Adjustment:

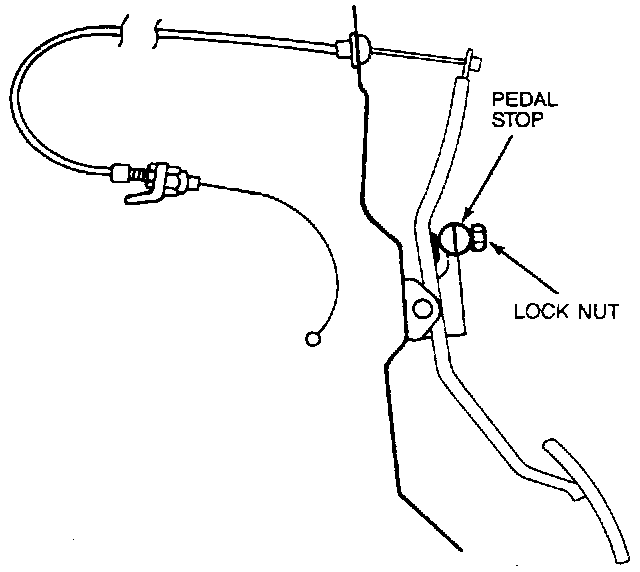

1. First adjust pedal free play.
2. Depress accelerator pedal to floor. Confirm that throttle plates in throttle body are fully open.
3. If not, loosen locknut at pedal stop on pedal bracket and adjust. Tighten locknut after adjustment.
