FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1992
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Fuel Delivery Diagnosis
>>
FC - High Fuel Pressure Test
>>
FC1 - Check Fuel Pressure Regulator For High Pressure
FC1 - Check Fuel Pressure Regulator For High Pressure

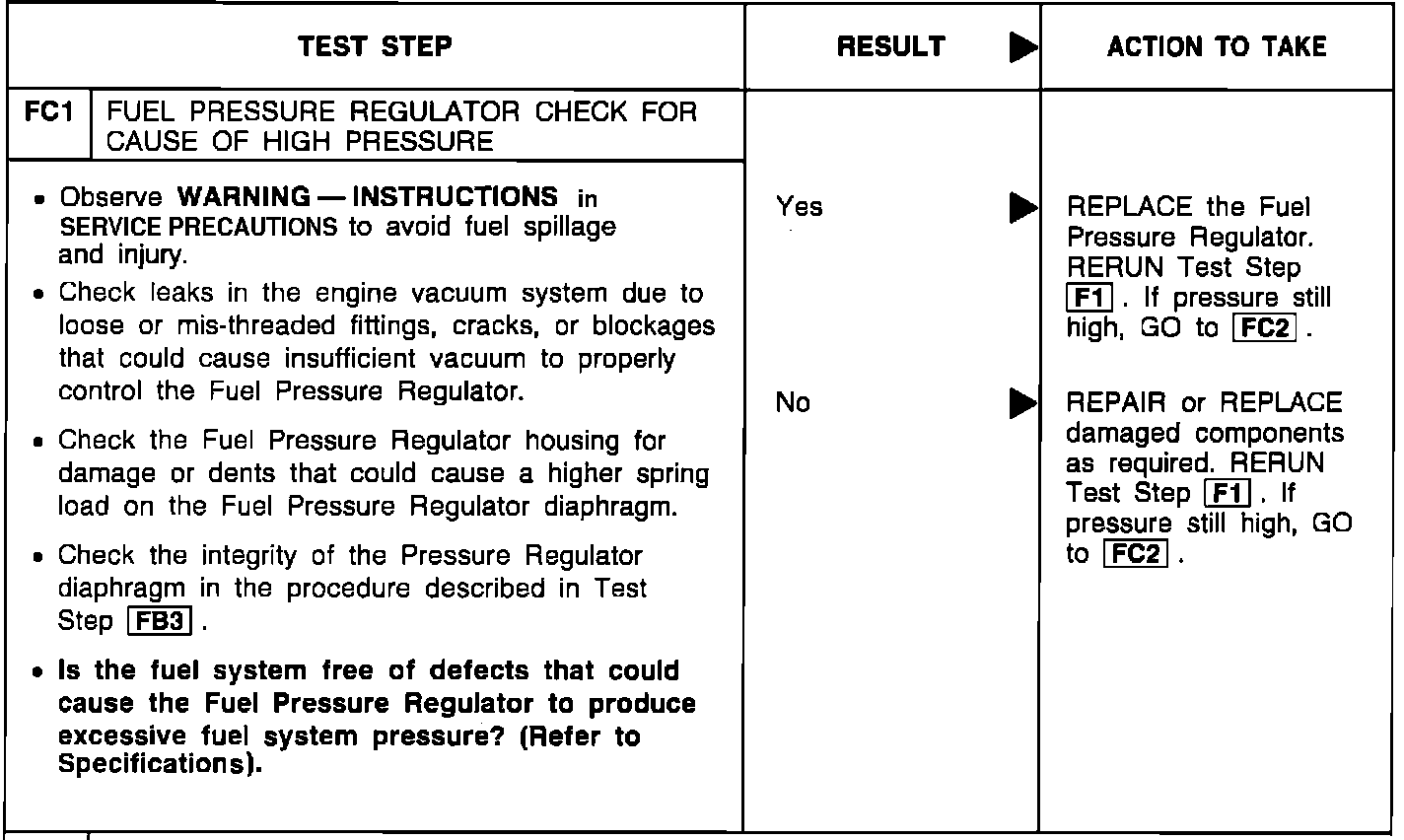

FC1 - Fuel Pressure Regulator Check For High Pressure:
