Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Fuel Delivery Diagnosis >> FA - No Fuel Pressure Test >> FA6 - Check VAF Fuel Pump Switch

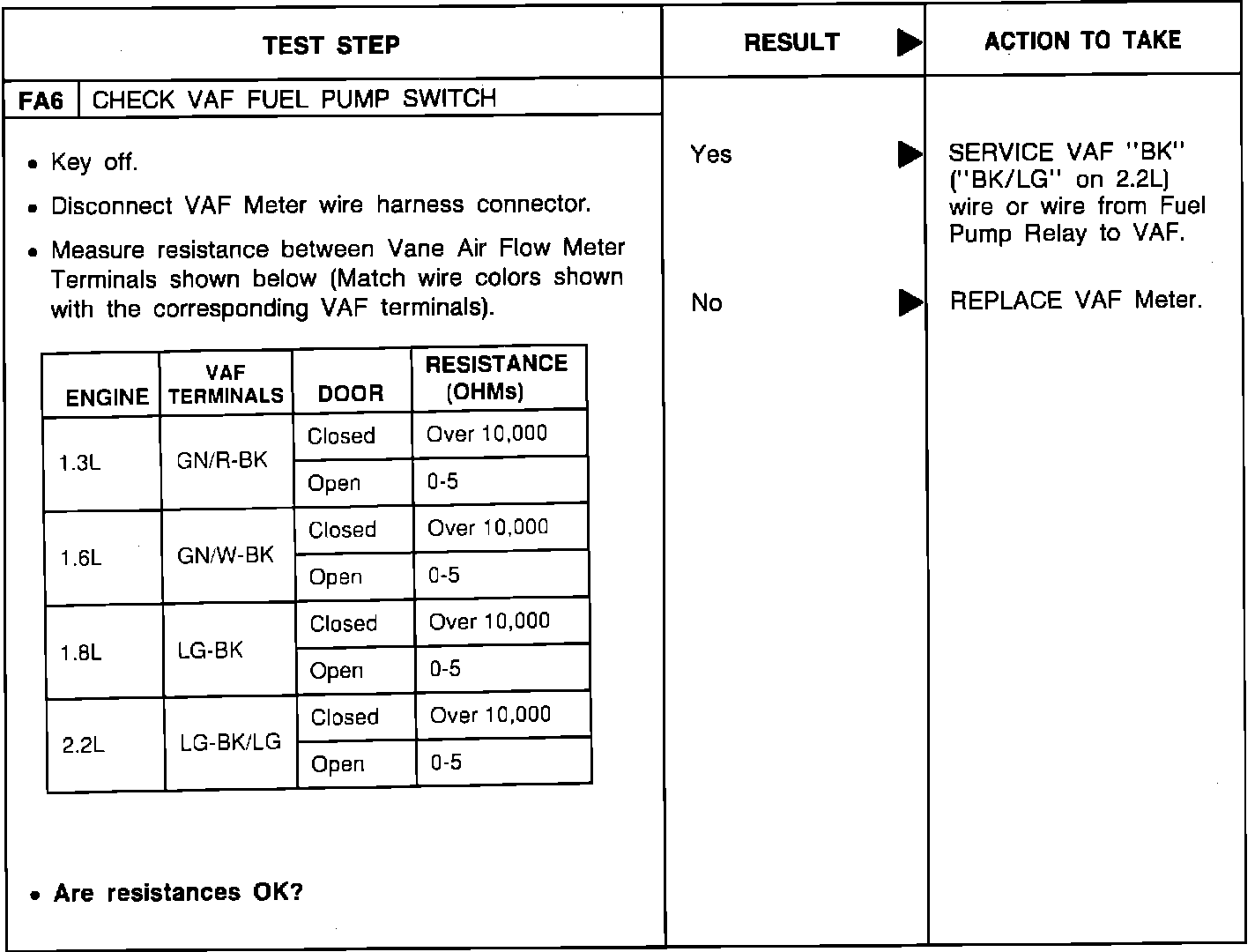

FA6 - Check VAF Fuel Pump Switch
