FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1992
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Normal Scan Data Values (Includes PID's)
>>

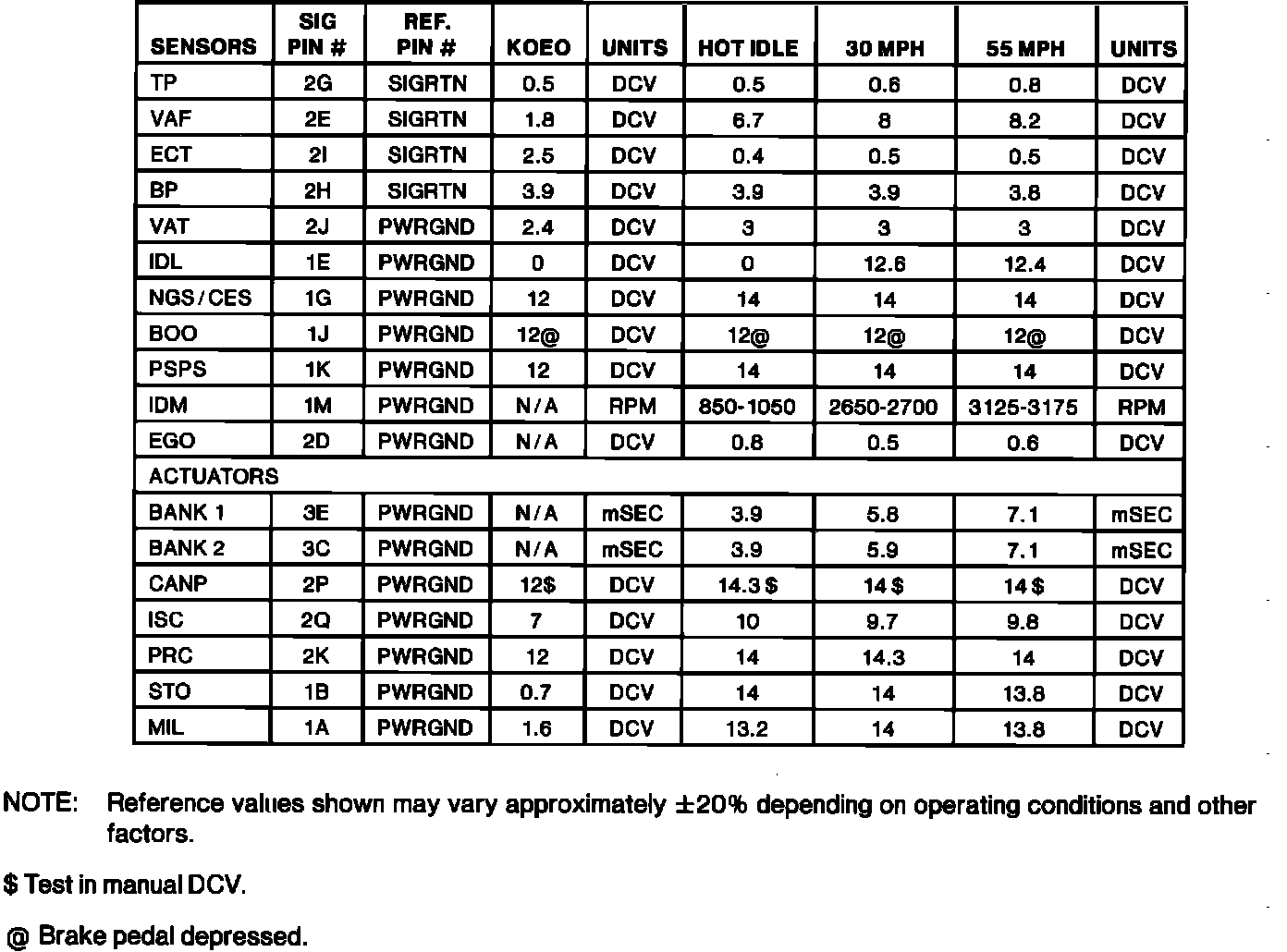

Diagnostic Reference Values
Diagnostic Reference Values
Reference Values:
