Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> VAT - Vane Air Temperature Sensor >> VAT - Circuit Data

VAT - Circuit Data

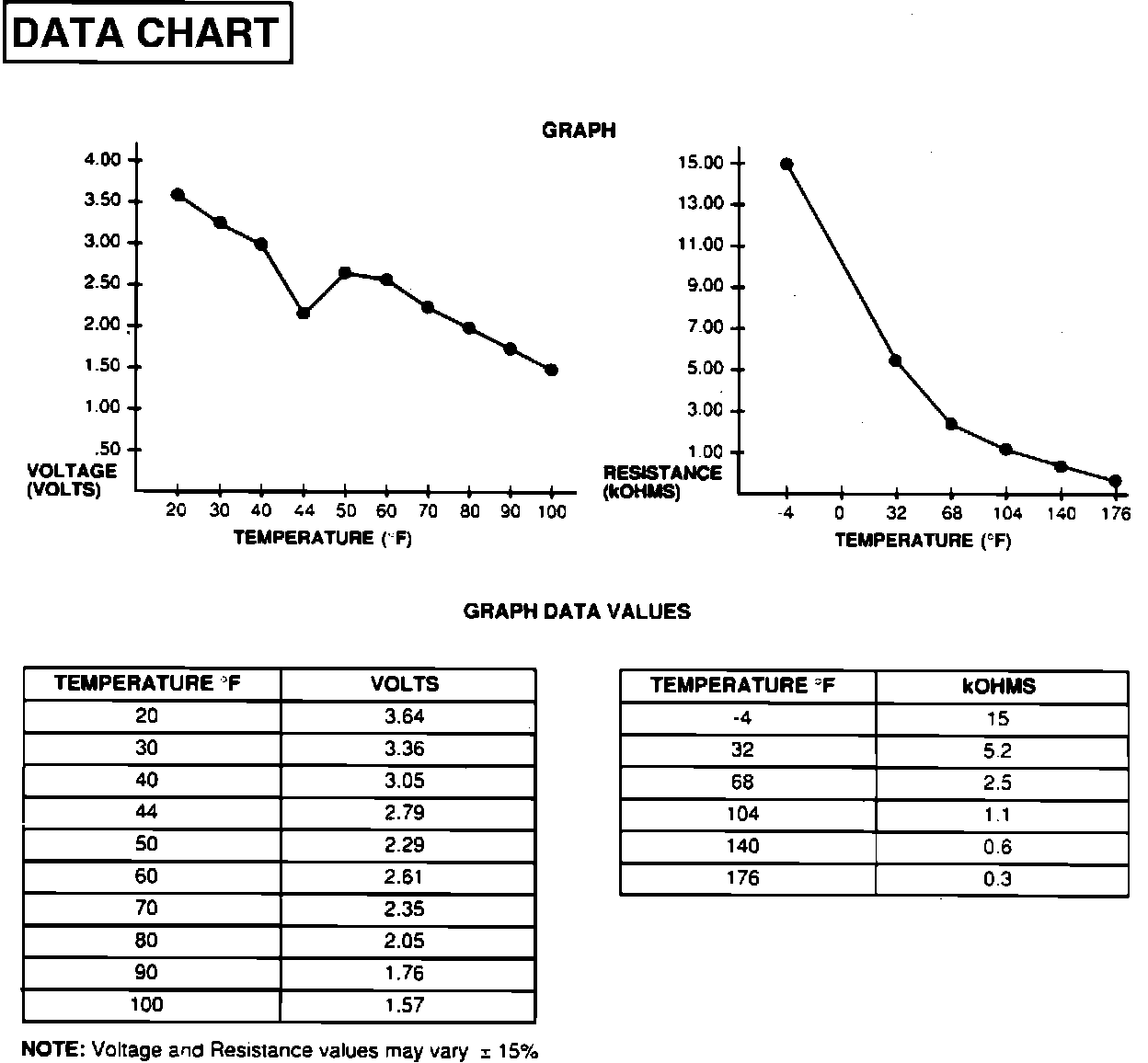

Pinpoint Test VAT Data Chart:
