Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> ELU - Electrical Load Control Unit Test >> ELU4 - ELU Ground

ELU4 - ELU Ground

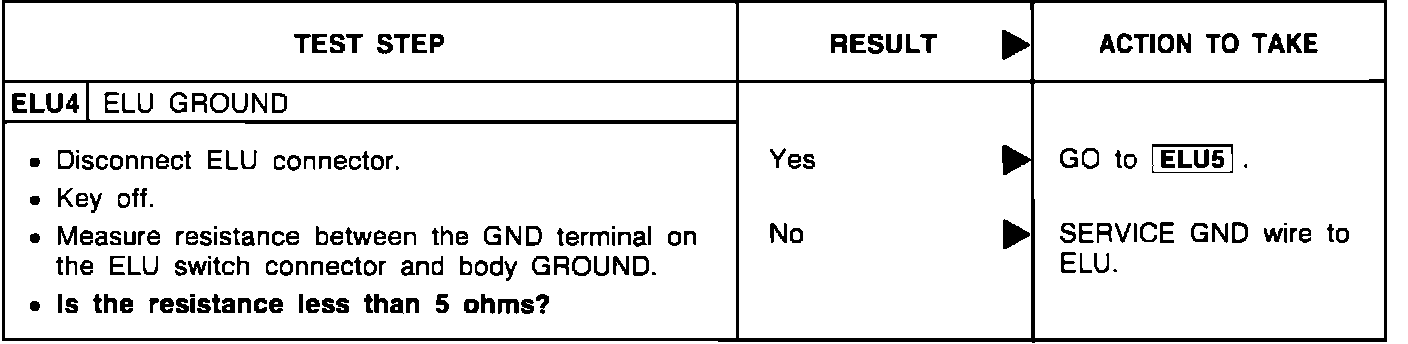

Pinpoint Test ELU4:
