Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Barometric Pressure Sensor >> Locations

Barometric Pressure Sensor: Locations

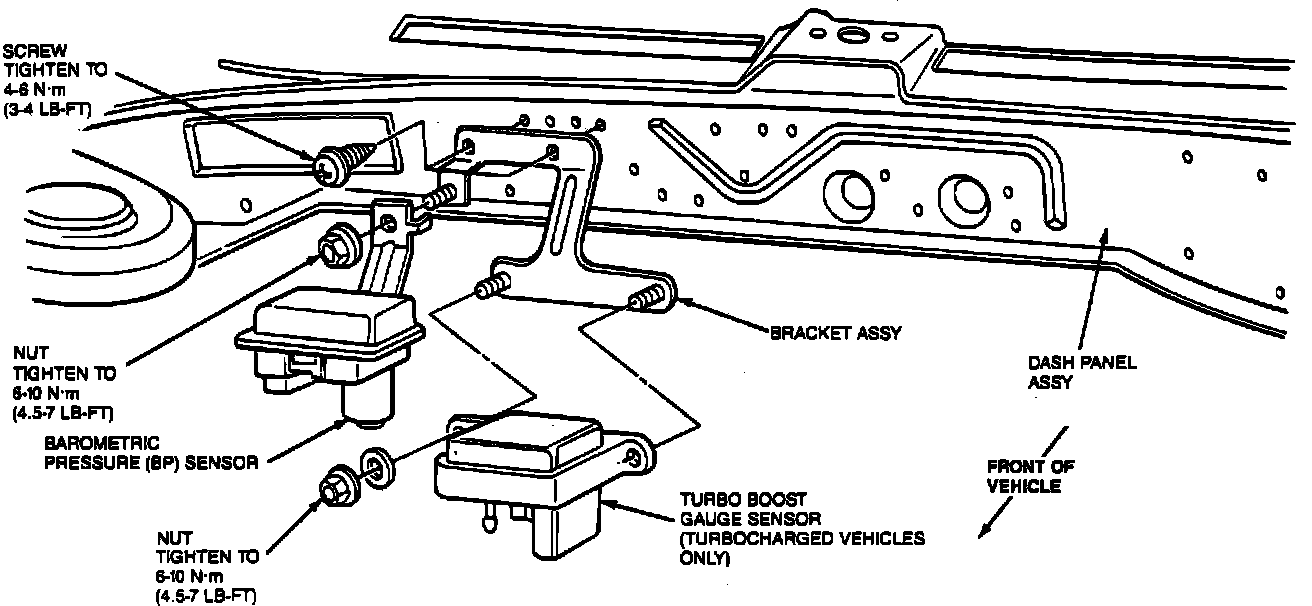

Component Location:
