Mercury
>>
1992
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Locations
Air Flow Meter/Sensor: Locations

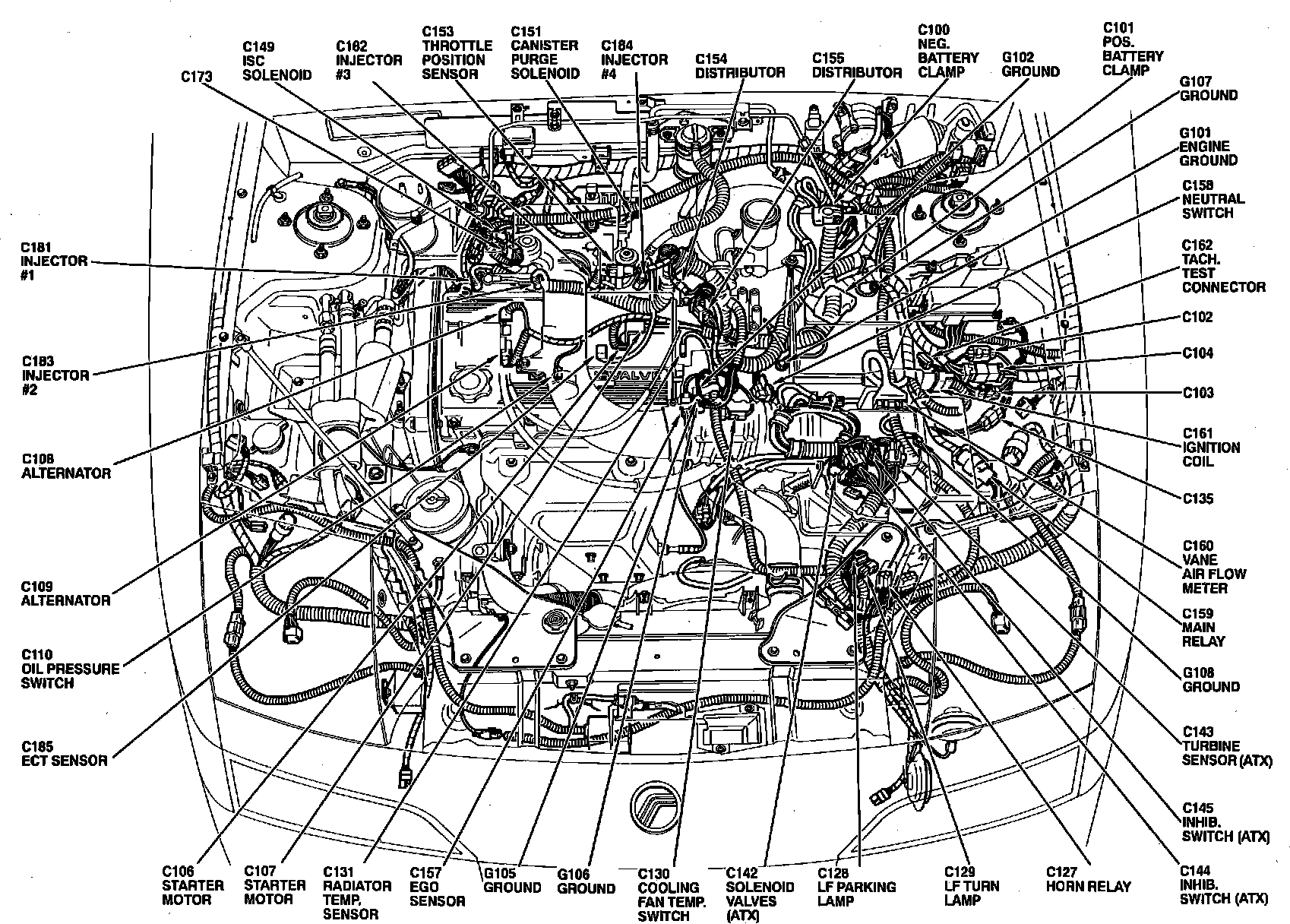

Engine Compartment Components.:
In Intake Plenum
Applicable to: 1991
Engine Compartment Components.:
In Intake Plenum
Applicable to: 1992
