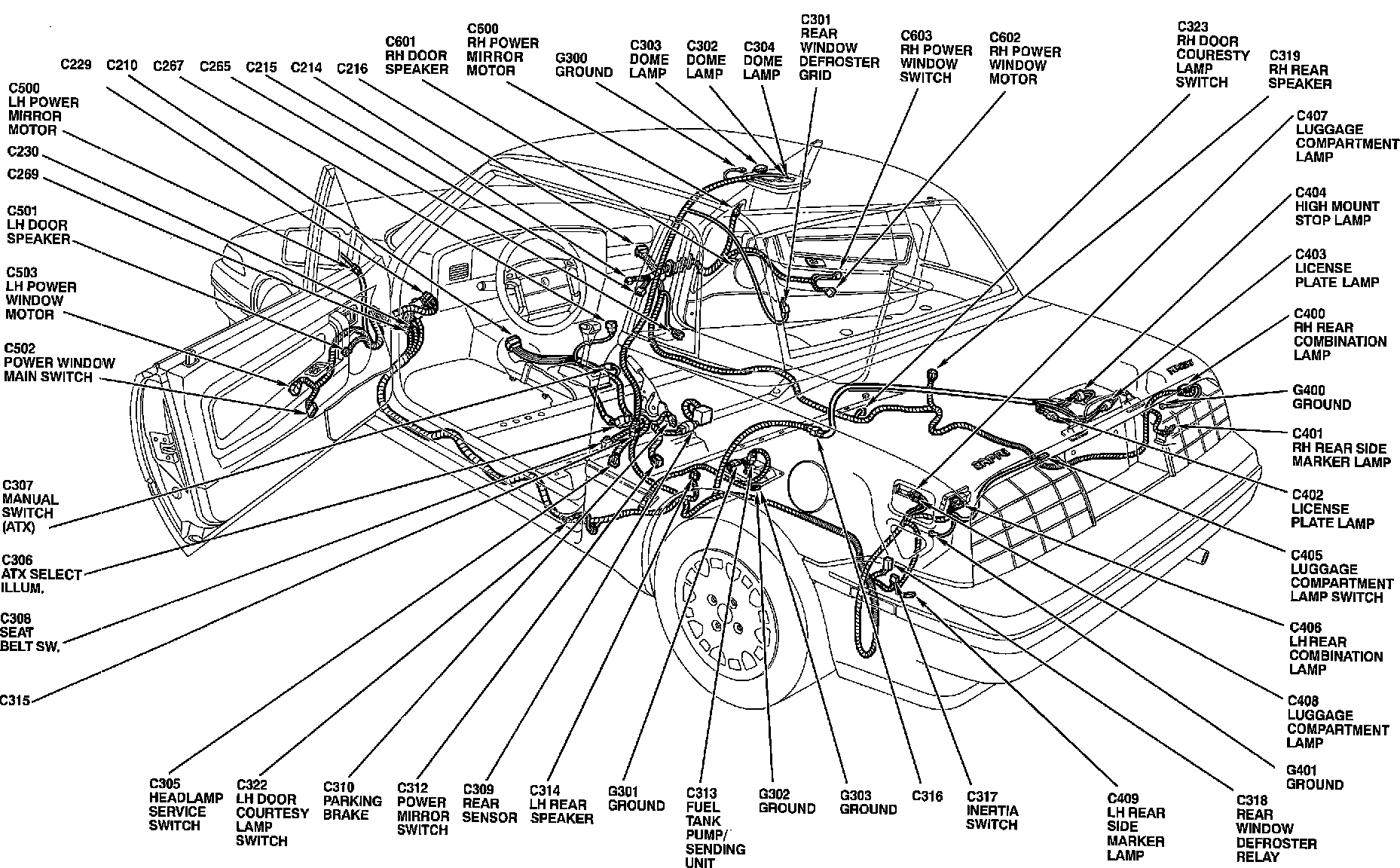

Full Body Views

Component Location:

ATX SELECT ILLUMINATION
COMBINATION LAMP
DOME LAMP
DOOR COURTESY LAMP SWITCH
DOOR SPEAKER
GROUND
FUEL TANK PUMP/SENDING UNIT
HEADLAMP SERVICE SWITCH
HIGH MOUNT STOP LAMP
INERTIA SWITCH
LICENSE PLATE LAMP
LUGGAGE COMPARTMENT LAMP
MANUAL SWITCH (ATX)
PARKING BRAKE
POWER MIRROR MOTOR
POWER WINDOW MOTOR
POWER WINDOW MAIN SWITCH
POWER WINDOW SWITCH
REAR SENSOR
REAR SIDE MARKER LAMP
REAR SPEAKER
REAR WINDOW DEFROSTER GRID
REAR WINDOW DEFROSTER RELAY
SEAT BELT SWITCH
