Convertible Top/Hardtop - Base Part Numbers

91ford24

Article No. 91-1-18-3
09/05/91


CONVERTIBLE TOP AND HARDTOP - BASE PART NUMBER INFORMATION - CAPRI


LINCOLN-MERCURY: 1991-92 CAPRI


ISSUE: A complete listing of Capri convertible top and hardtop base part numbers and part names is available for service use.

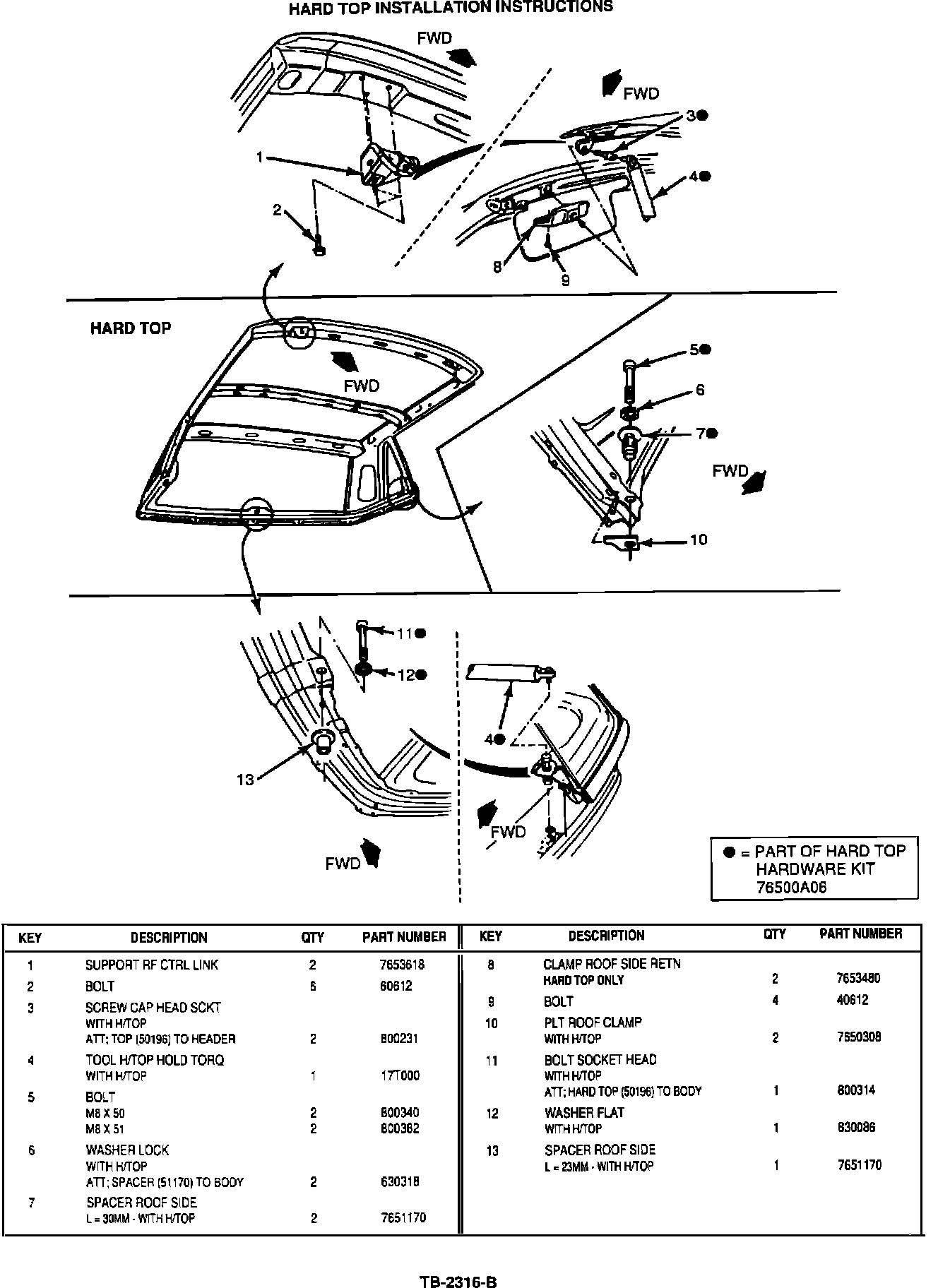

Figure 1:

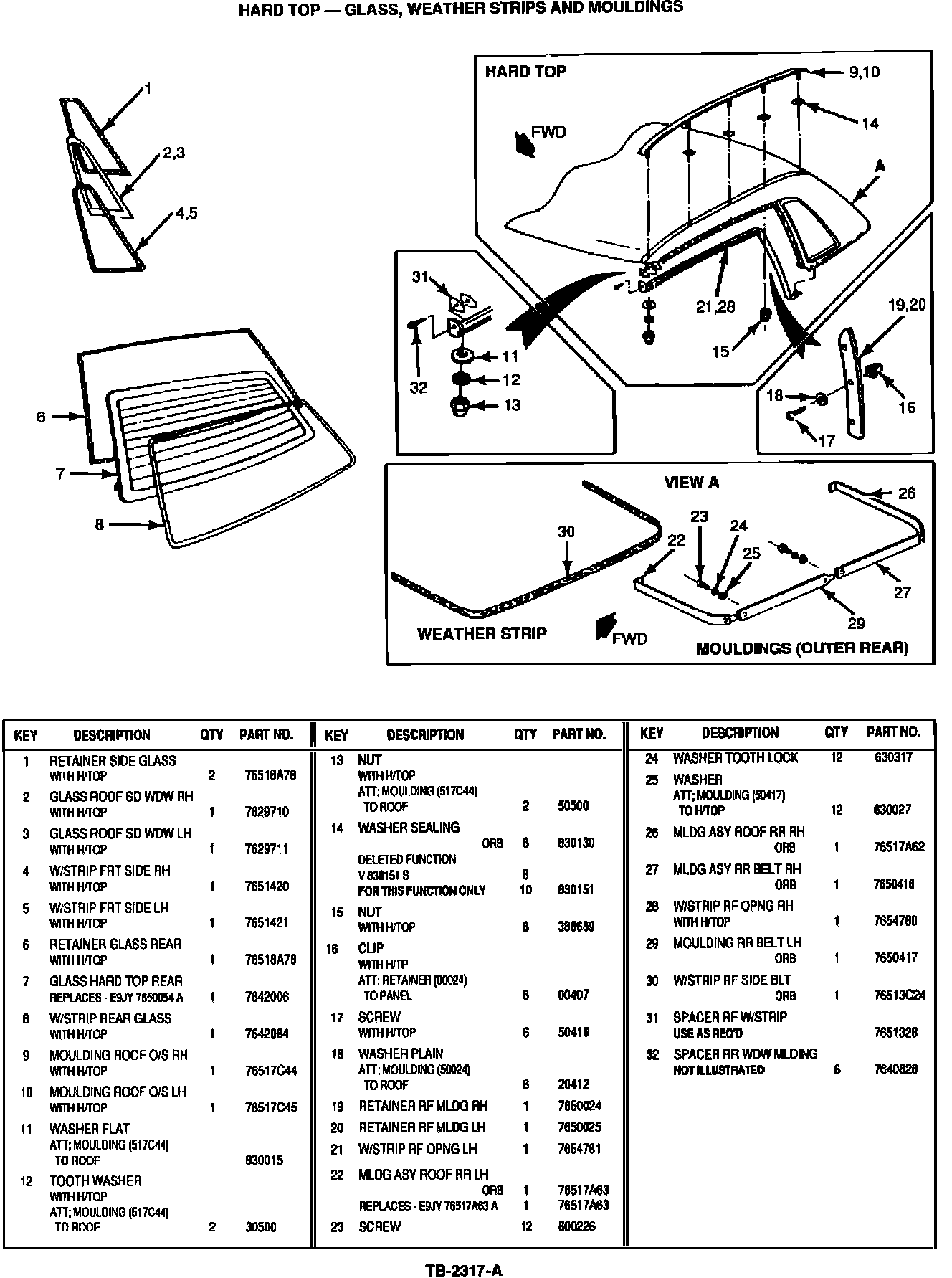

Figure 2:

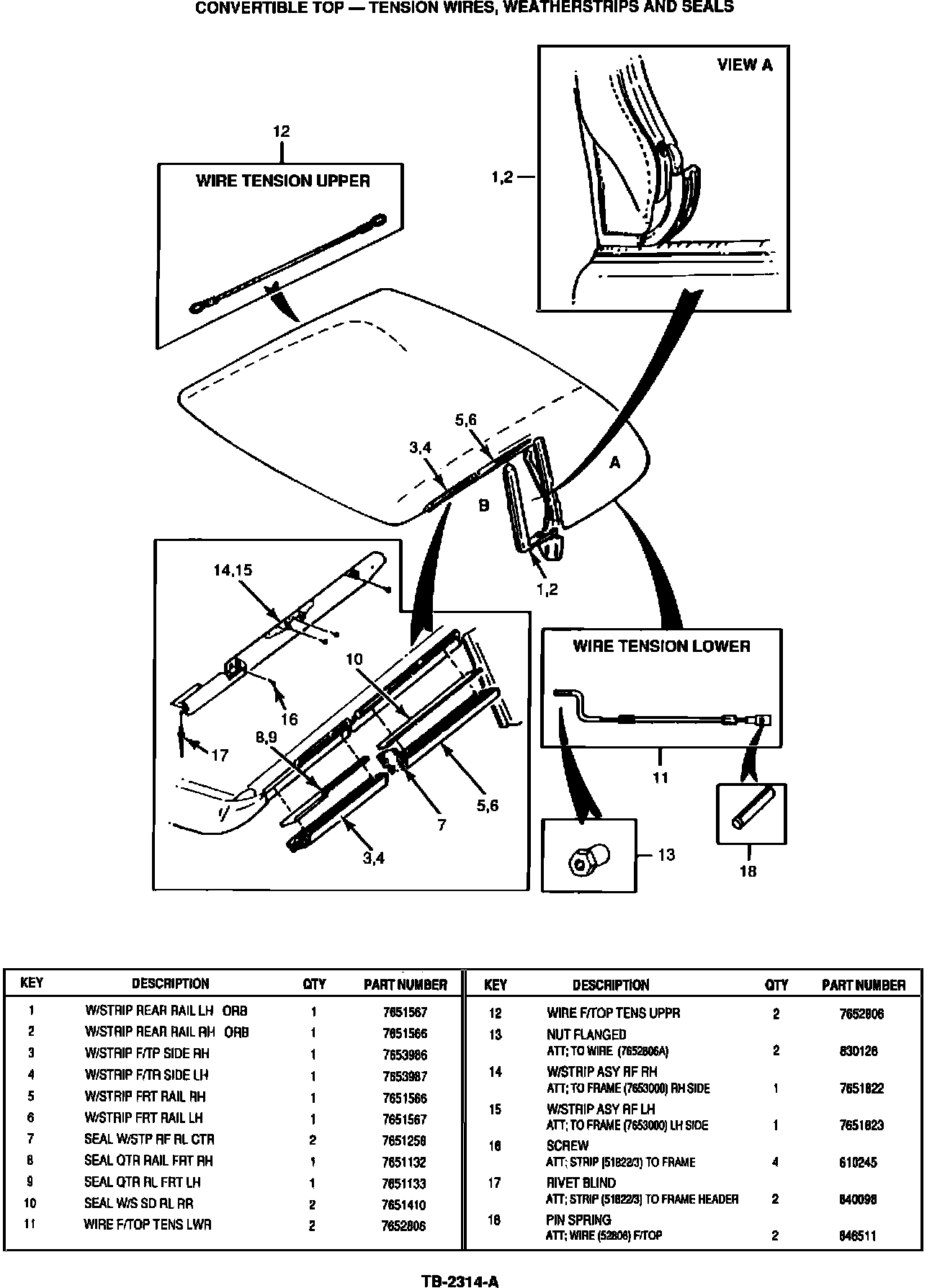

Figure 3:

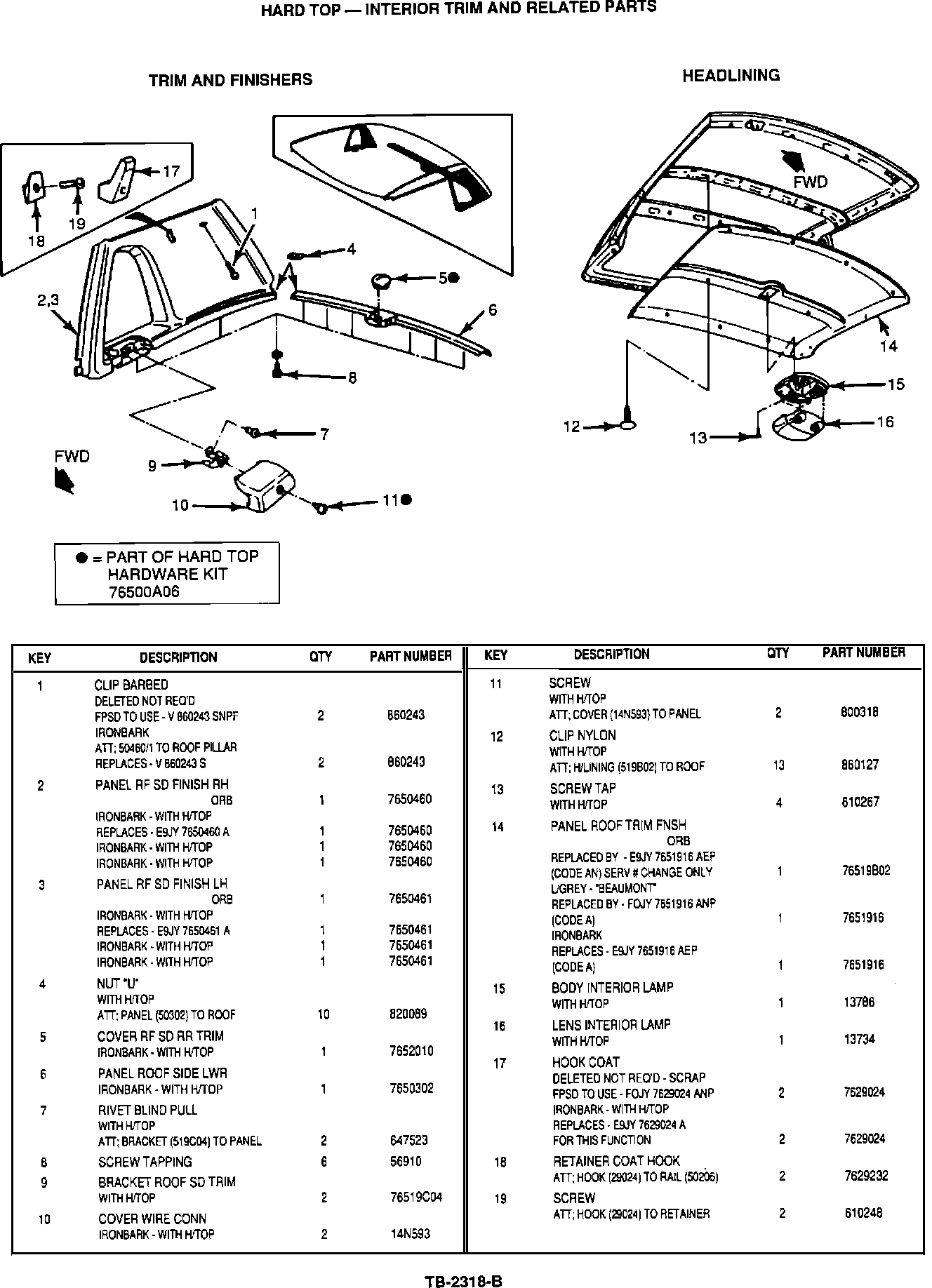

Figure 4:

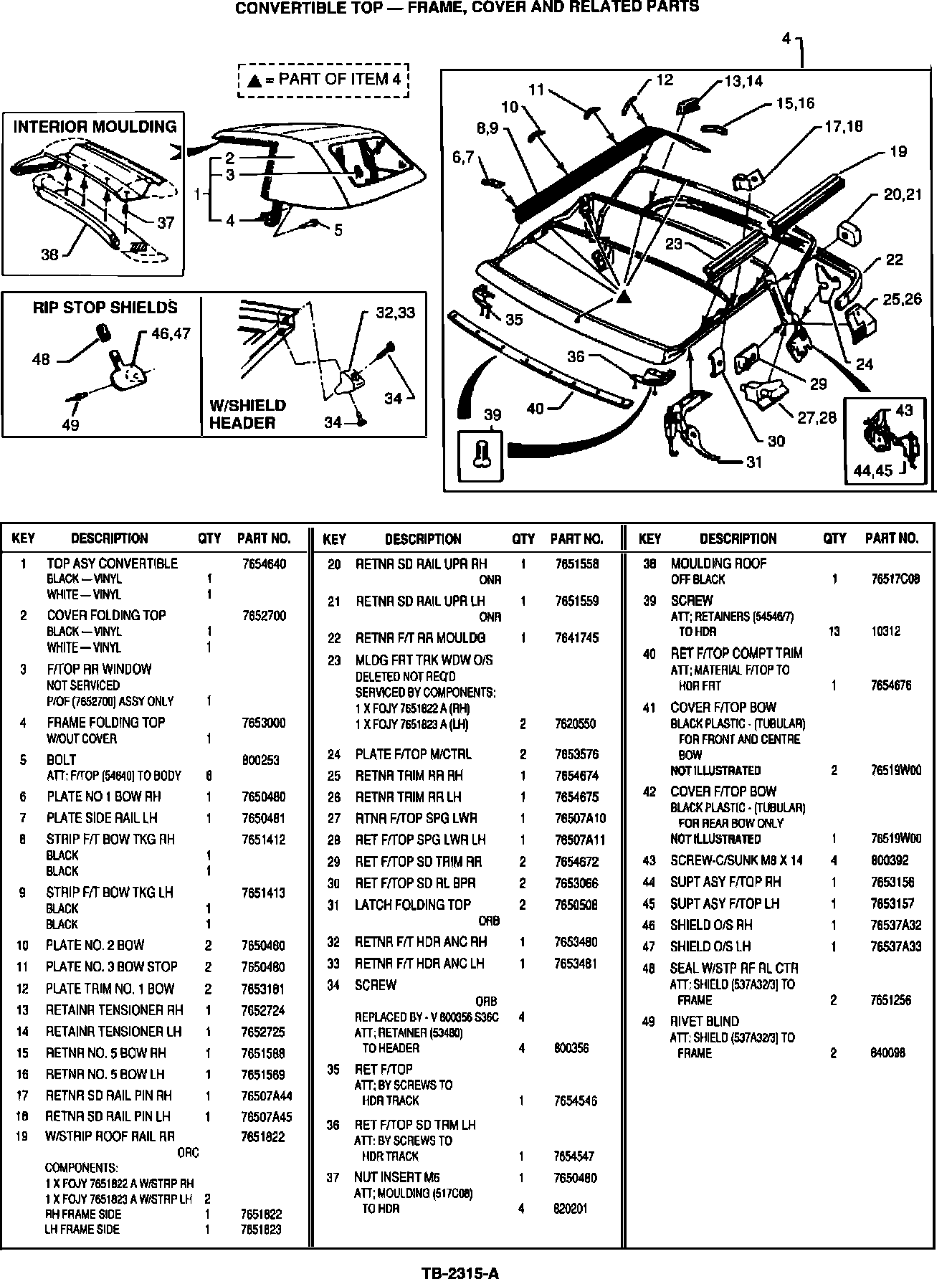

Figure 5:

ACTION: If service is required, refer to Figures 1 through 5 for base part numbers and part names.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 105000
