Mercury
>>
1992
>>
Capri L4-1597cc 1.6L DOHC Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
F - Lamp Flashes 5 Times
>>
Tests F9 - F10
Tests F9 - F10

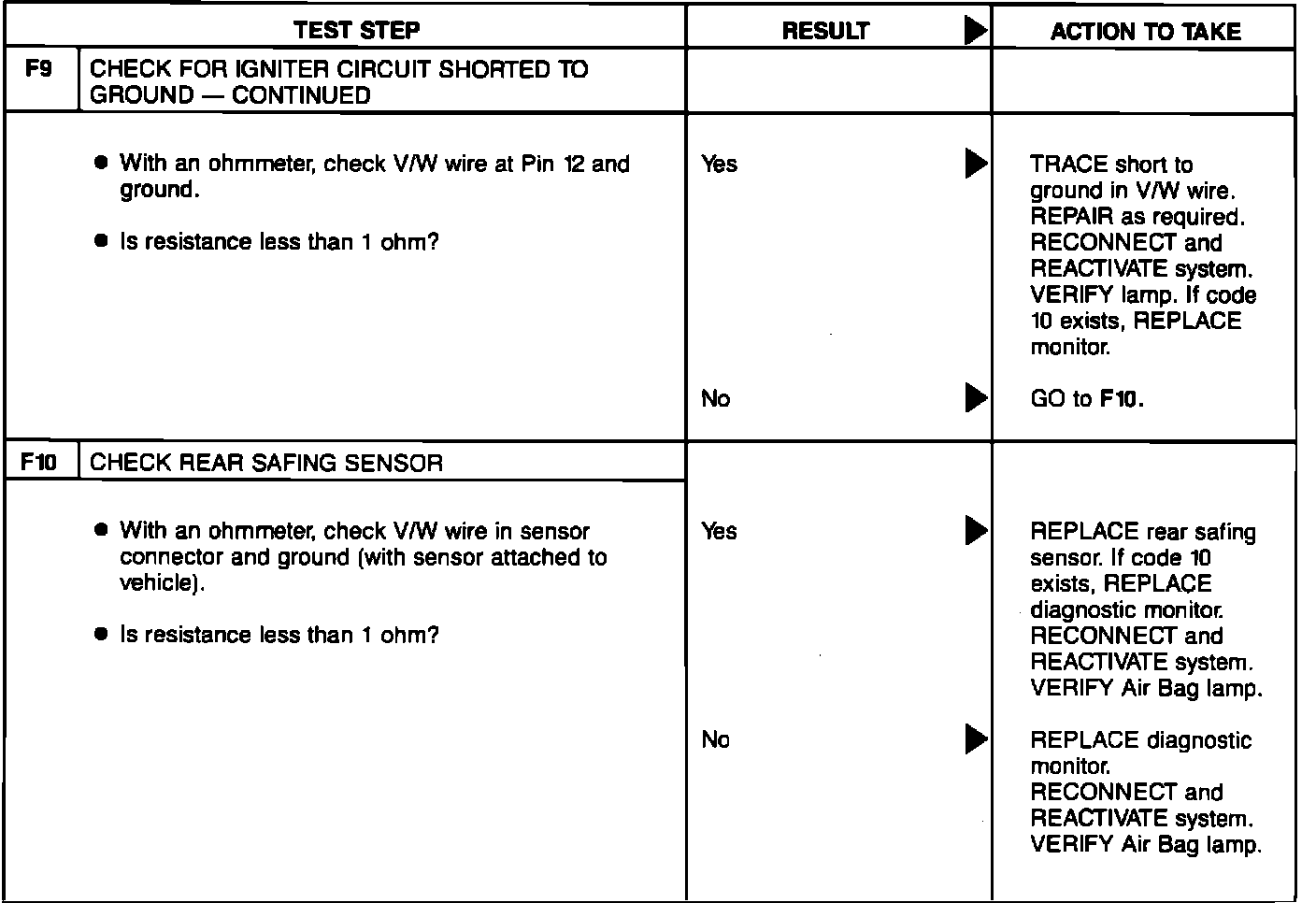

Fig. 45 Lamp Flashes 5 Times (Forward Crash Sensor Or Igniter Circuit Shorted To Ground, Part 4 Of 4):
