Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Testing and Inspection >> Pinpoint Tests >> LP6 - Pressure Switch Function

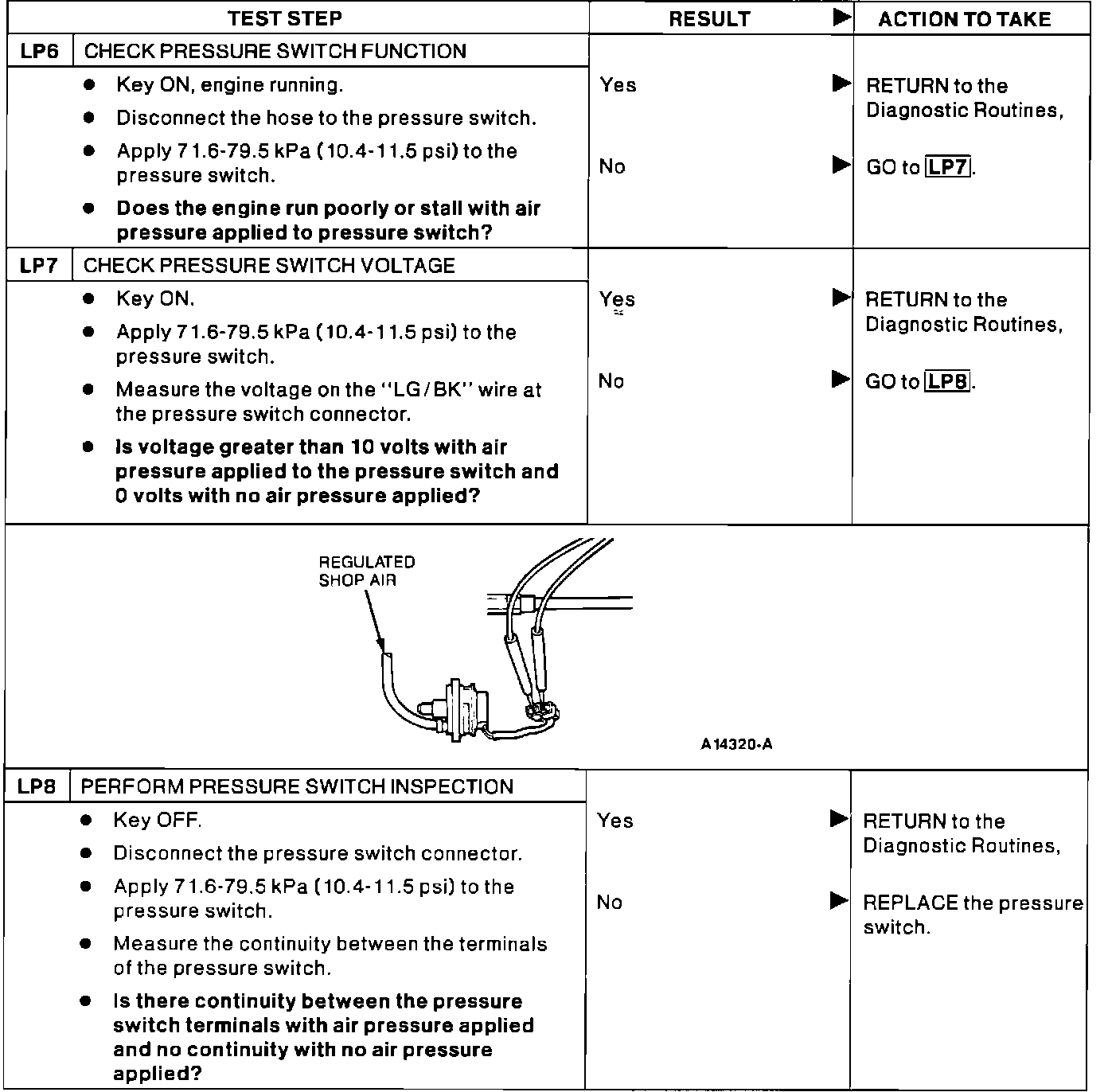

LP6 - Pressure Switch Function

Pinpoint Test LP Steps 6 - 8:
