Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Testing and Inspection >> Pinpoint Tests >> LP2 - Boost Actuator Function

LP2 - Boost Actuator Function

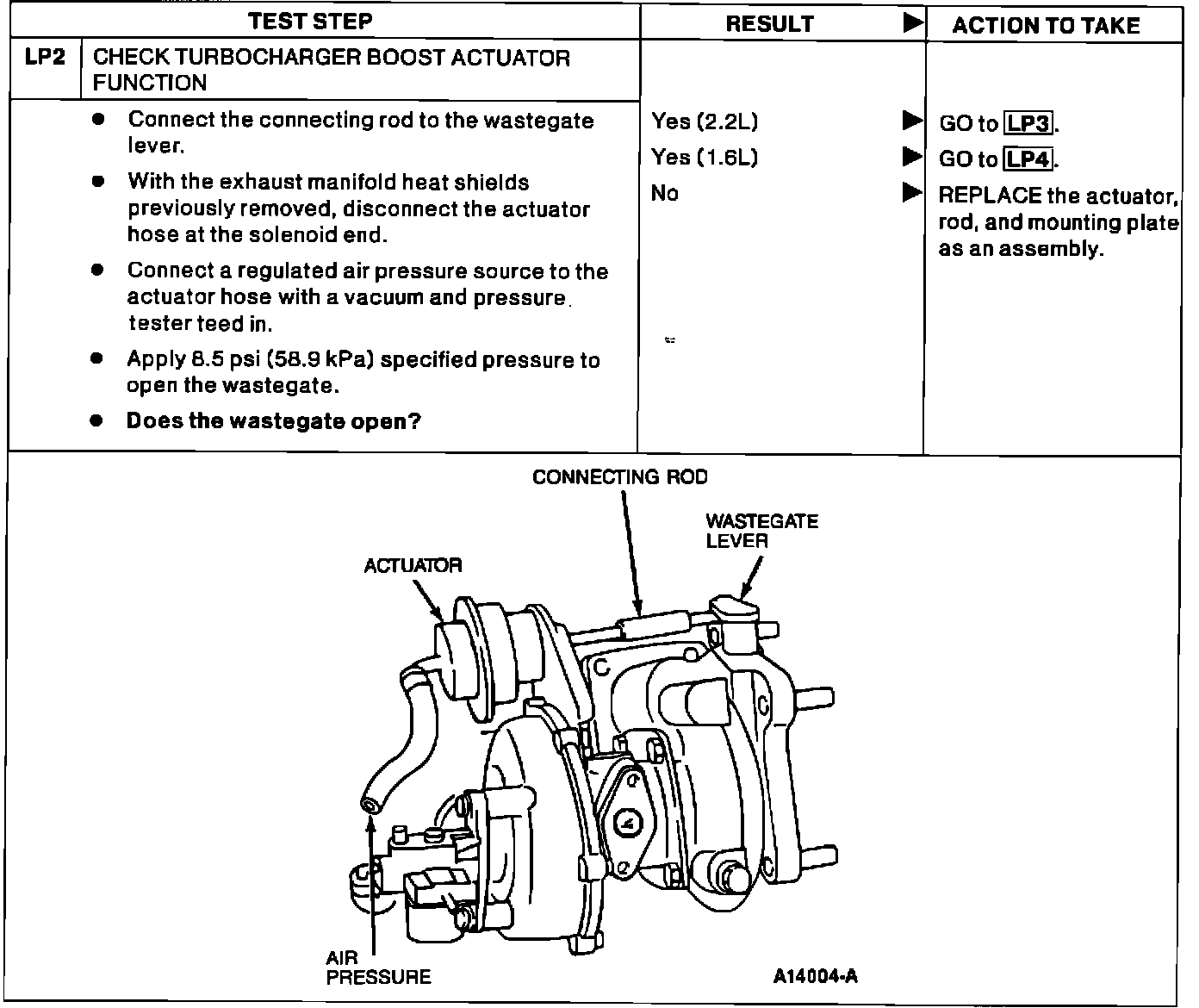

Pinpoint Test LP Step 2:
