Home >> Mercury >> 1992 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Fuel Delivery Diagnosis >> FB - Low Fuel Pressure Test >> FB4 - Fuel Pressure Regulator Leak Down Check

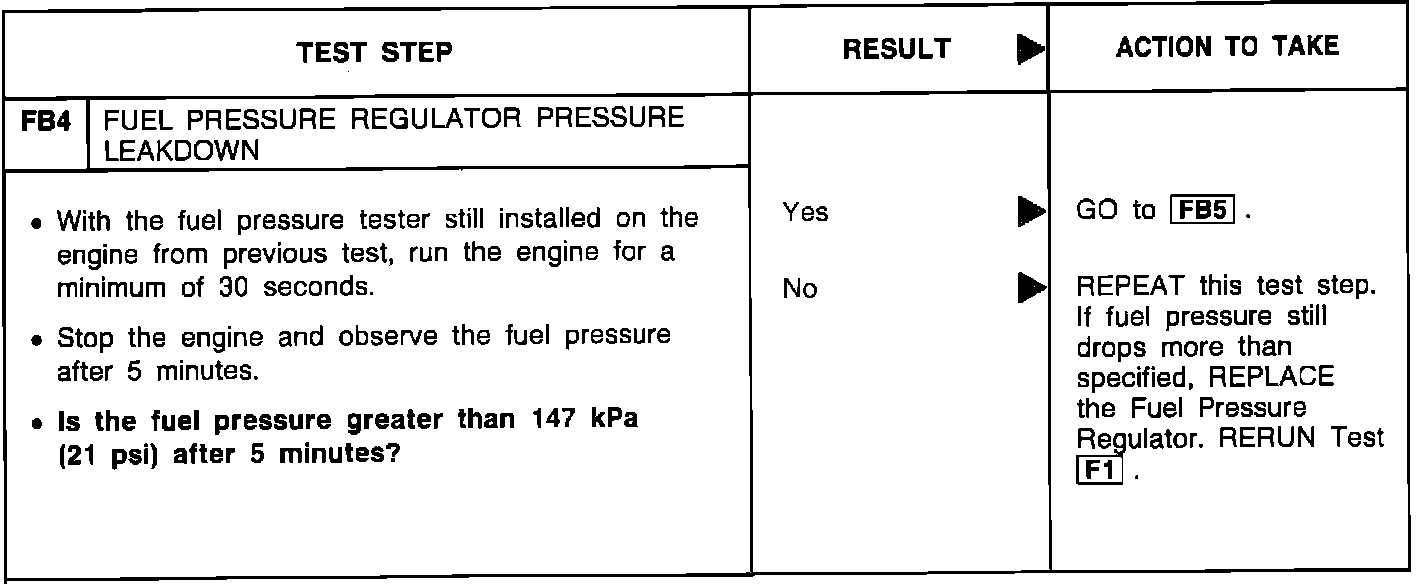

FB4 - Fuel Pressure Regulator Leak Down Check

FB4 - Fuel Pressure Regulator Pressure Leak Down:
