Capri L4-1597cc 1.6L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

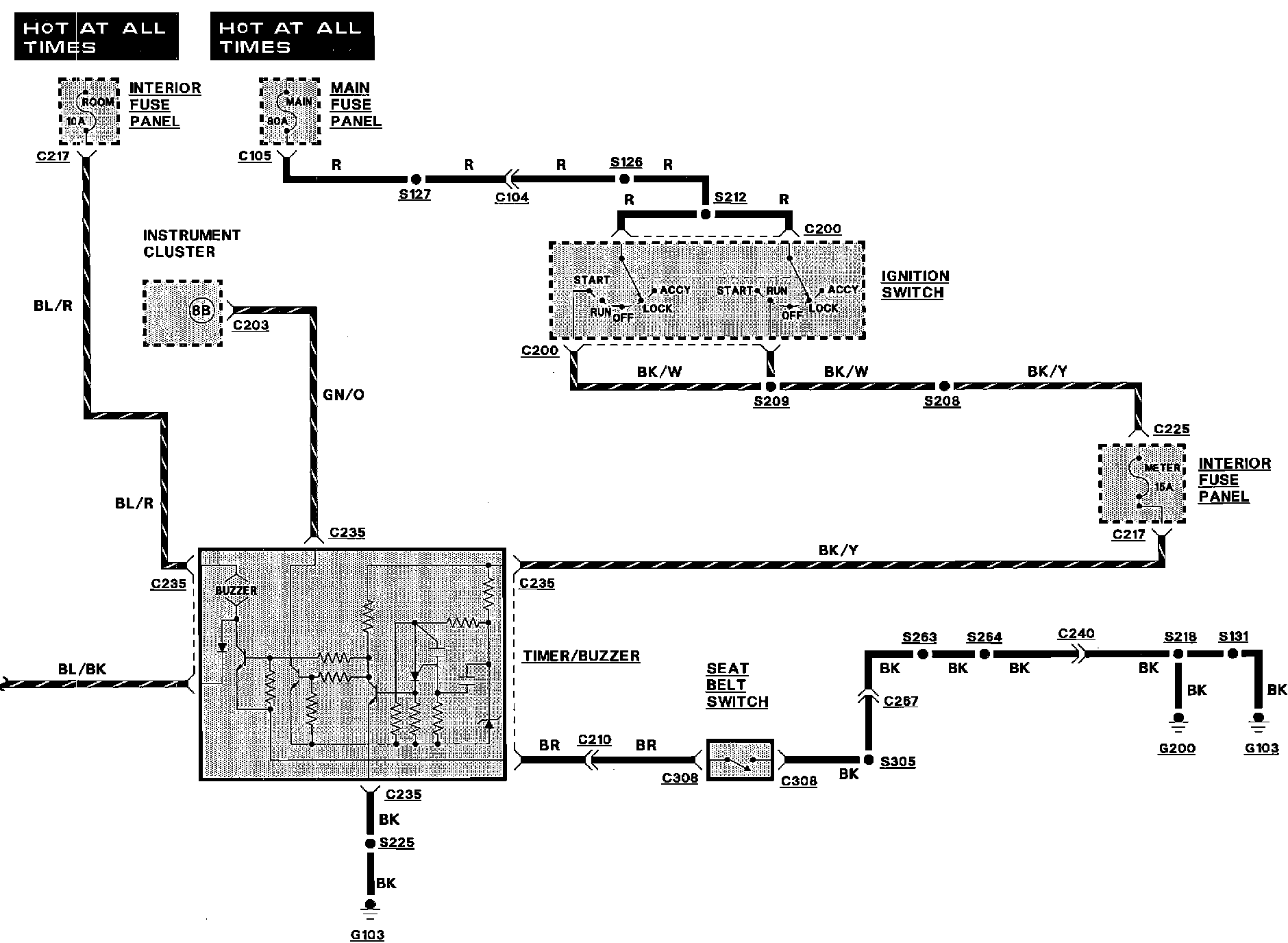

Warning And Chime (Timer/Buzzer):
Warning And Chime (Timer/Buzzer):
