Ignition Control Module: Diagrams

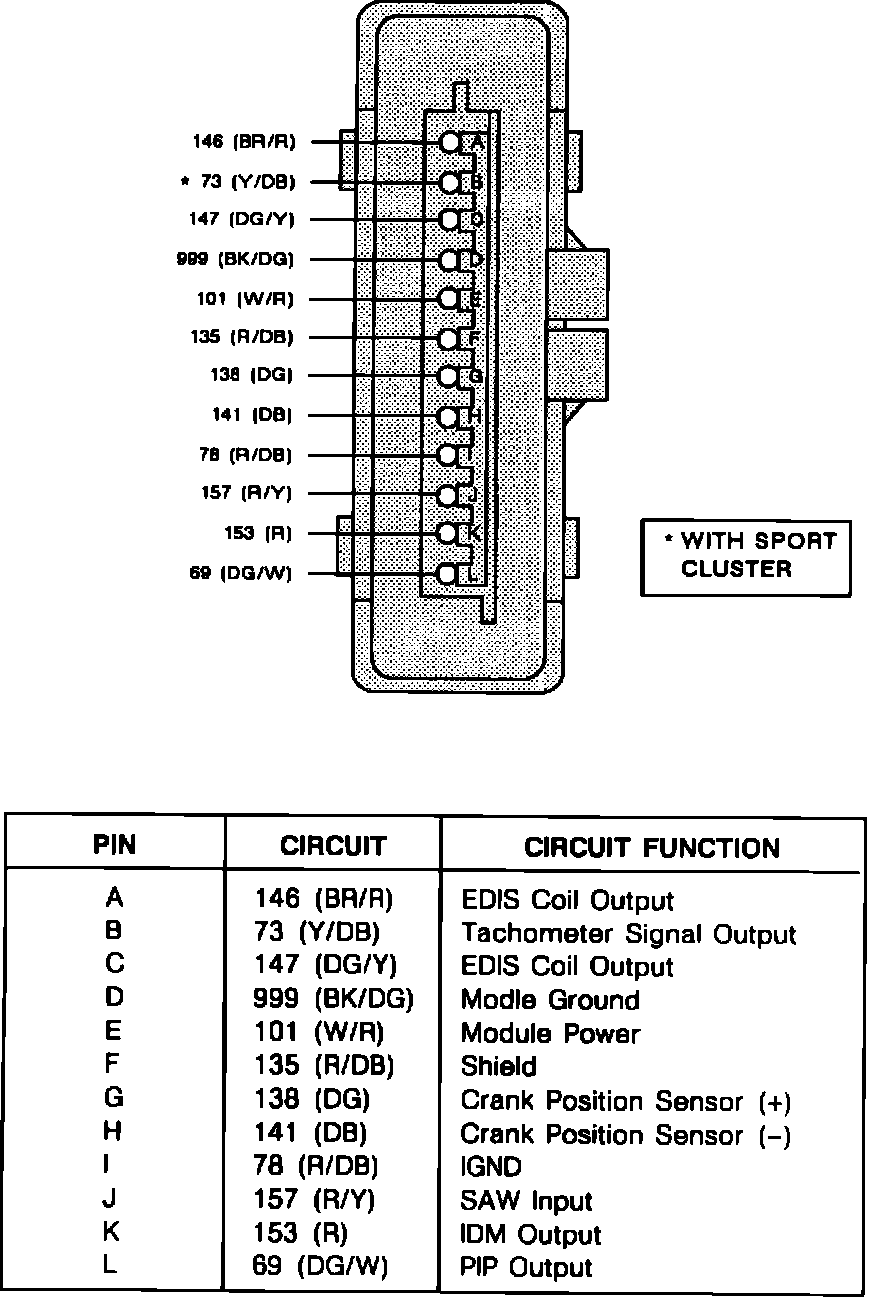

Electronic Distributorless Ignition System (EDIS) Module Connector:
