Home >> Mercury >> 1991 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Flow of Diagnosis

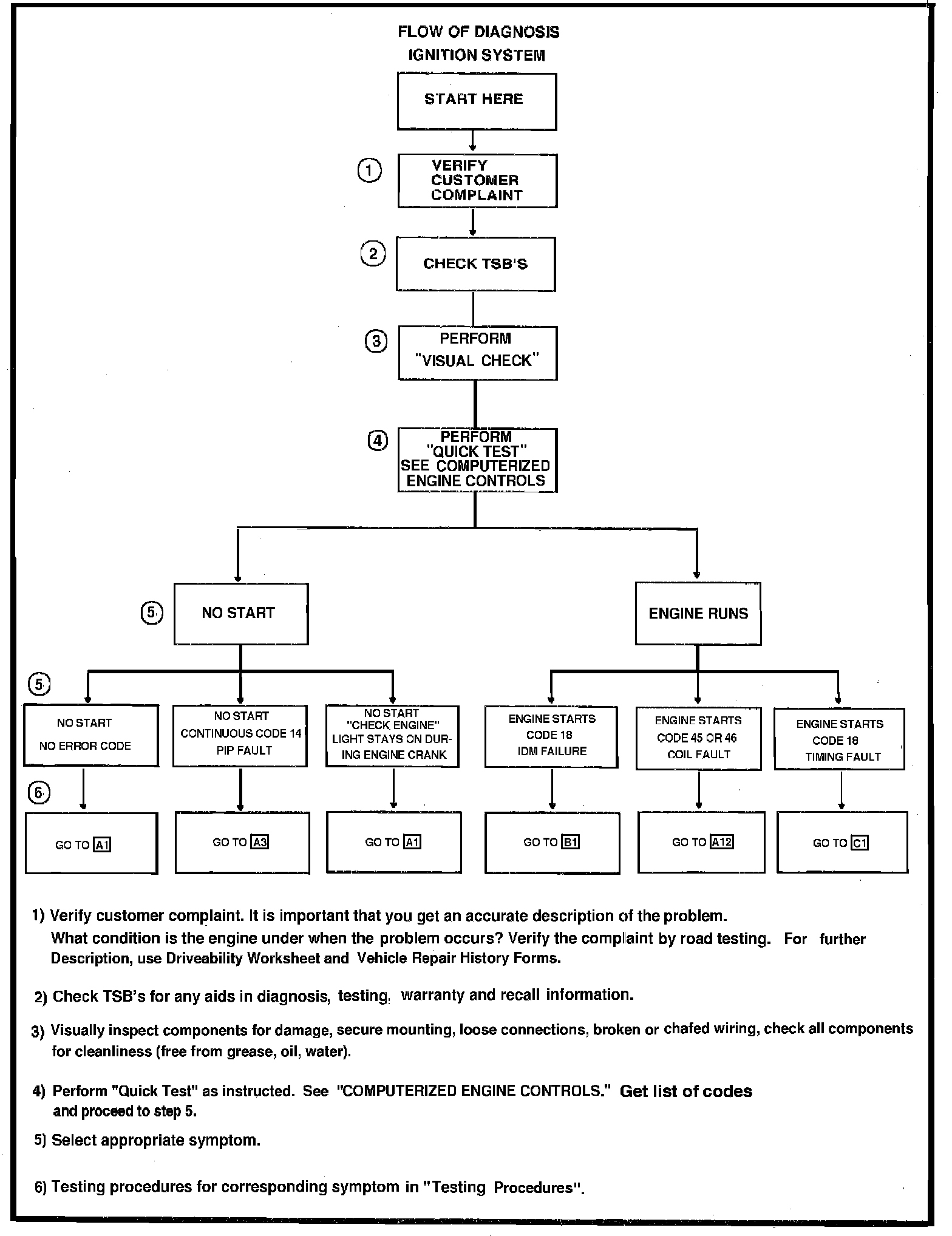

Flow of Diagnosis

Flow Of Diagnosis:





FLOW CHART

Driveability Worksheet:




Driveability Worksheet:





DRIVEABILITY WORKSHEET

Vehicle Repair History:




Vehicle Repair History:





VEHICLE REPAIR HISTORY
