Home >> Mercury >> 1991 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Testing and Inspection >> Component Tests and General Diagnostics >> Purge Line Blockage Check

Purge Line Blockage Check

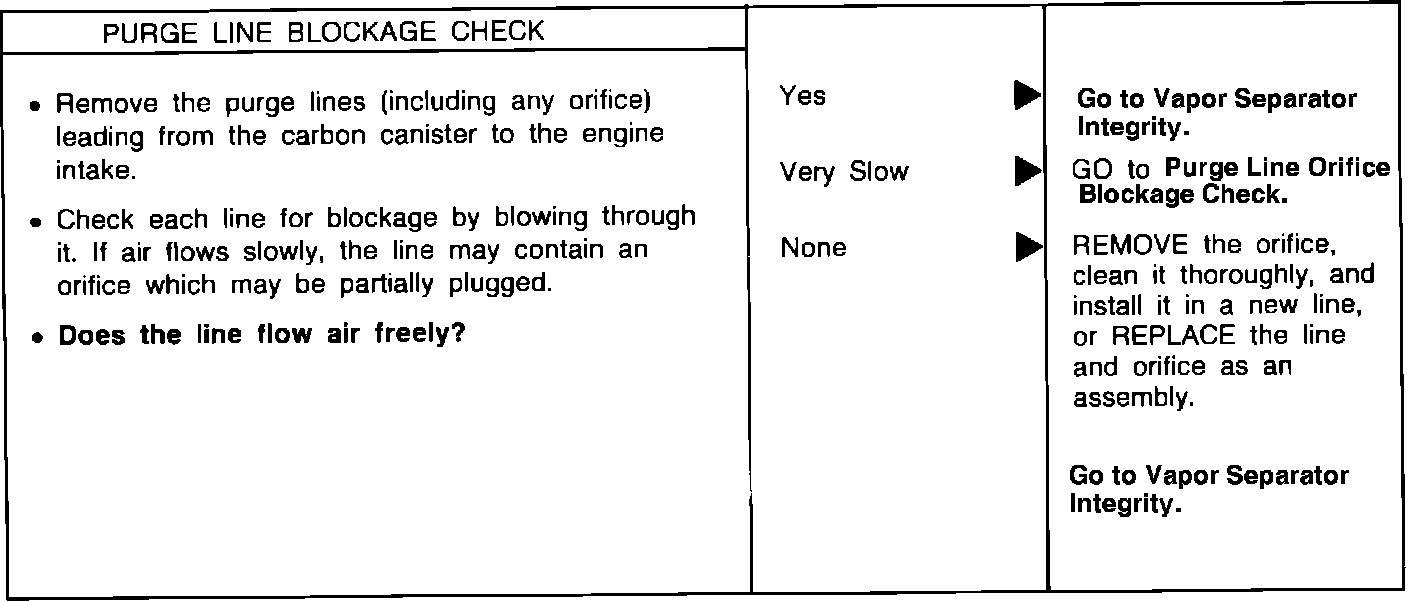

Purge Line Blockage Check:

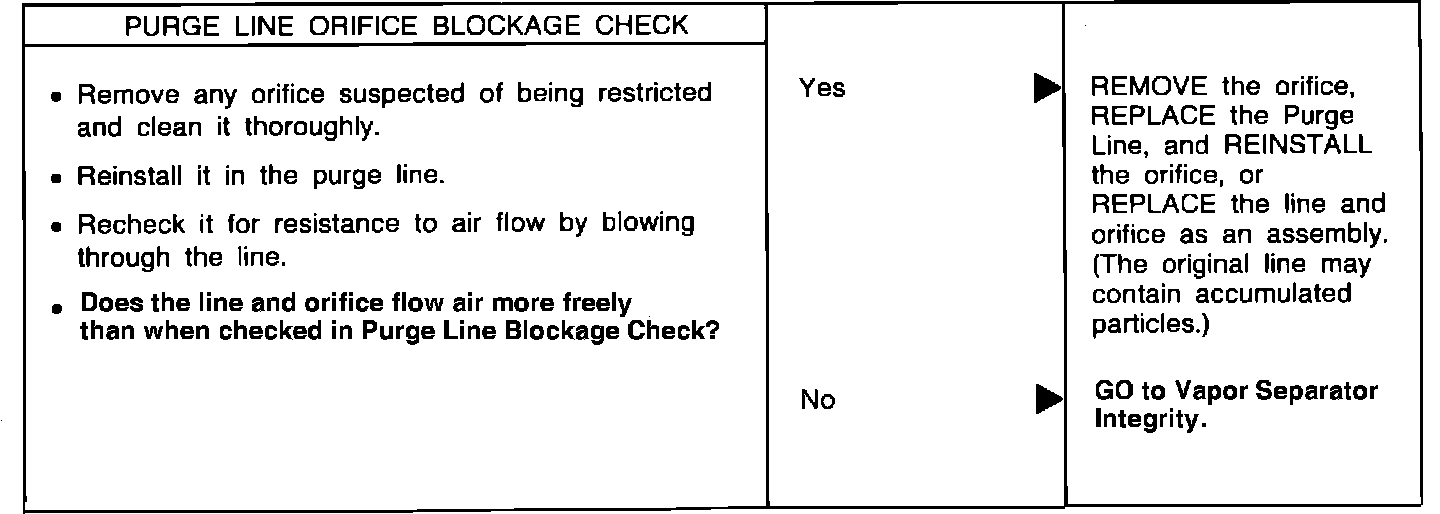

Purge Line Orifice Blockage Check:
