PC - Spark Timing Check - EDIS
>>
PC6 - Check Saw Circuit For Short to VREF, Ground, and PIP
PC6 - Check Saw Circuit For Short to VREF, Ground, and PIP
*** Updated by TSB #9111B5 June 14, 1991

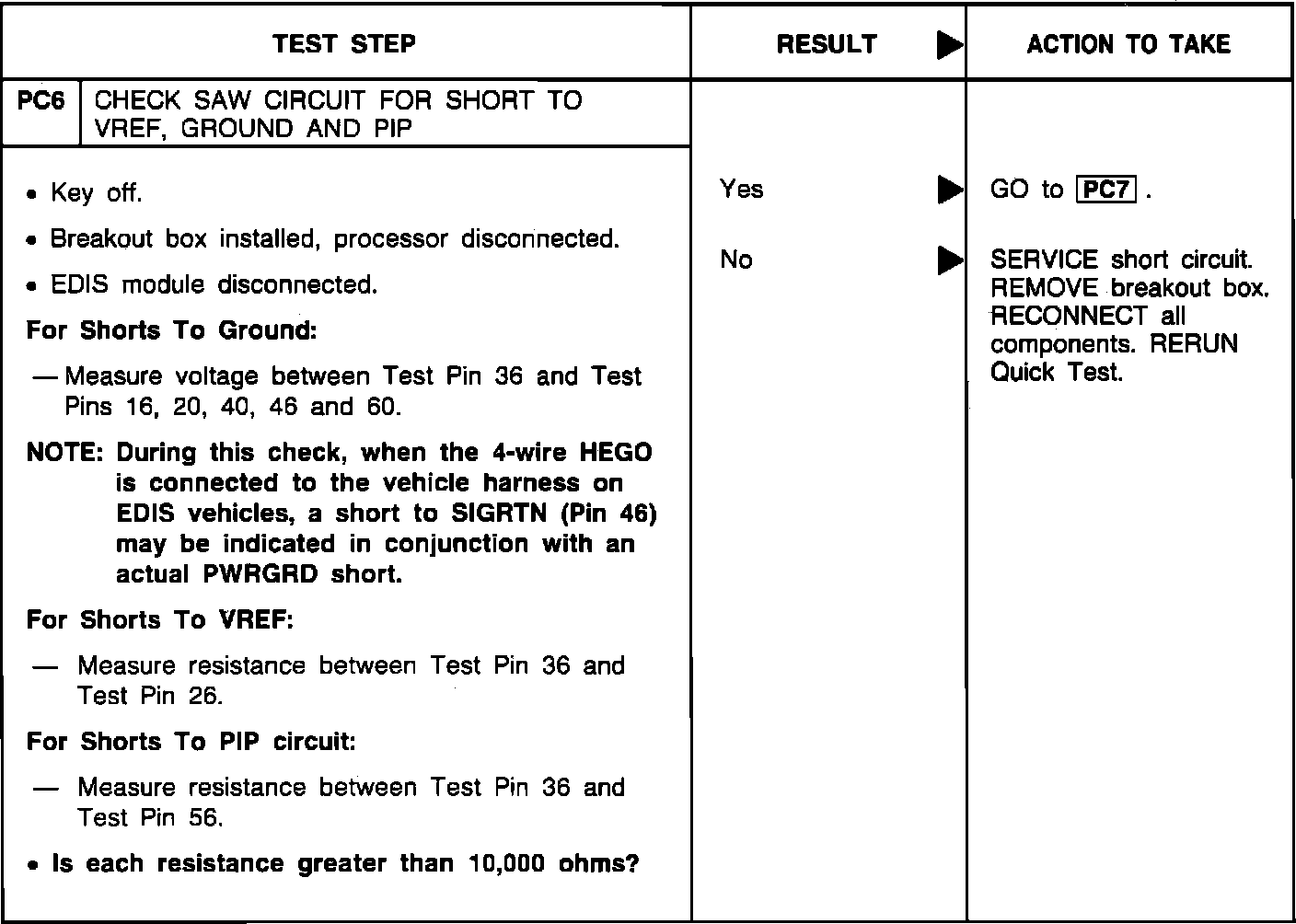

Pinpoint Test PC6:
