PC - Spark Timing Check - EDIS
>>
PC4 - Check Saw Circuit Continuity
PC4 - Check Saw Circuit Continuity

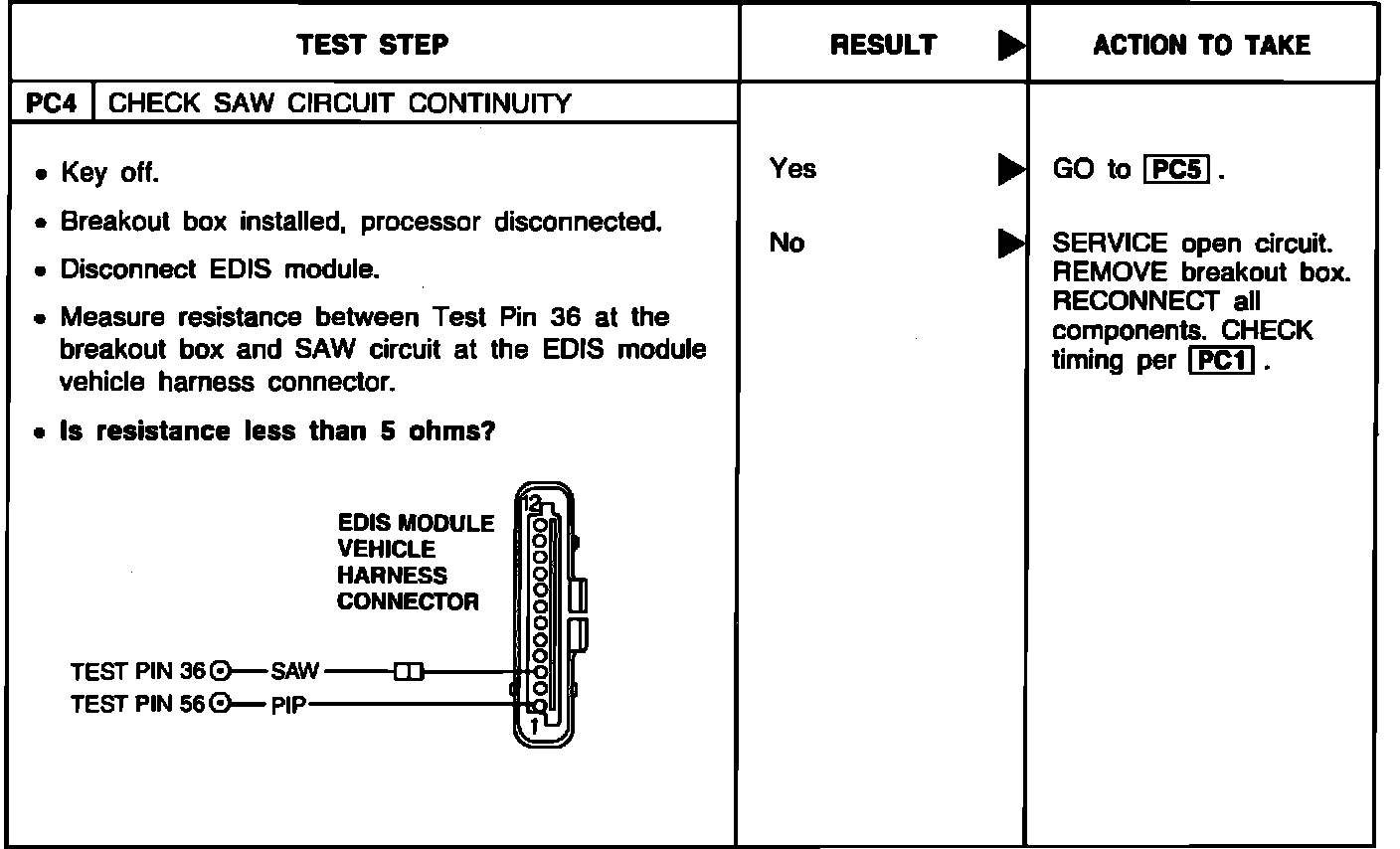

Pinpoint Test PC4:
