PC - Spark Timing Check - EDIS
>>
PC1 - Check Computer Spark Timing
PC1 - Check Computer Spark Timing

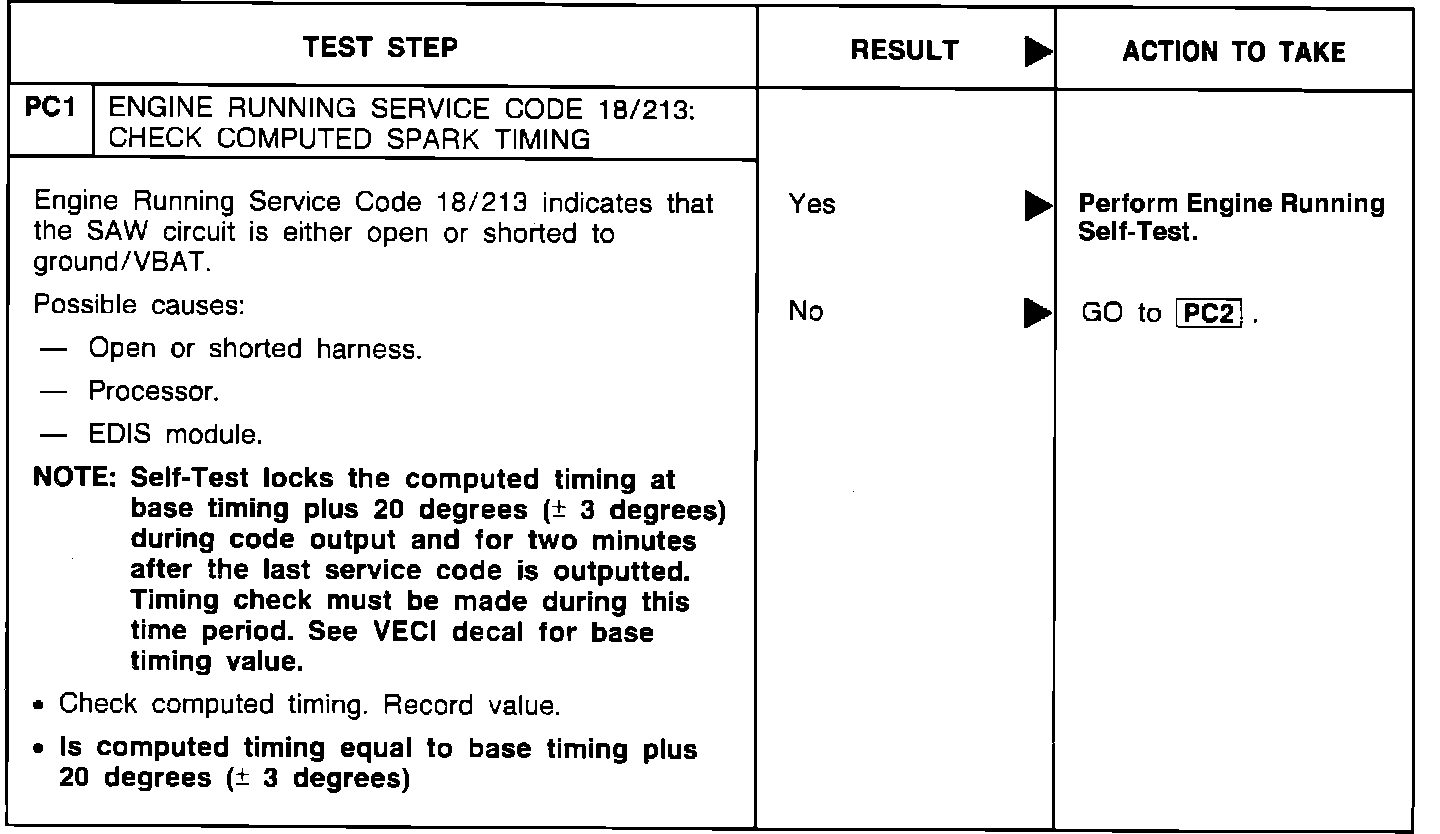

Pinpoint Test PC1:
