Home
>>
Mercury
>>
1991
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
NC - EDIS Ignition Diagnostic Monitor
>>
NC10 - Check Processor and Harness Connectors
NC10 - Check Processor and Harness Connectors
*** Updated by TSB #9111B5 June 14, 1991

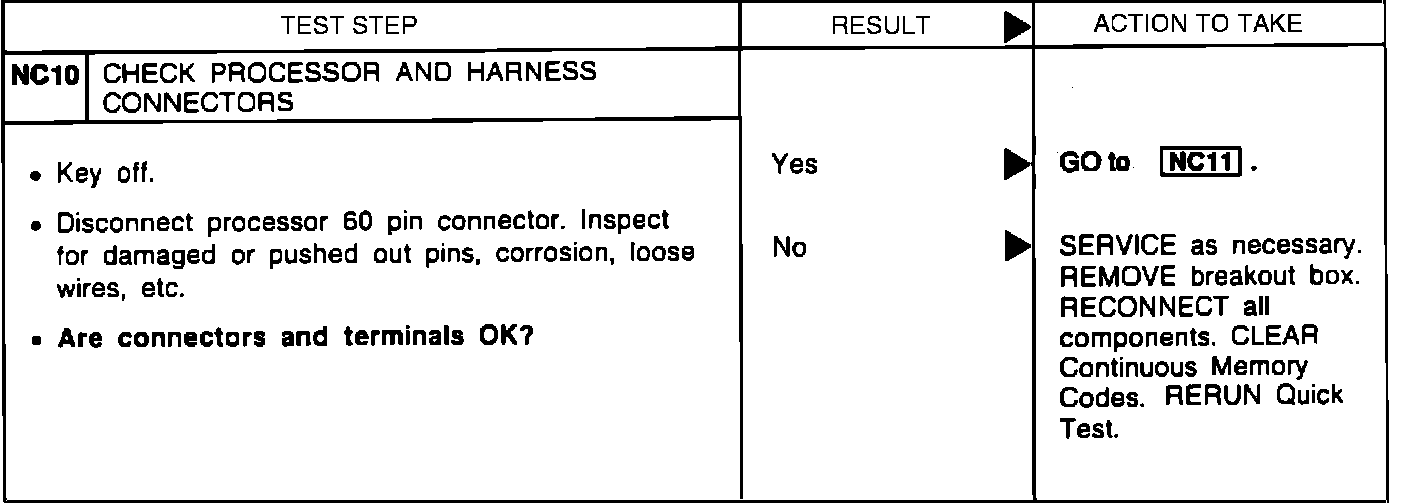

Pinpoint Test NC10:
