Engine - Tappet Orientation Revision

Article No.
91-11B-13



June 14, 1991



^ SHOP MANUAL - 1991 (2ND PRINTING) - PAGE 03-01B-49 - TAPPET ORIENTATION INFORMATION REVISED

^ SHOP MANUAL - 1991 (EARLY PRINTING) - PAGE 03-01B-44 - TAPPET ORIENTATION INFORMATION REVISED



FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER



ISSUE:
Tappet Orientation information on Page 03-01B-44 of the 1991 Escort/Tracer Shop Manual (Early Printing) and 03-01B-49 of the 1991 Escort/Tracer Shop Manual (2nd Printing) was incorrect.

ACTION:
Refer to the pages in this TSB article for the revised information.



OTHER APPLICABLE ARTICLES:
89-25A-11

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
490000

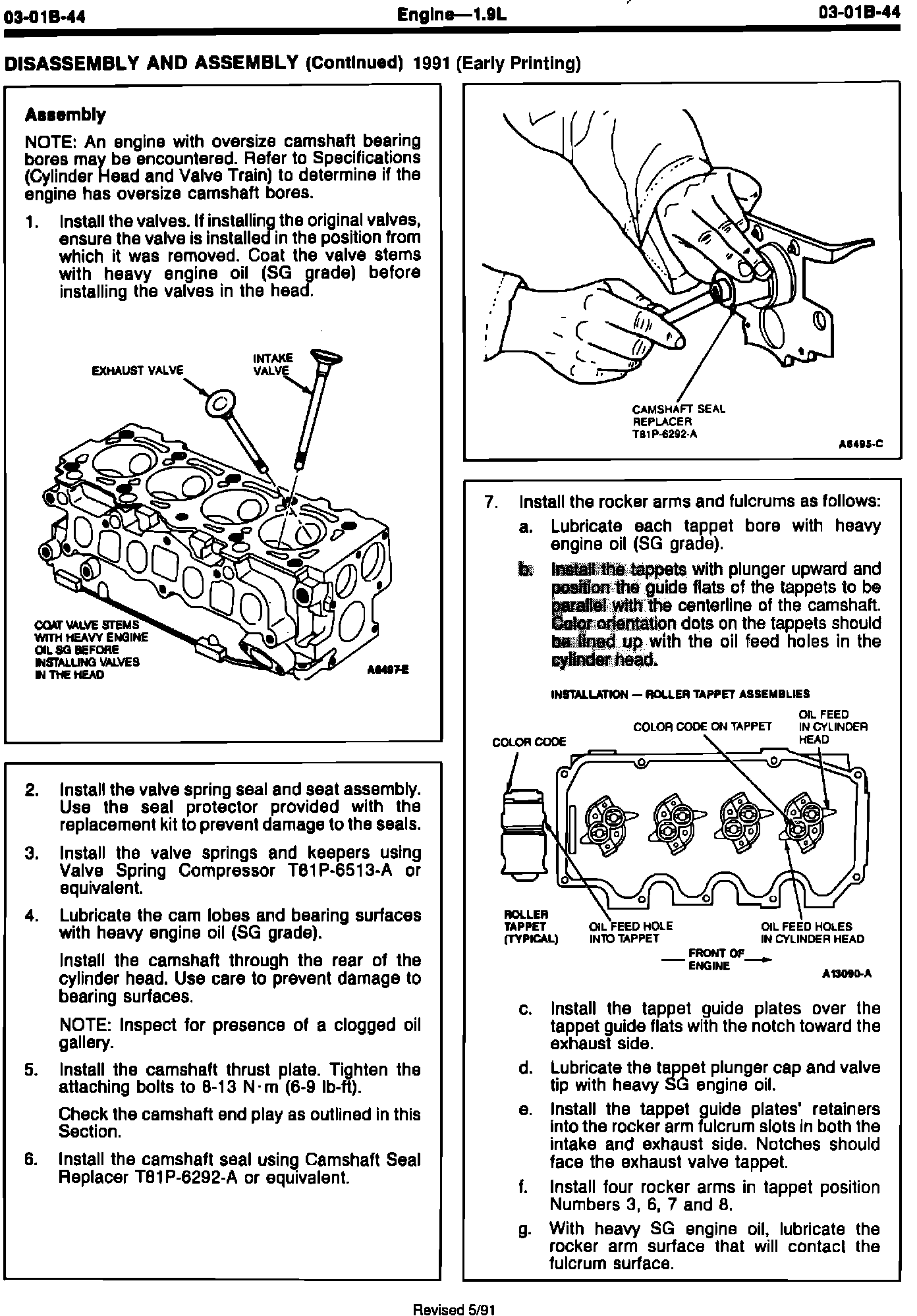

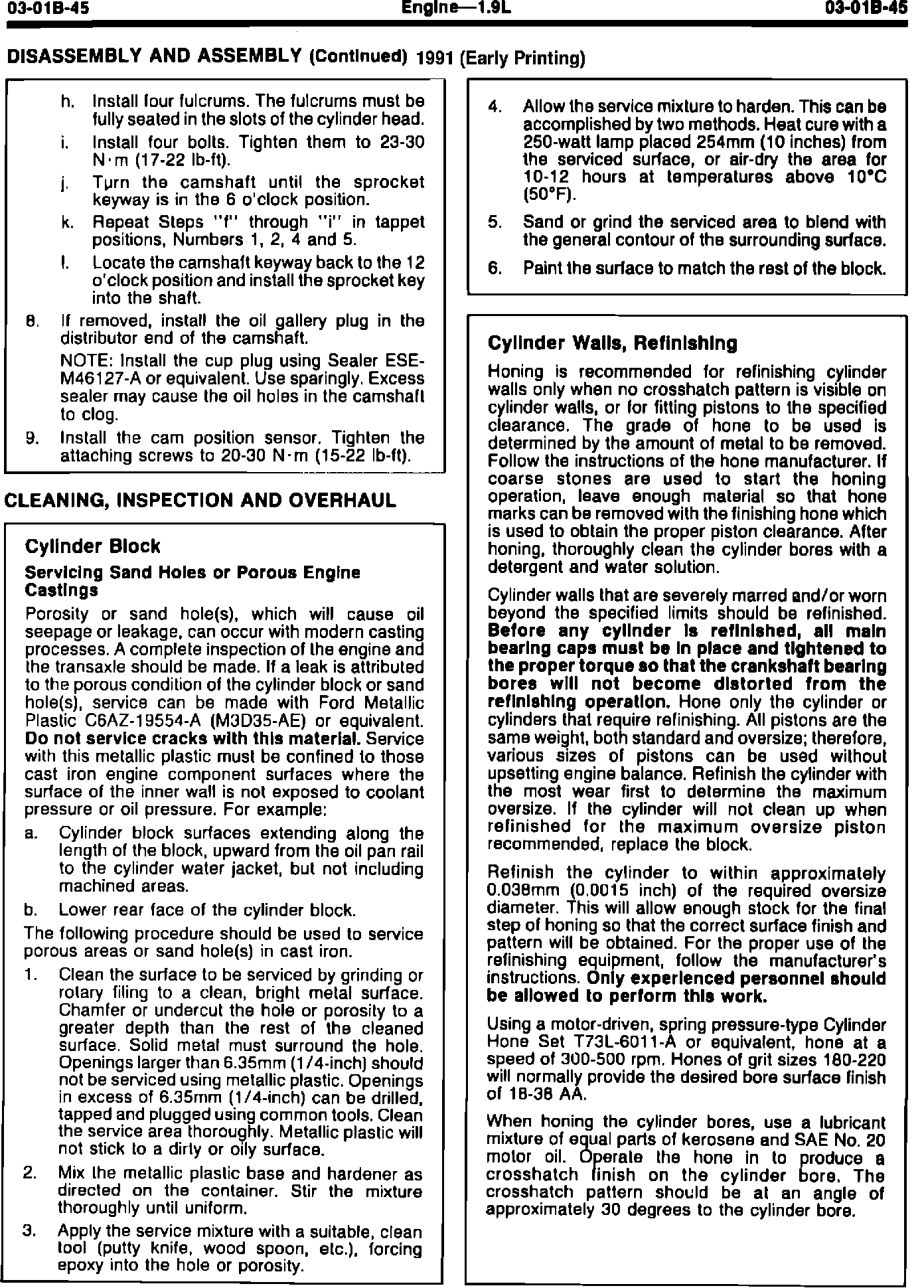

PAGE 03-01B-44 DISASSEMBLY AND ASSEMBLY 91 EARLY PRINTING

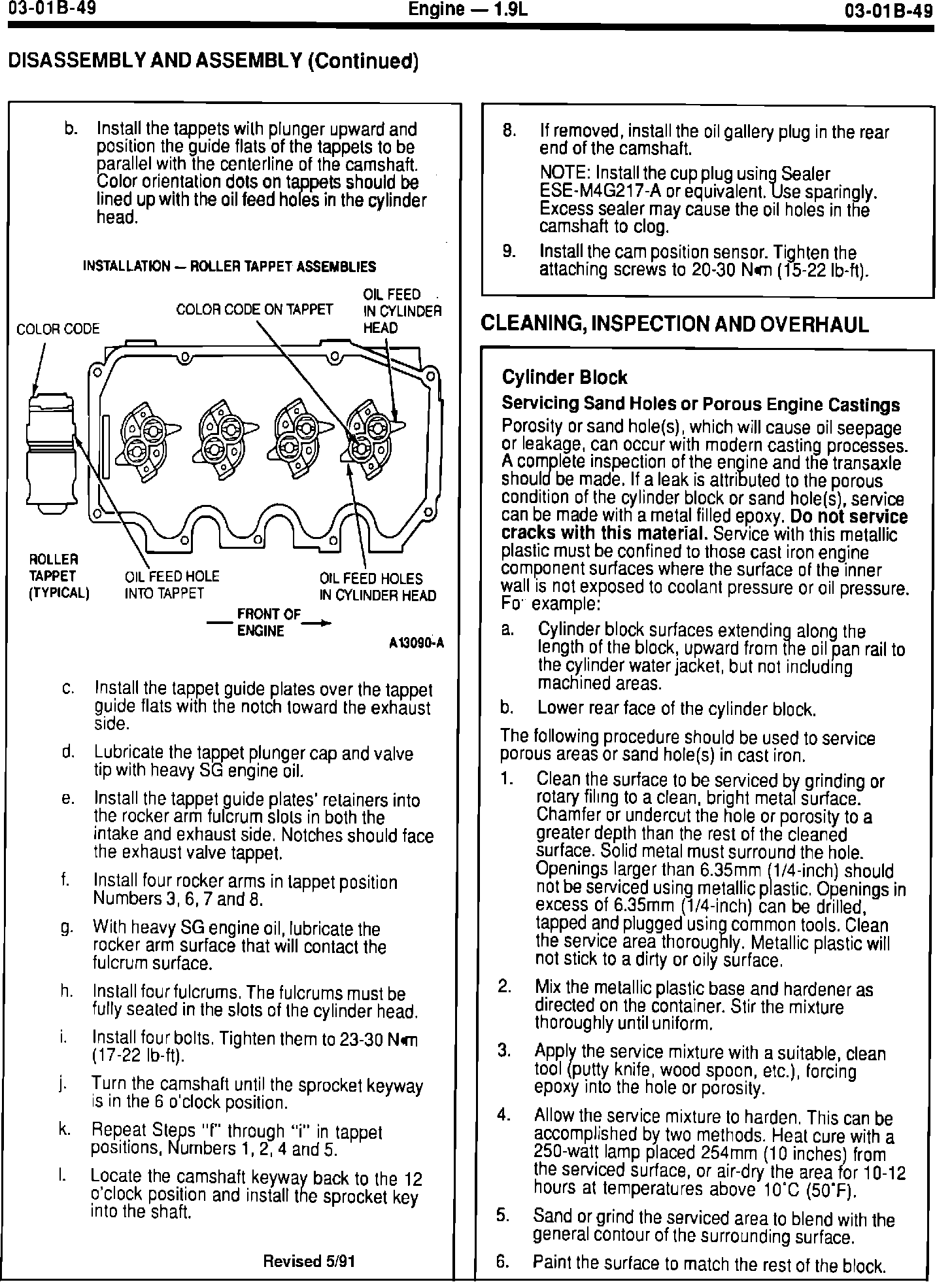

PAGE 03-01B-49 SECOND PRINTING
