Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW8 - Wiper Motor Ground Check

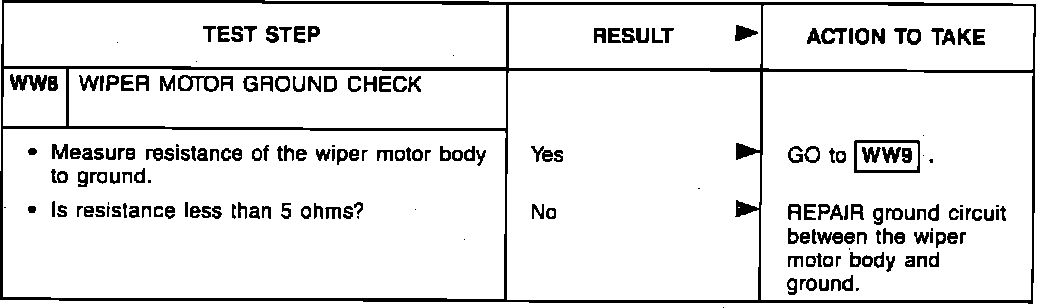

Test WW8 - Wiper Motor Ground Check

Fig. 20 Wiper System Diagnosis & Testing (Part 9 Of 19):
