Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW7 - Wiper Switch Ground Check

Test WW7 - Wiper Switch Ground Check

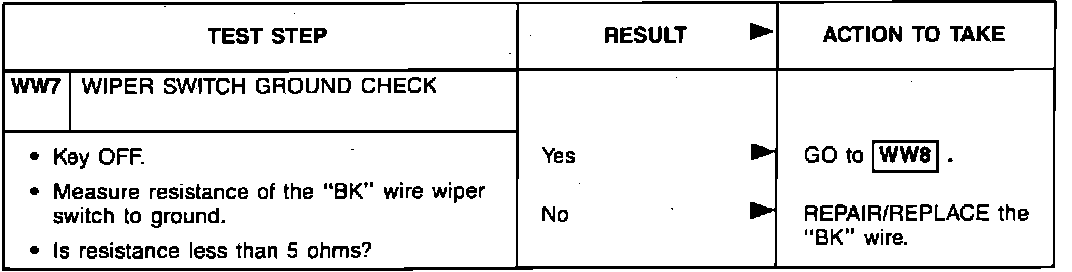

Fig. 20 Wiper System Diagnosis & Testing (Part 8 Of 19):
