Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW3 - Internal Governor, Wiper Supply Short Check

Test WW3 - Internal Governor, Wiper Supply Short Check

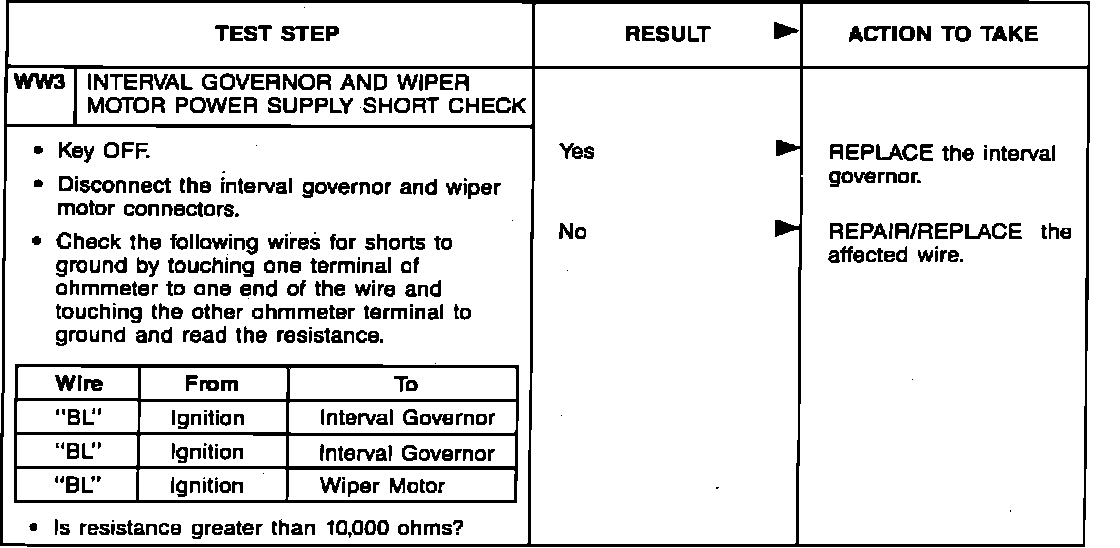

Fig. 20 Wiper System Diagnosis & Testing (Part 4 Of 19):
