Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW18 - Interval Governor Park Circuit Check

Test WW18 - Interval Governor Park Circuit Check

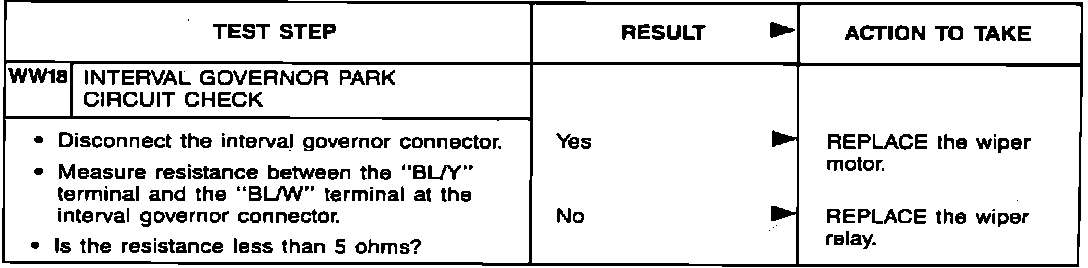

Fig. 20 Wiper System Diagnosis & Testing (Part 19 Of 19):
