Windshield Wiper Diagnostics - Revision

Article No.
91-14B-22

SHOP MANUAL - 1991 - SECTION 01-16A - FRONT WINDOW WIPERS - DIAGNOSTIC INFORMATION REVISED

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
Front window Wipers Section 01-16A of the 1991 Escort/Tracer Shop Manual has been revised. Pages 01-16A-4 thru 12 in original service manual have been revised by pages 01-16A-4 thru 9 of this service bulletin.

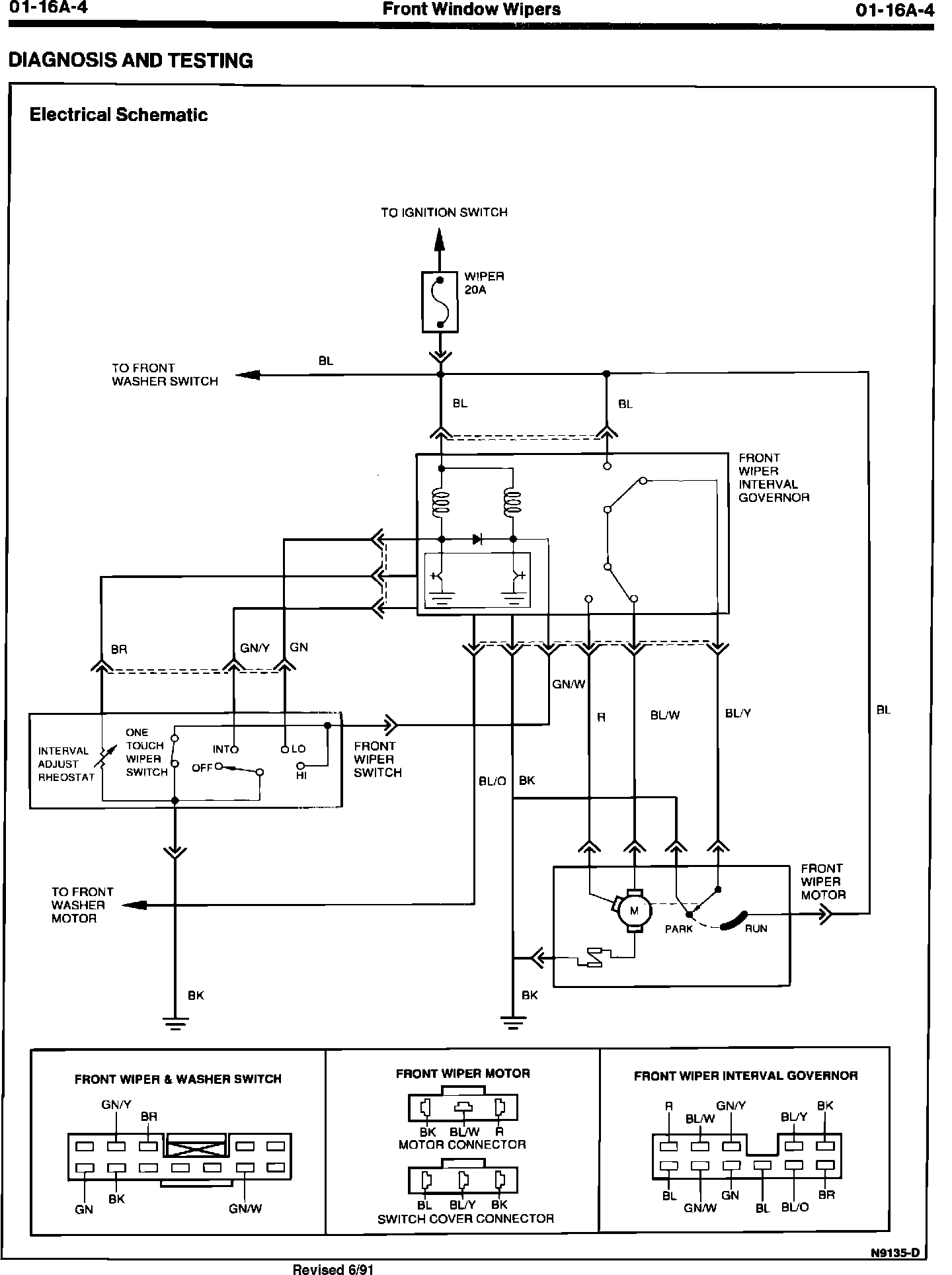

Electrical Schematic

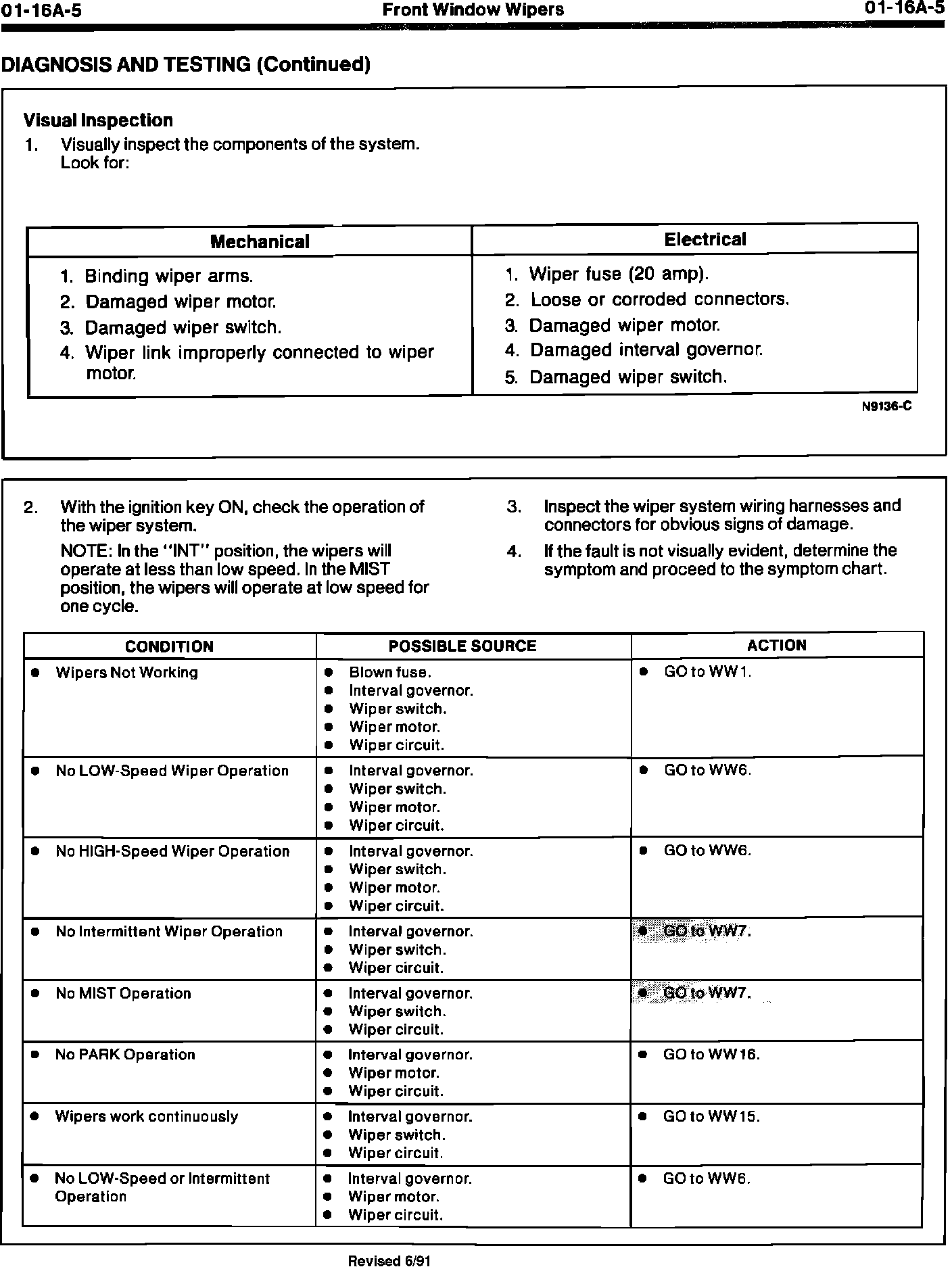

Visual Inspection & Diagnosis by Symptom

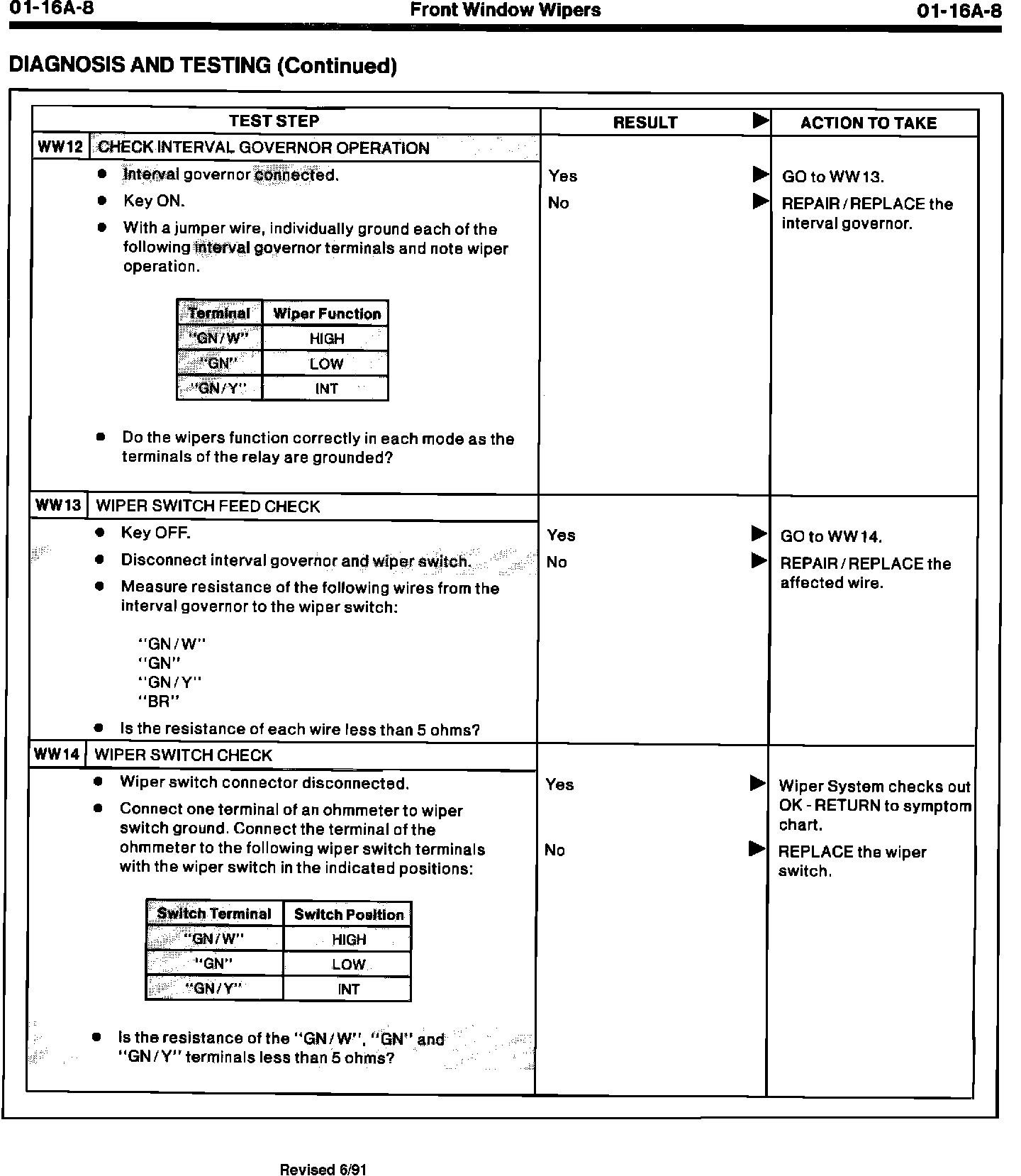

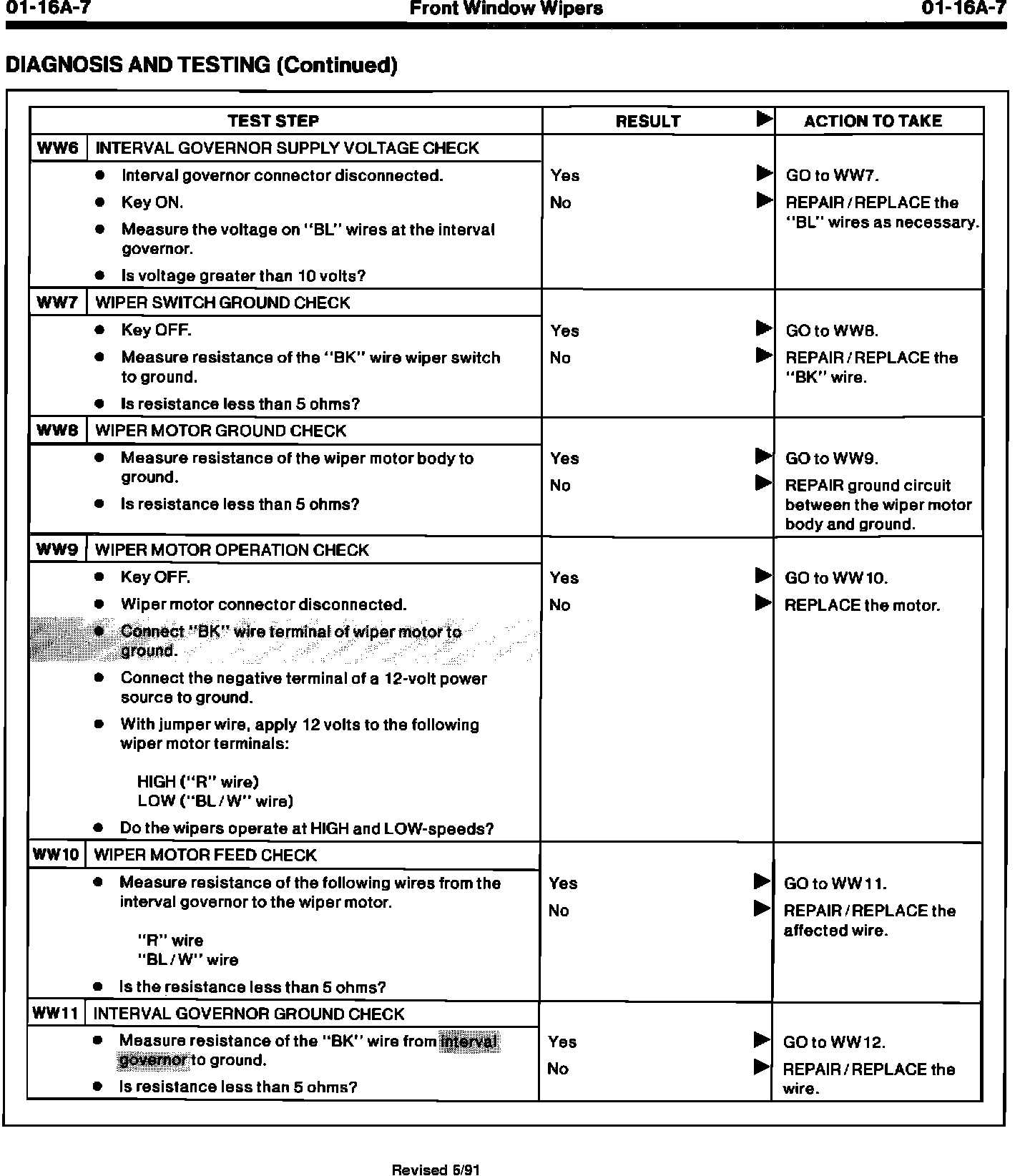

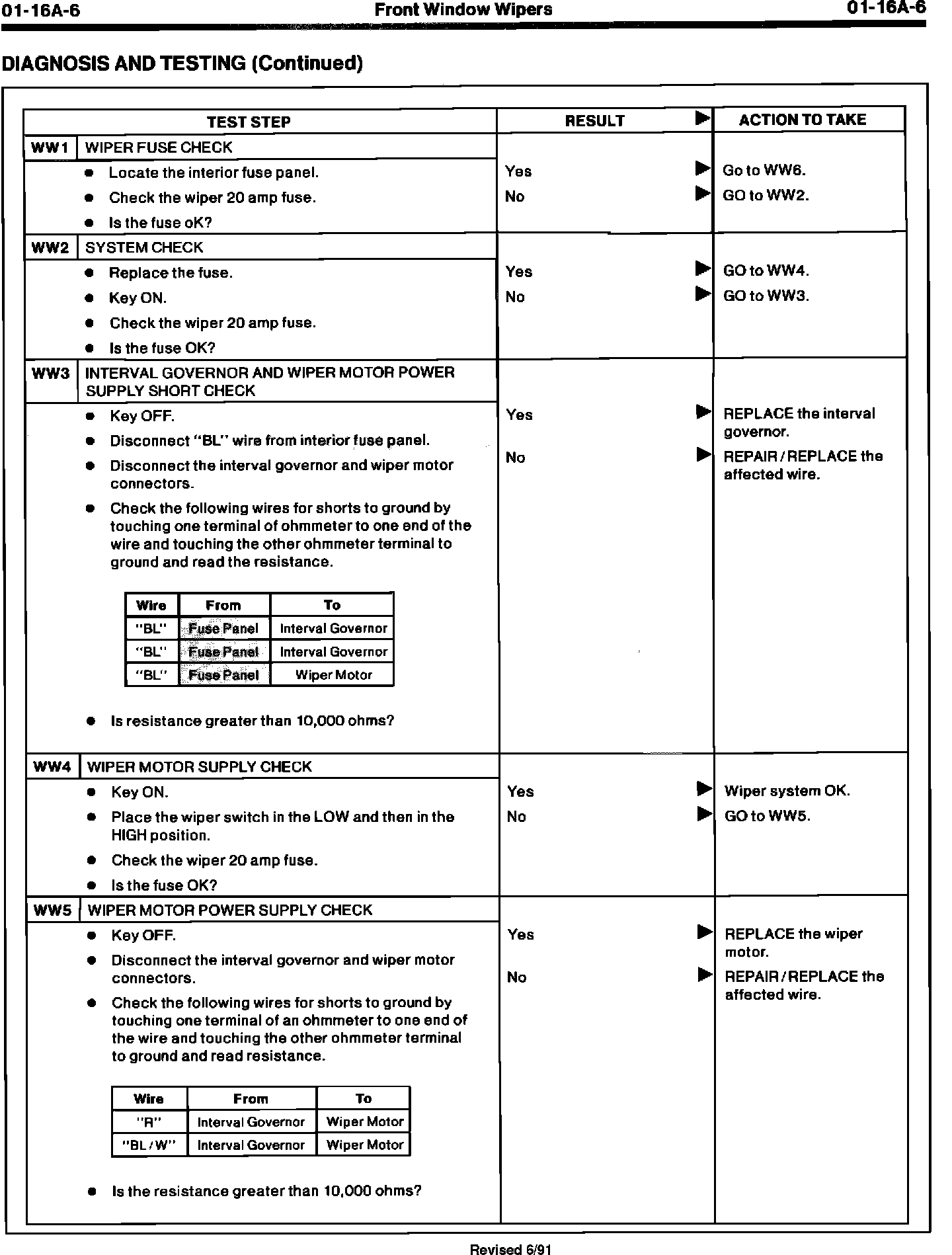

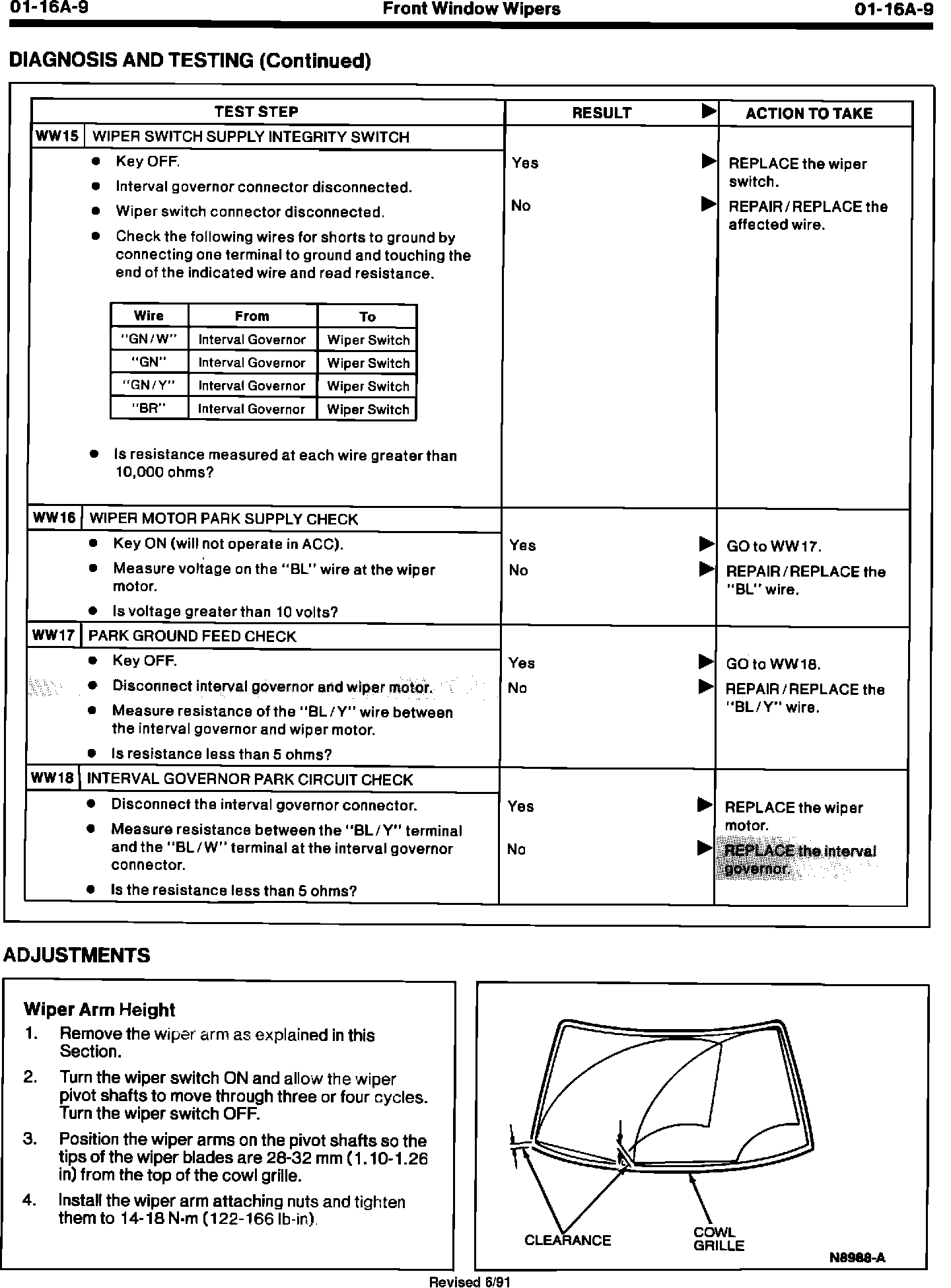

Testing Procedure


ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
