Dynamic Damper Bearing

1. Perform steps 1 through 14 outlined.
2. Insert a pry bar between outboard halfshaft and bearing support bracket housing at engine block. Pry outward until outboard halfshaft is released from inboard halfshaft circlip. Remove outboard halfshaft assembly.
3. Remove three bearing support bracket bolts.
4. Insert a pry bar between the bearing support bracket and starter motor brace.
5. Pry outward until inboard halfshaft is released from differential side gear.

Fig. 3 Dynamic Damper Bearing. 1.8L Engine:

6. Remove inboard halfshaft/bearing support bracket assembly, Fig. 3.
7. Remove circlip from inboard halfshaft.
8. Using an arbor press, press inboard halfshaft from bearing support bracket.
9. Using an arbor press, press bearing and inner oil seal from bearing support bracket. Discard bearing and oil seal.
10. Remove and discard outer oil seal from bearing support bracket using a suitable seal remover.
11. Reverse procedure to install, noting the following:

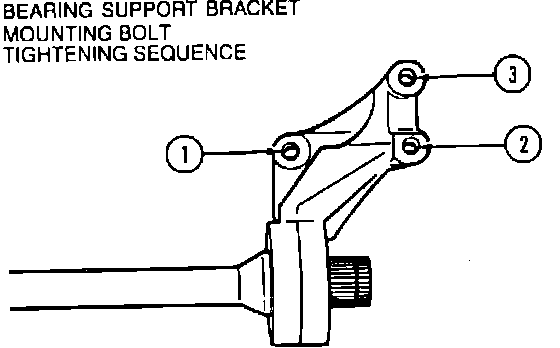

Fig. 4 Bearing Support Bracket Mounting Bolt:

a. Torque bearing support bracket in sequence shown in Fig. 4 to 31-46 ft. lbs.
