A/T - 4EAT Assembly Replacement, Service Tip

Article No.
96-13-3

06/17/96

TRANSAXLE - 4EAT - ASSEMBLY REPLACEMENT SERVICE TIPS

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

This TSB article is being republished in its entirety to revise the Service Procedure.

ISSUE:
A pin is used to hold the throttle valve in a fixed position on new or remanufactured service replacement transaxle assemblies. The pin is used during the assembly process to make installation of the control valve easier.

ACTION:
When installing a new or remanufactured 4EAT transaxle, be sure to remove the pin and install a new retaining bolt. Refer to the following Service Procedure for details.

NOTE:
FAILURE TO REMOVE THE PIN FROM THE THROTTLE CAM WILL HOLD THE TRANSMISSION THROTTLE LEVER IN A FIXED POSITION, RESULTING IN A SHIFT CONCERN.

SERVICE PROCEDURE

1. Install 4EAT transaxle in the vehicle. Refer to the 1991 Escort/Tracer Service Manual for service details.

2. Attach the TV cable to the throttle cam. Tighten the bolts to the cable adjustment. Refer to the 1991 Escort/Tracer Service Manual for service details.

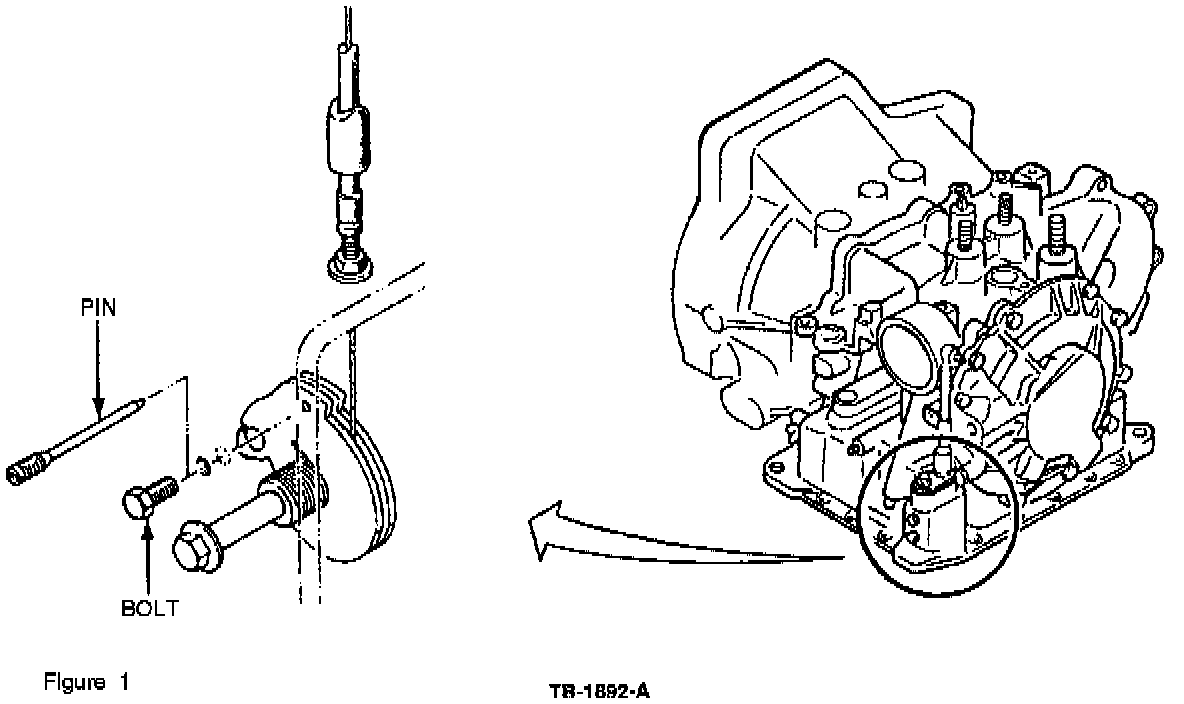

3. Remove the pin from the throttle cam, Figure 1. The pin is located just below where the TV cable enters the transaxle case.

NOTE:
APPLY SEALANT TO THE NEW BOLT BEFORE INSTALLATION TO PREVENT OIL LEAKAGE.

4. Install a new retainin9 bolt, (F1CZ-7N279-A), in place of the pin. Tighten the bolt.

5. Check line pressure and adjust as necessary.

PART NUMBER PART NAME

F1CZ-7N279-A Bolt

OTHER APPLICABLE ARTICLES: NONE

SUPERSEDES: 91-1-9

WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 501000, 502000, 504000, 590000
