Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> General Condition Chart(s)

General Condition Chart(s)

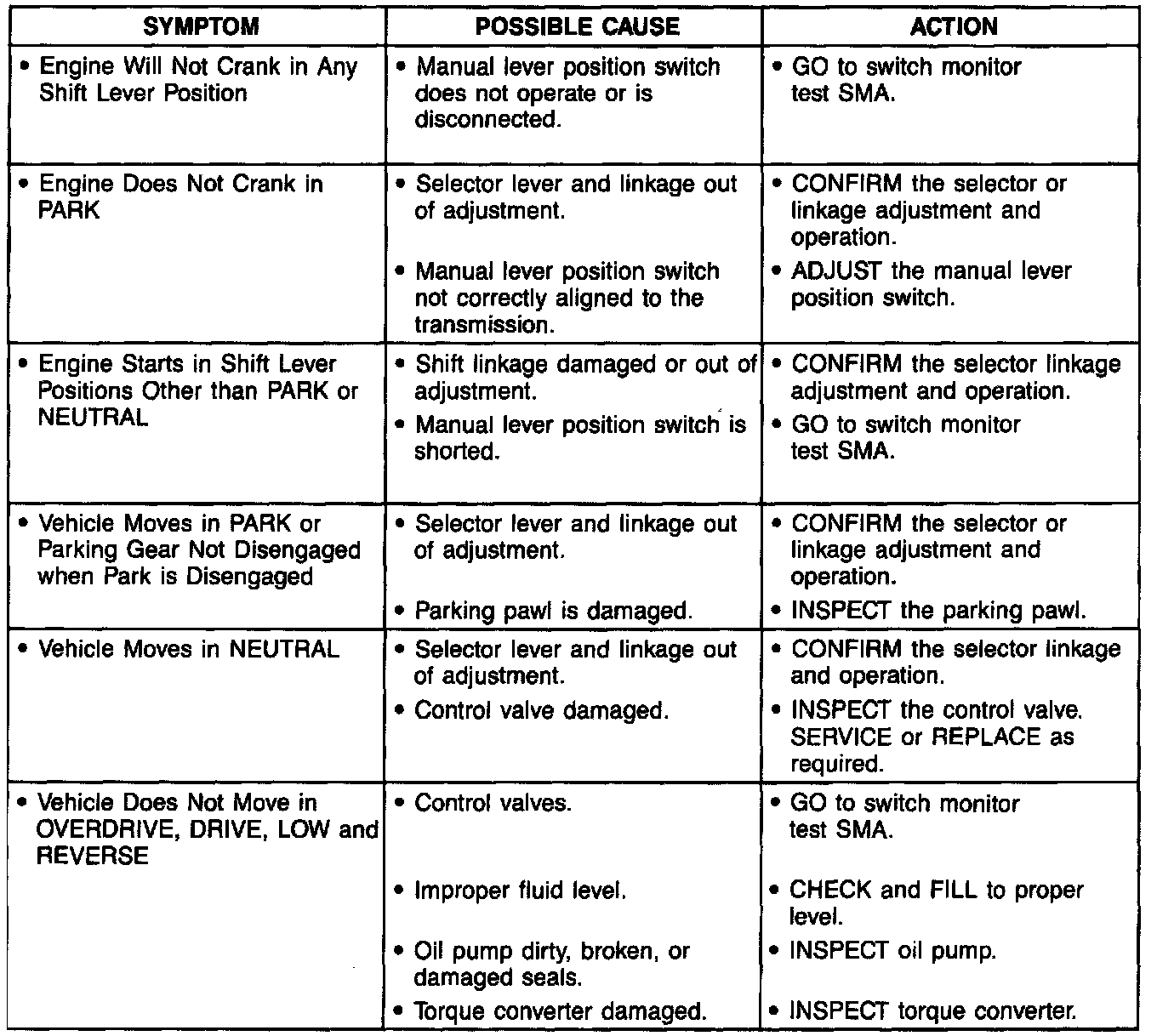

Symptom Chart.:

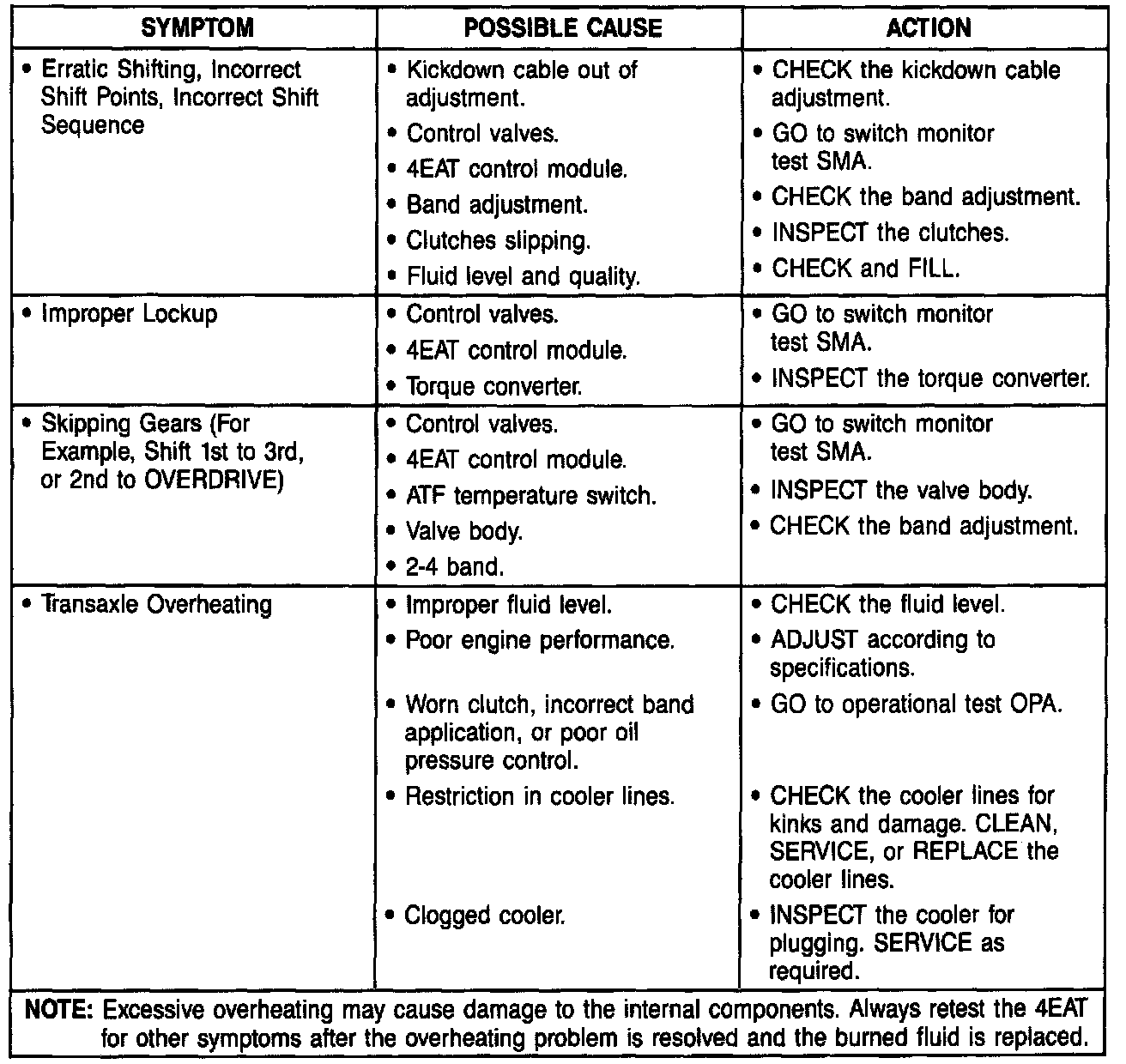

Symptom Chart.:

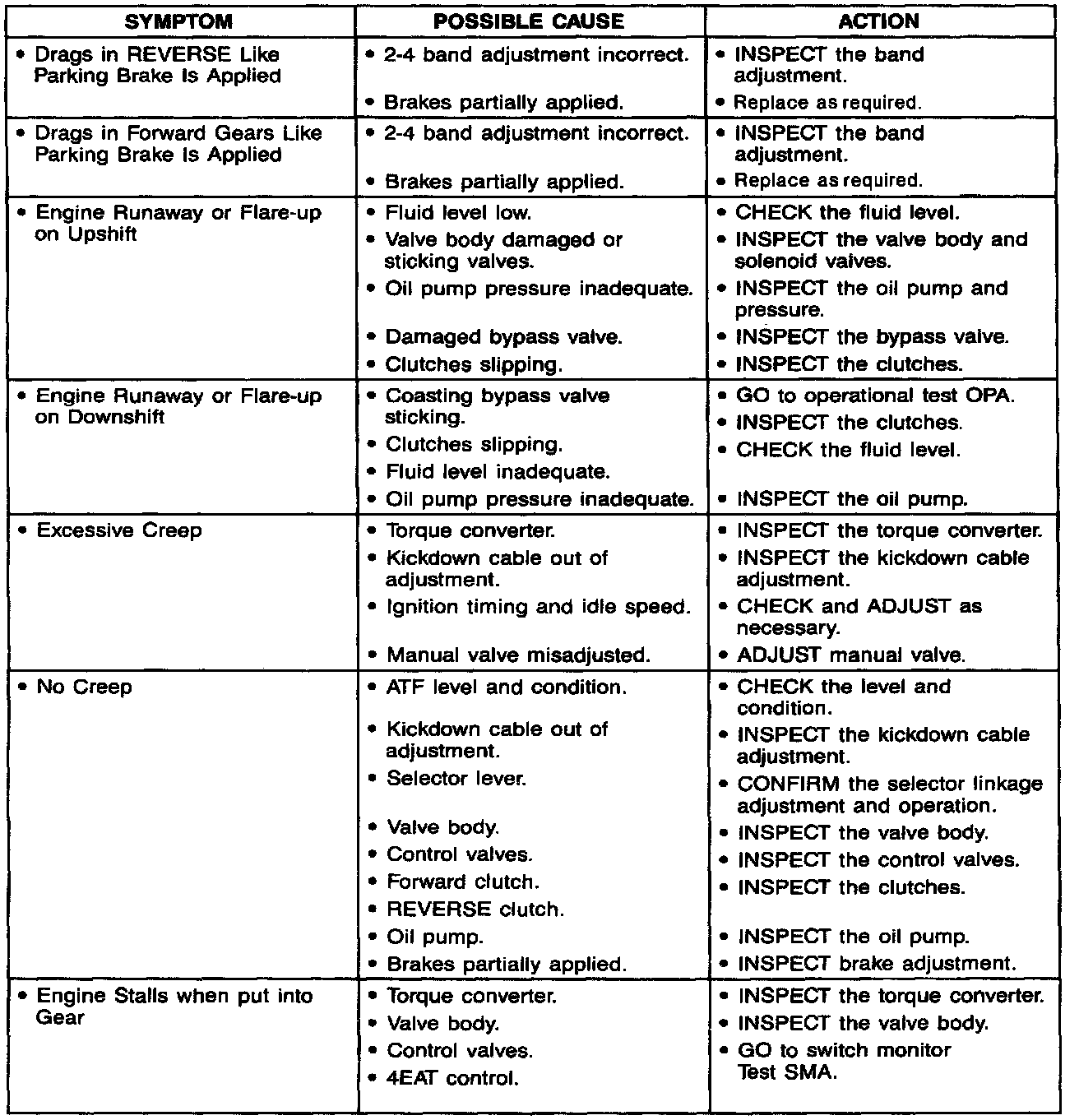

Symptom Chart.:

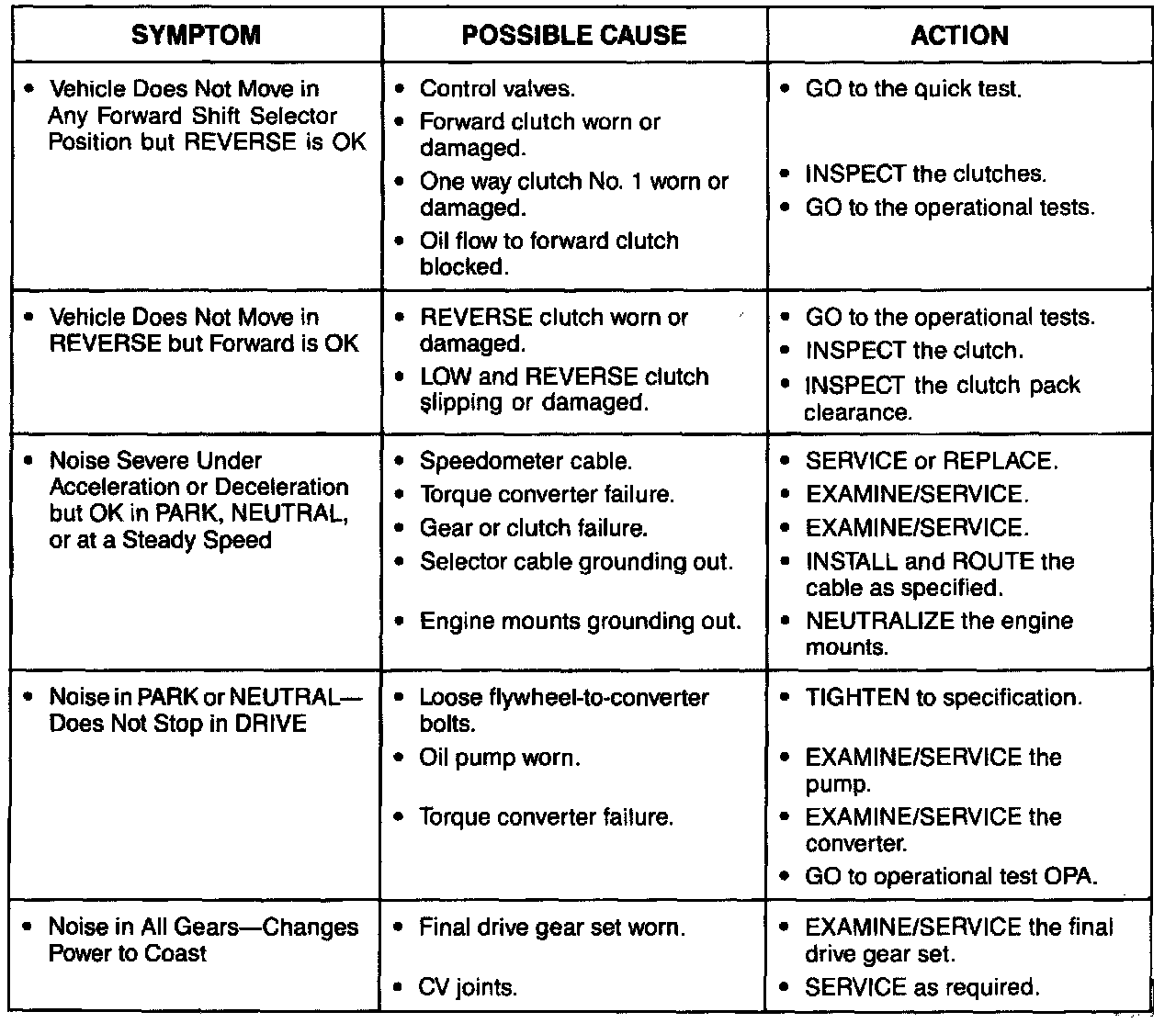

Symptom Chart.:





Symptom Chart.:
