OP B - Check Hydraulic Control System

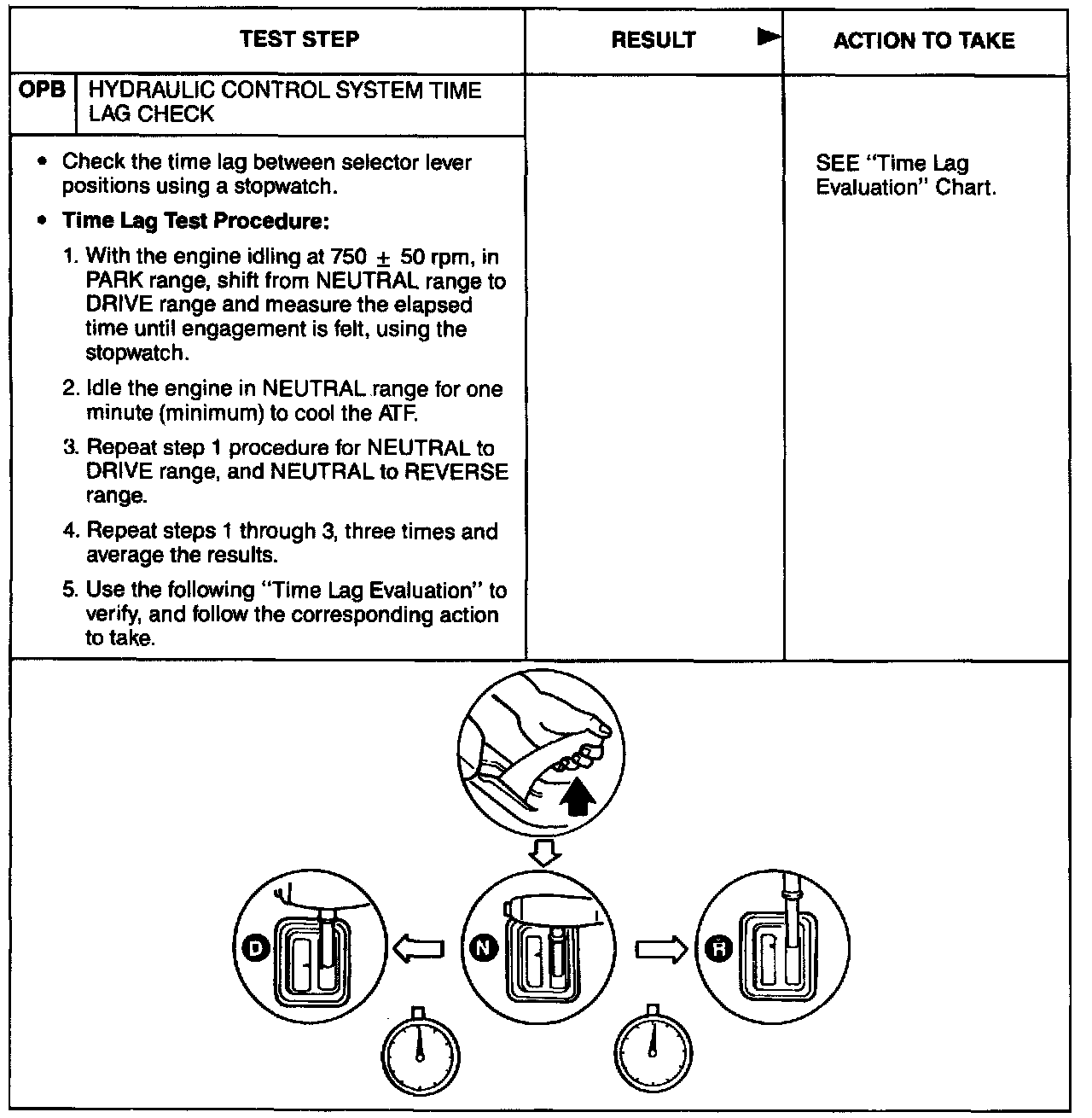

Hydraulic Control System Time Lag Test Chart:

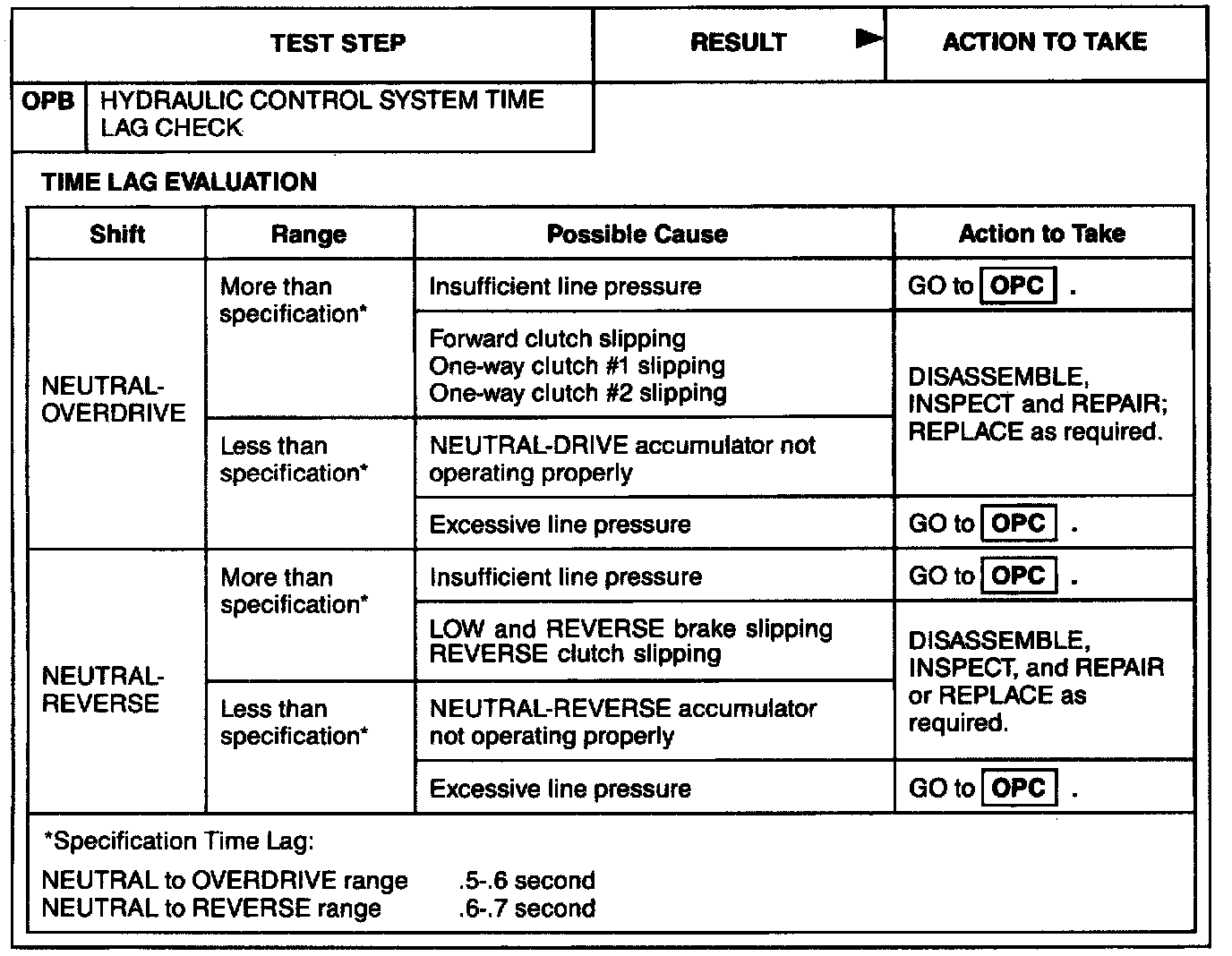

Time Lag Evaluation Chart:
