A/T Valve Body - Disassembly/Assembly Revised

90ford19 SHOP MANUAL - 1991 - SECTION 07-01 - ILLUSTRATIONS IN AUTOMATIC TRANSAXLE VALVE BODY DISASSEMBLY/ASSEMBLY PROCEDURES REVISED
Article No. 90-12B-6
FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER

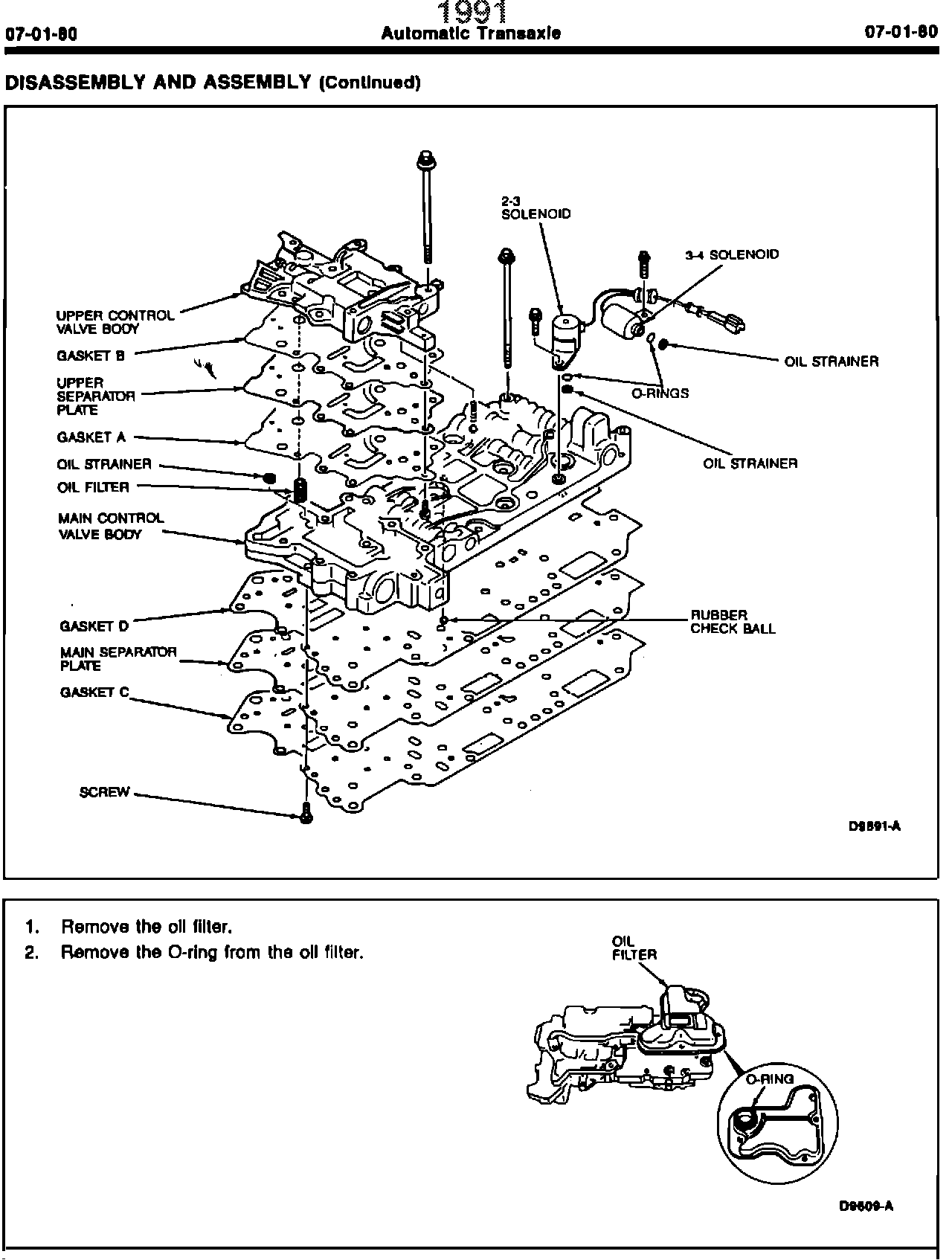

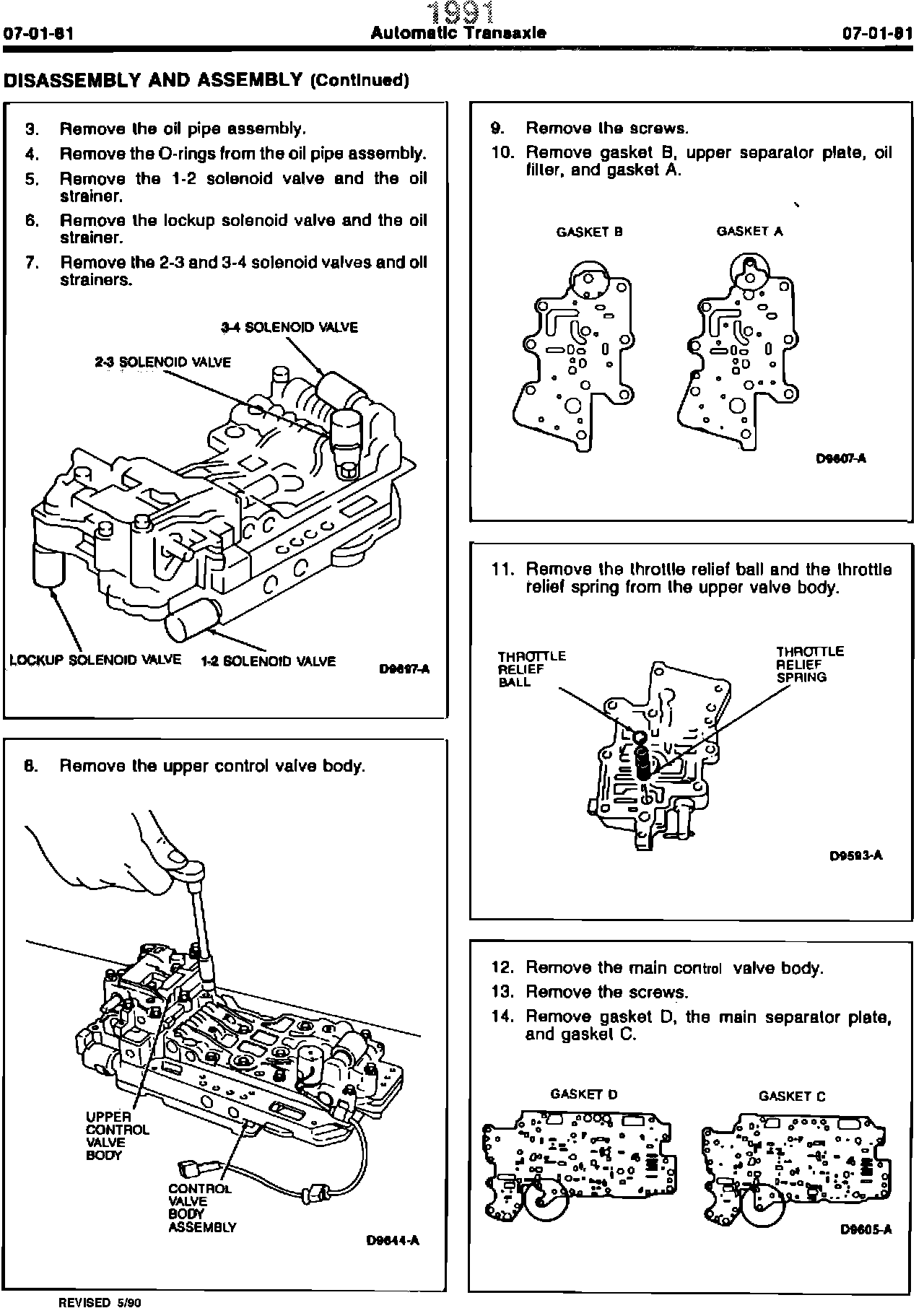

ISSUE: The illustrations for the Automatic Transaxle Valve Body Disassembly and Assembly procedure on pages 07-01-79 and 07-01-81 of the 1991 Escort/Tracer Shop Manual have been revised.

ACTION: Refer to the pages following this TSB article for the revised illustrations.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 5800
