A/T - Valve Body Disassembly/Assembly Revision

Article No.
92-18A-14

09/04/92

SHOP MANUAL - 1991 - SECTION 07-01 - ILLUSTRATIONS IN AUTOMATIC TRANSAXLE VALVE BODY DISASSEMBLY/ASSEMBLY PROCEDURES REVISED

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
The illustrations for the Automatic Transaxle Valve Body Disassembly and Assembly procedure on pages 07-01-79 and 07-01-81 of the 1991 Escort/Tracer Shop Manual have been revised.

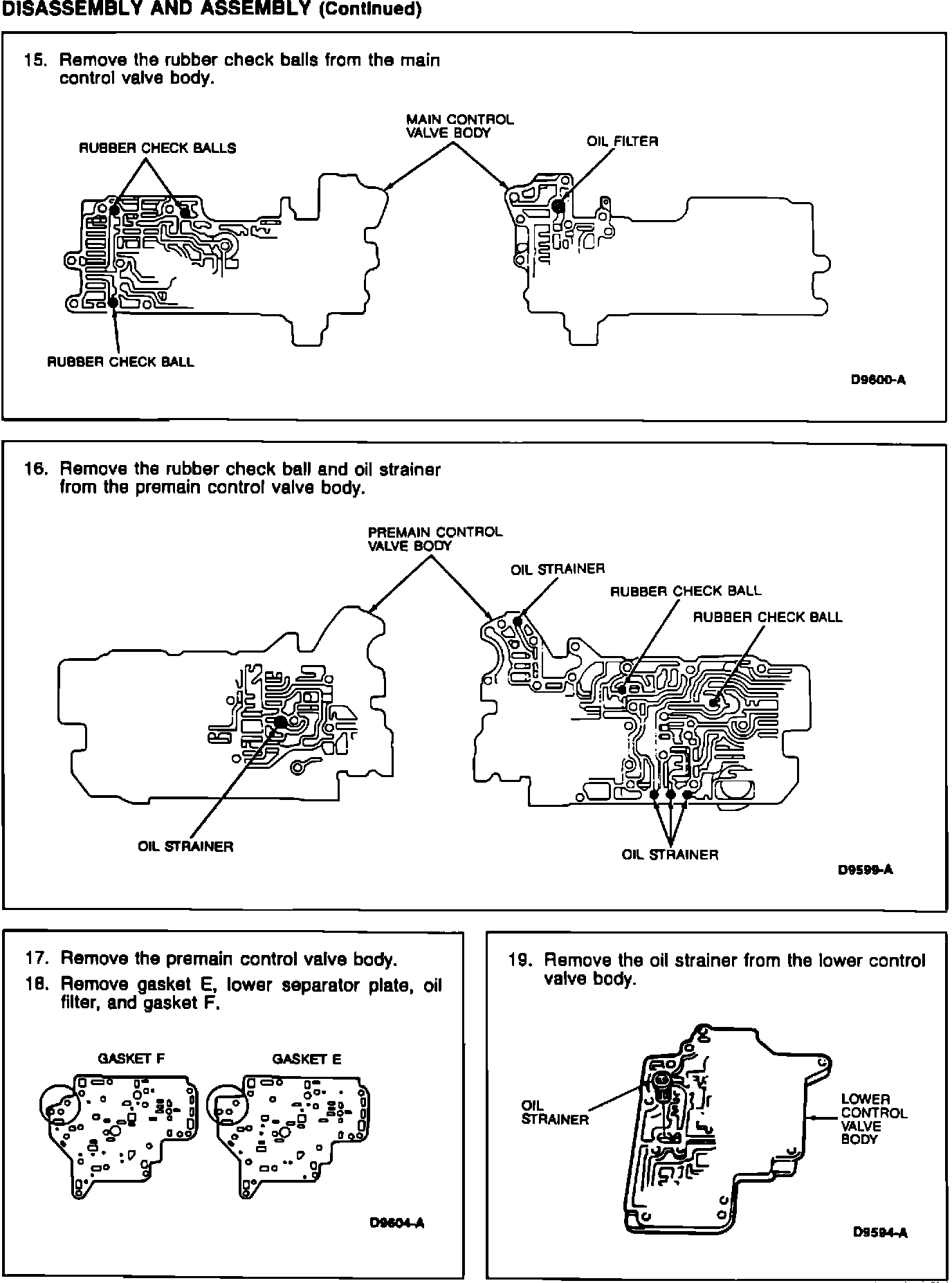

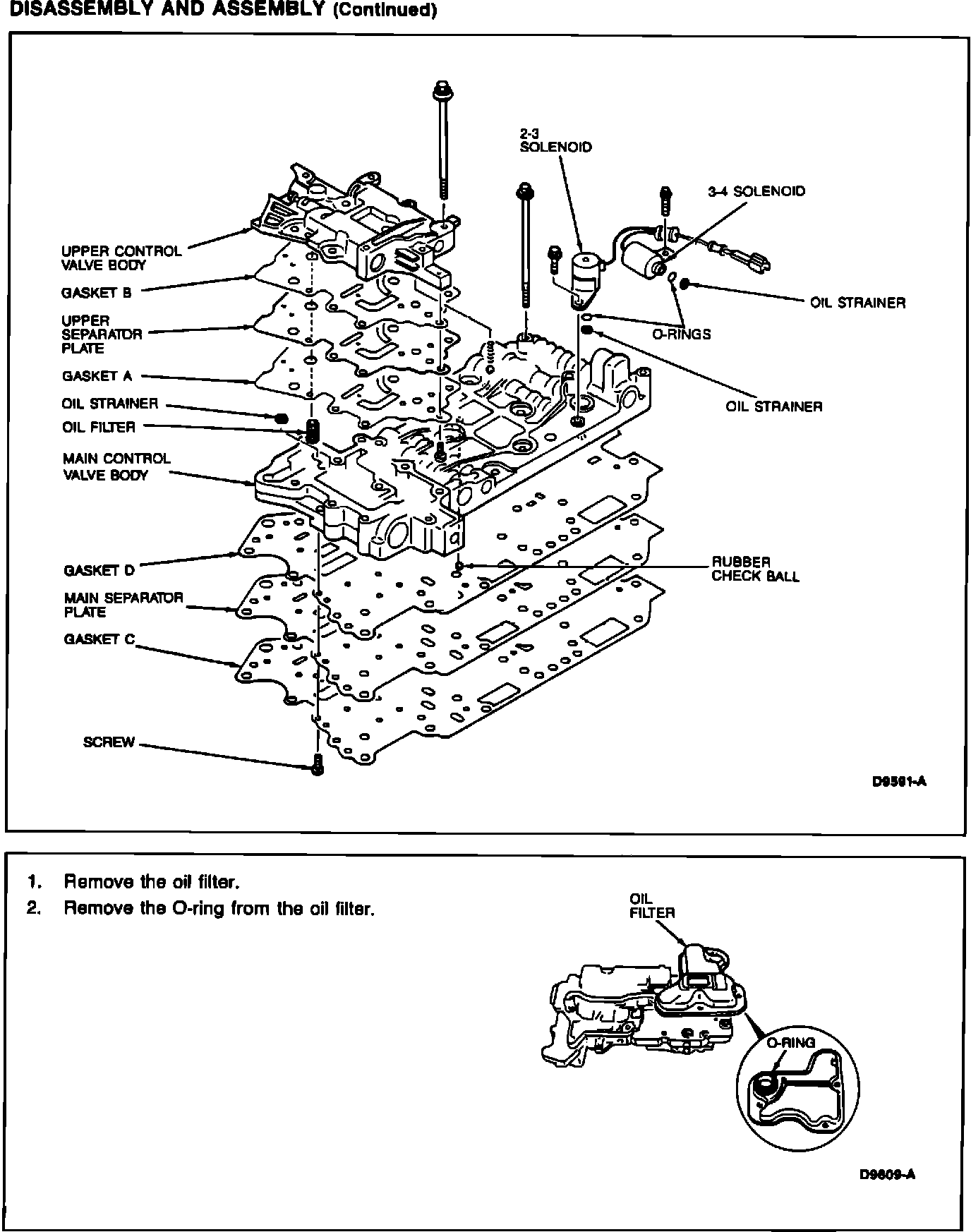

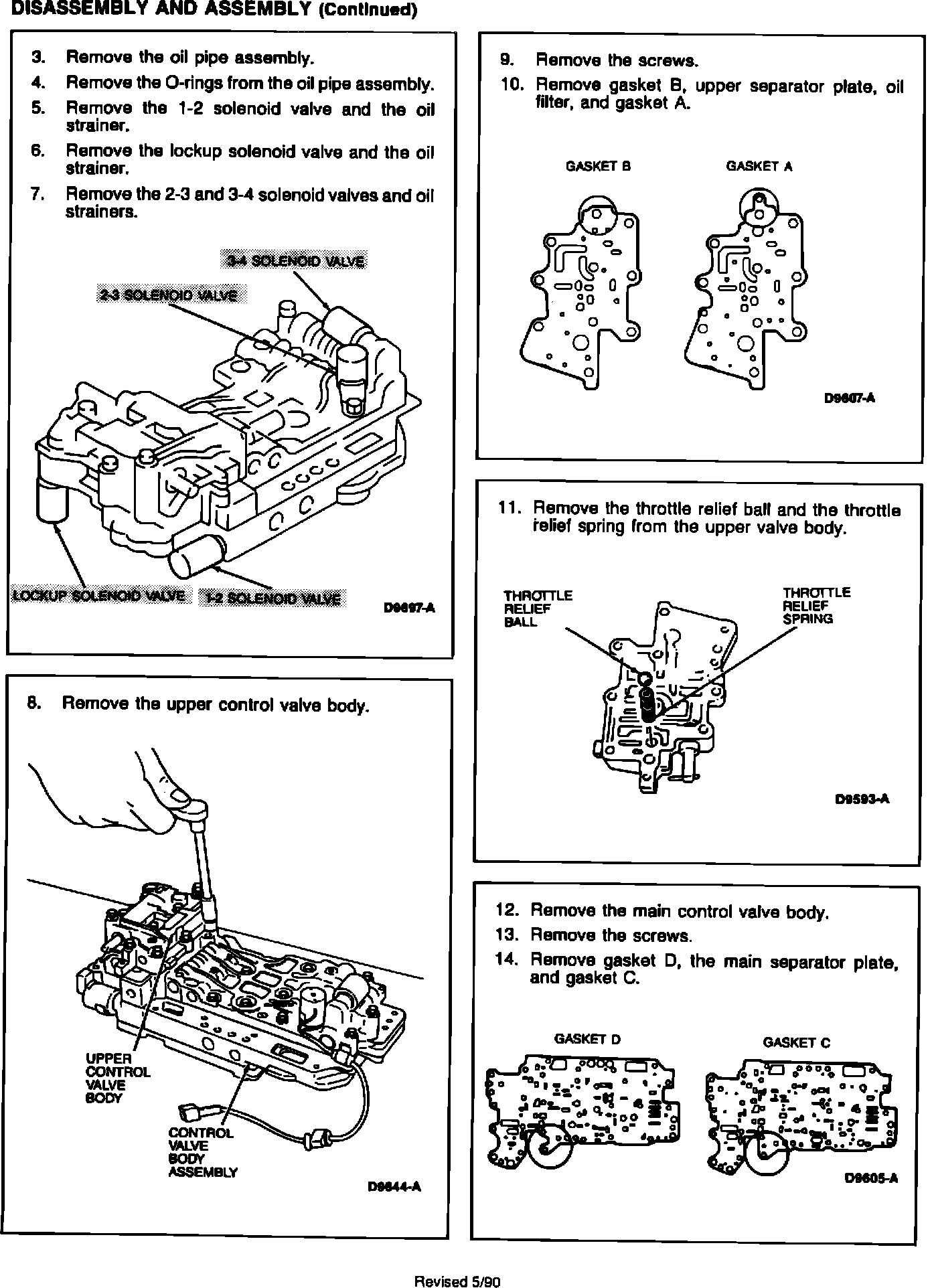

Page 07-01-79




Page 07-01-80




Page 07-01-81




Page 07-01-82

ACTION:
Refer to the pages in this TSB article for the revised illustrations.

OTHER APPLICABLE ARTICLES: 90-12B-6
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
