A/T Torque Specifcation - Manual Revisions

90ford32
^ SHOP MANUAL - 1989 - TORQUE SPECIFICATIONS - AUTOMATIC TRANSAXLE SELECTOR LEVER ATTACHING LOCK NUT ADDED

^ SHOP MANUAL - 1990 - TORQUE SPECIFICATIONS - AUTOMATIC TRANSAXLE SELECTOR LEVER ATTACHING LOCK NUT ADDED
Article No. 90-18B-21
FORD: 1989-90 FESTIVA, PROBE 1991 ESCORT

LINCOLN-MERCURY: 1989-91 TRACER
ISSUE: Torque specifications for the Automatic Transaxle selector lever attaching lock nut have been added to the 1989 Tracer Shop Manual, the 1991 Escort/Tracer Shop Manual plus the 1989 and 1990 Festiva and Probe Shop Manuals. An important note indicating that a power wrench should not be used has also been added. The following Shop Manuals and page numbers are affected:

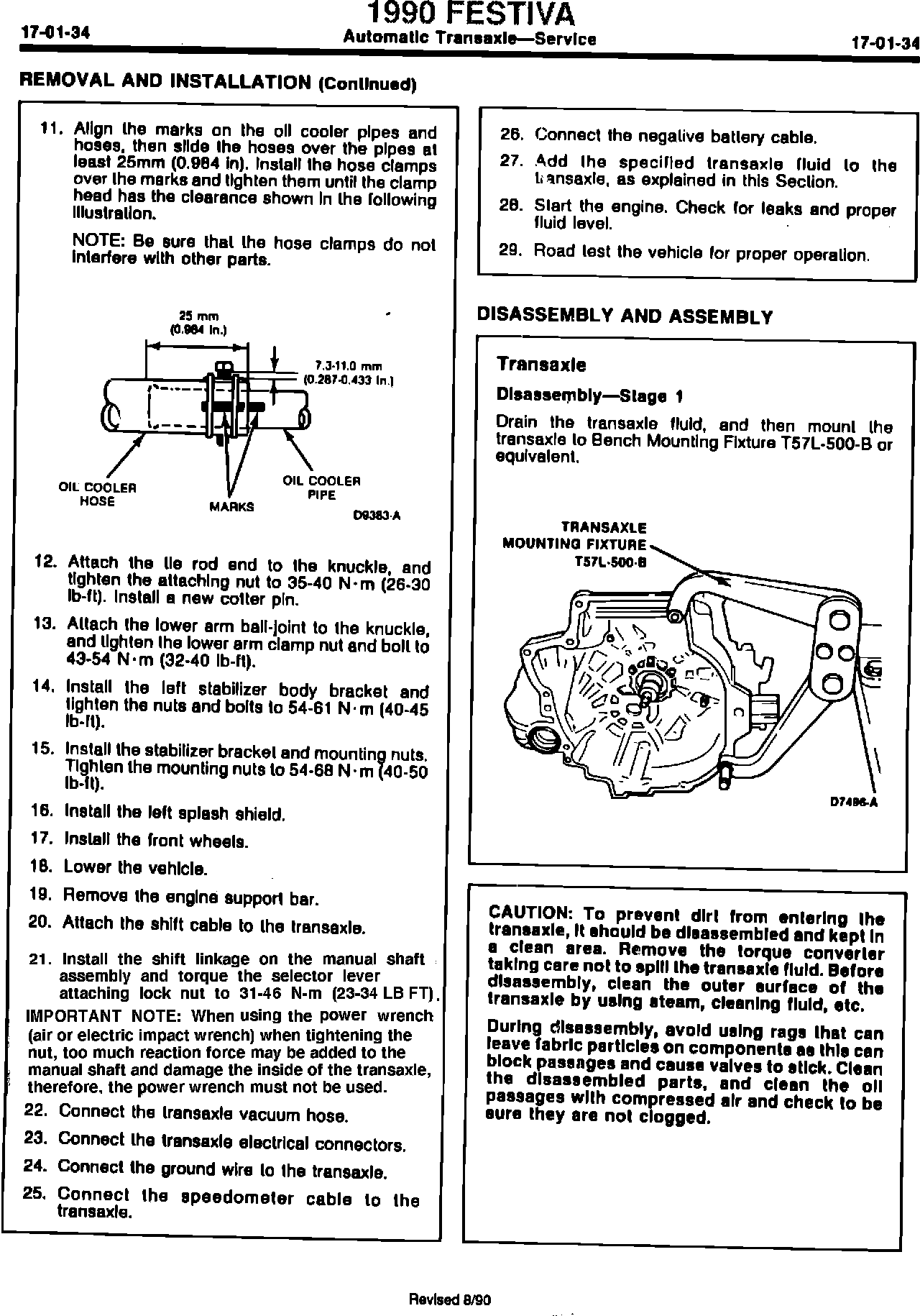

^ 1989 Festiva page 17-01-34






^ 1990 Festiva page 17-01-34

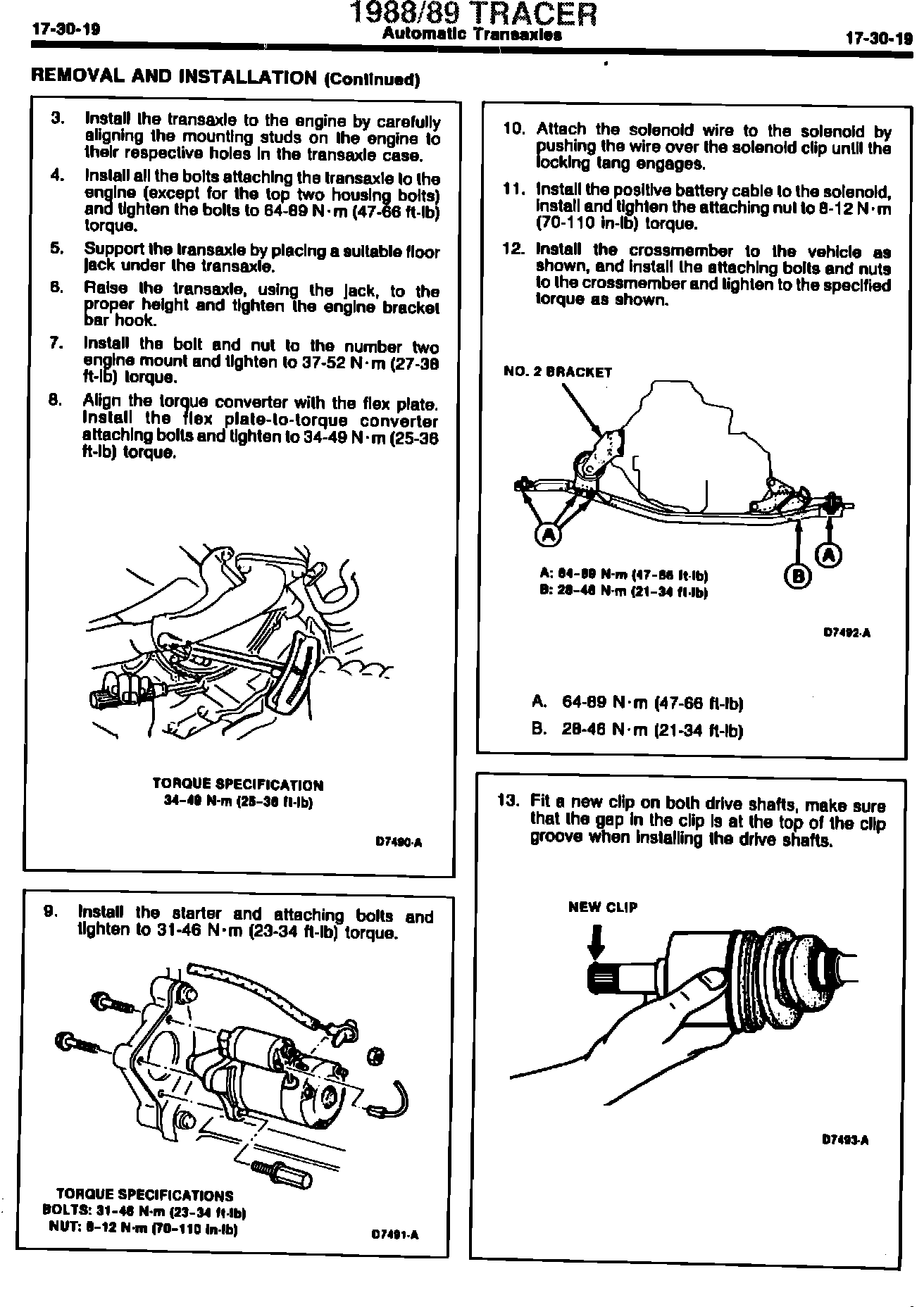

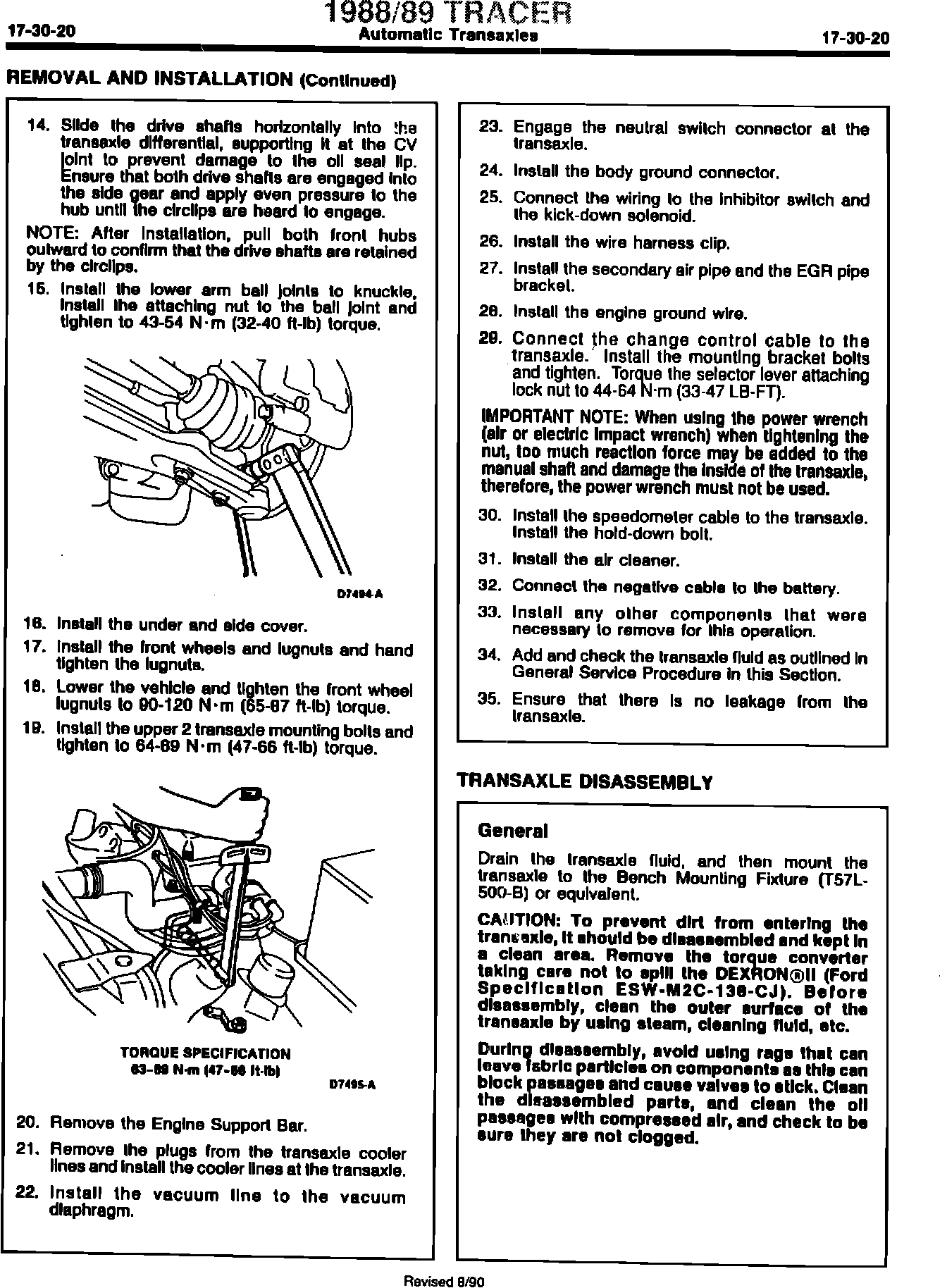

^ 1989-89 Tracer page 17-30-20

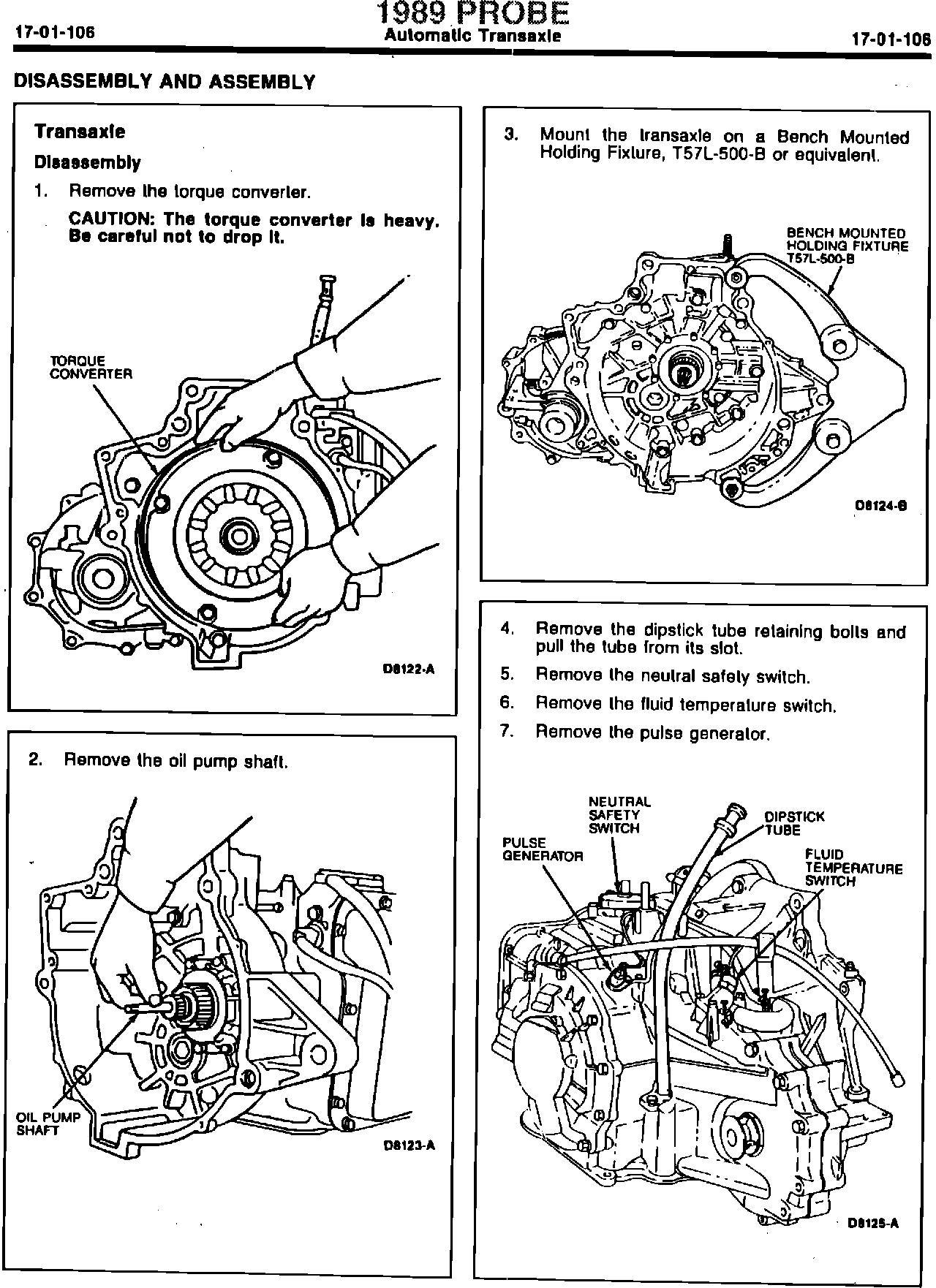

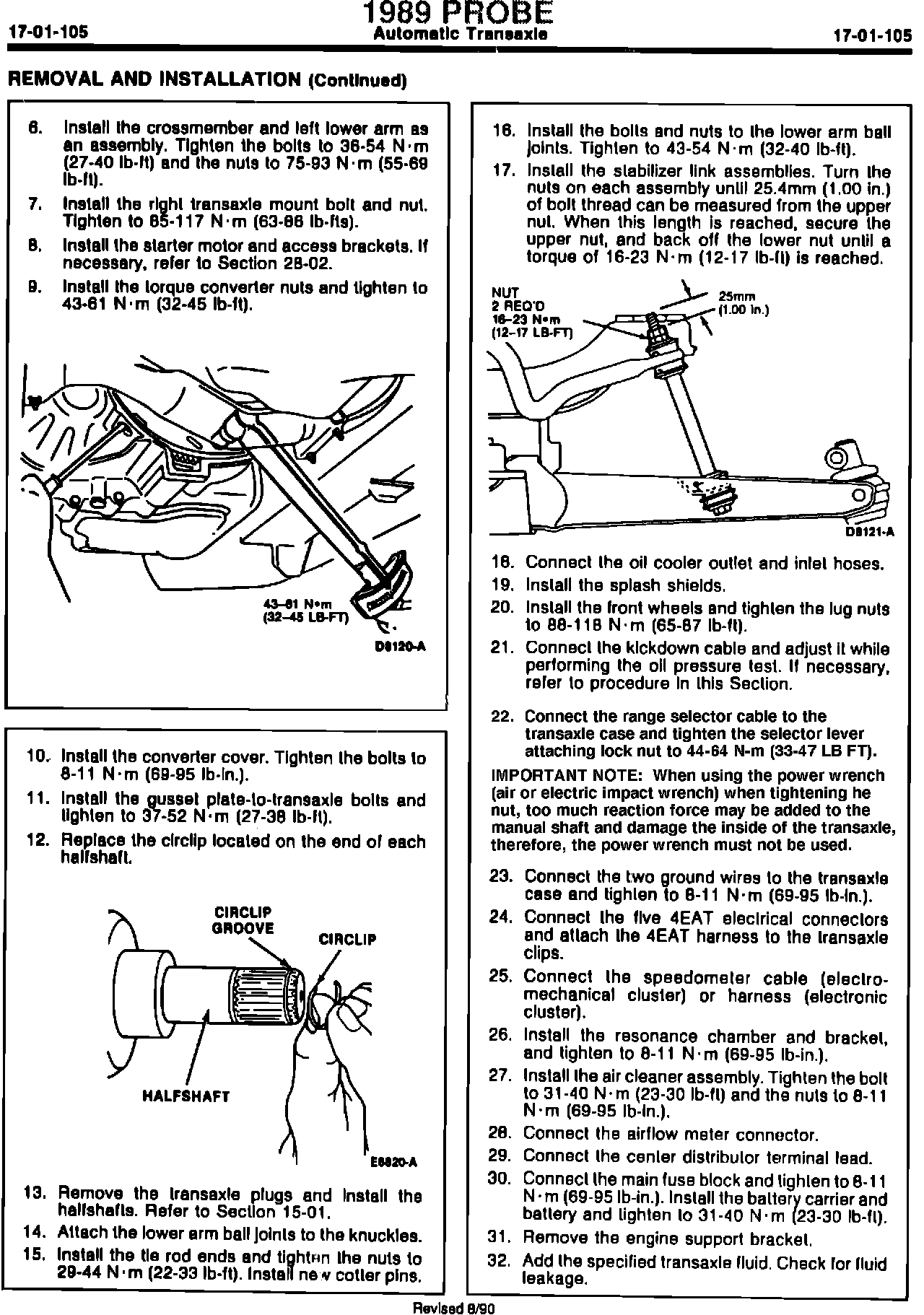

^ 1989 Probe page 17-01-105

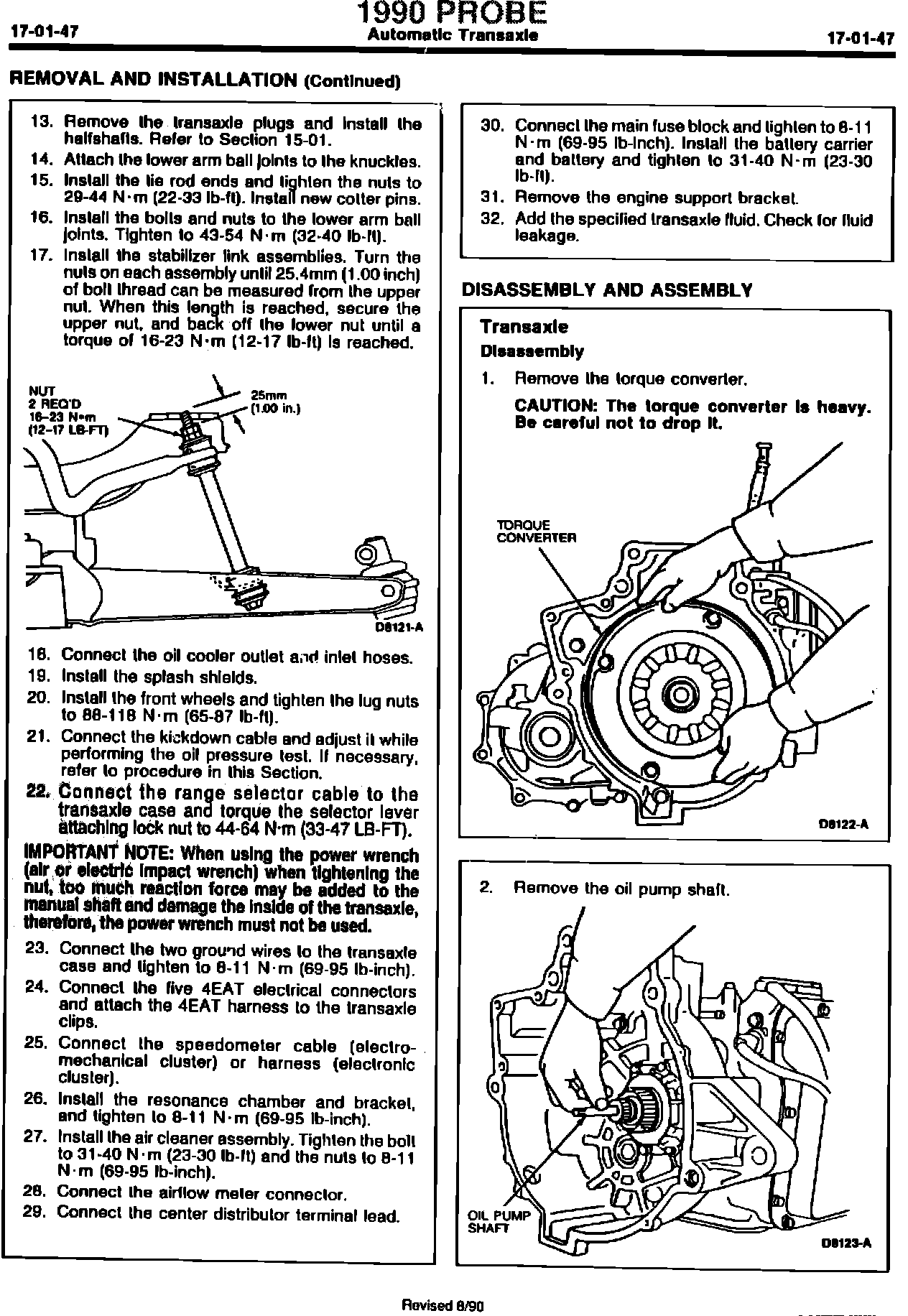

^ 1990 Probe page 17-01-47

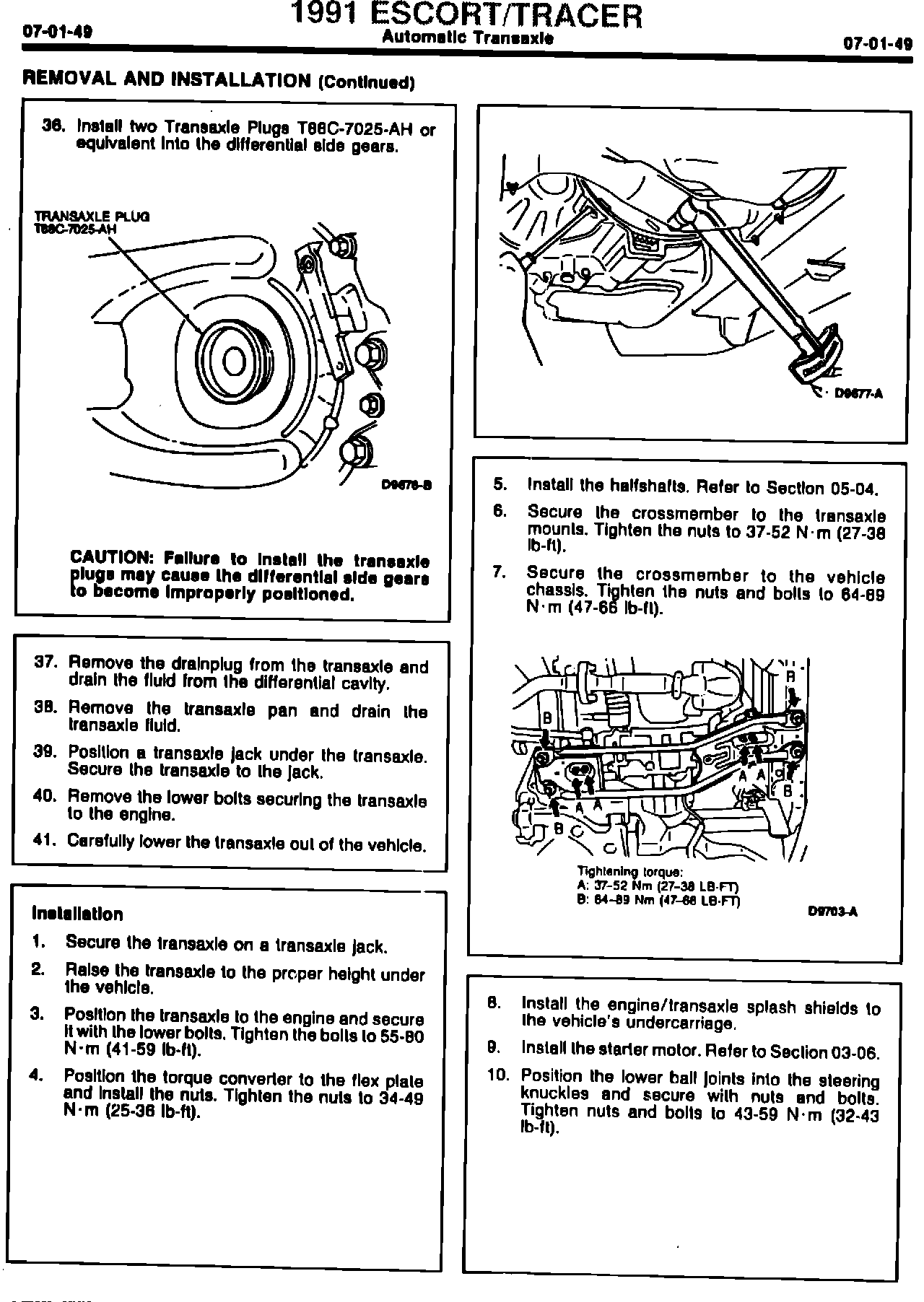

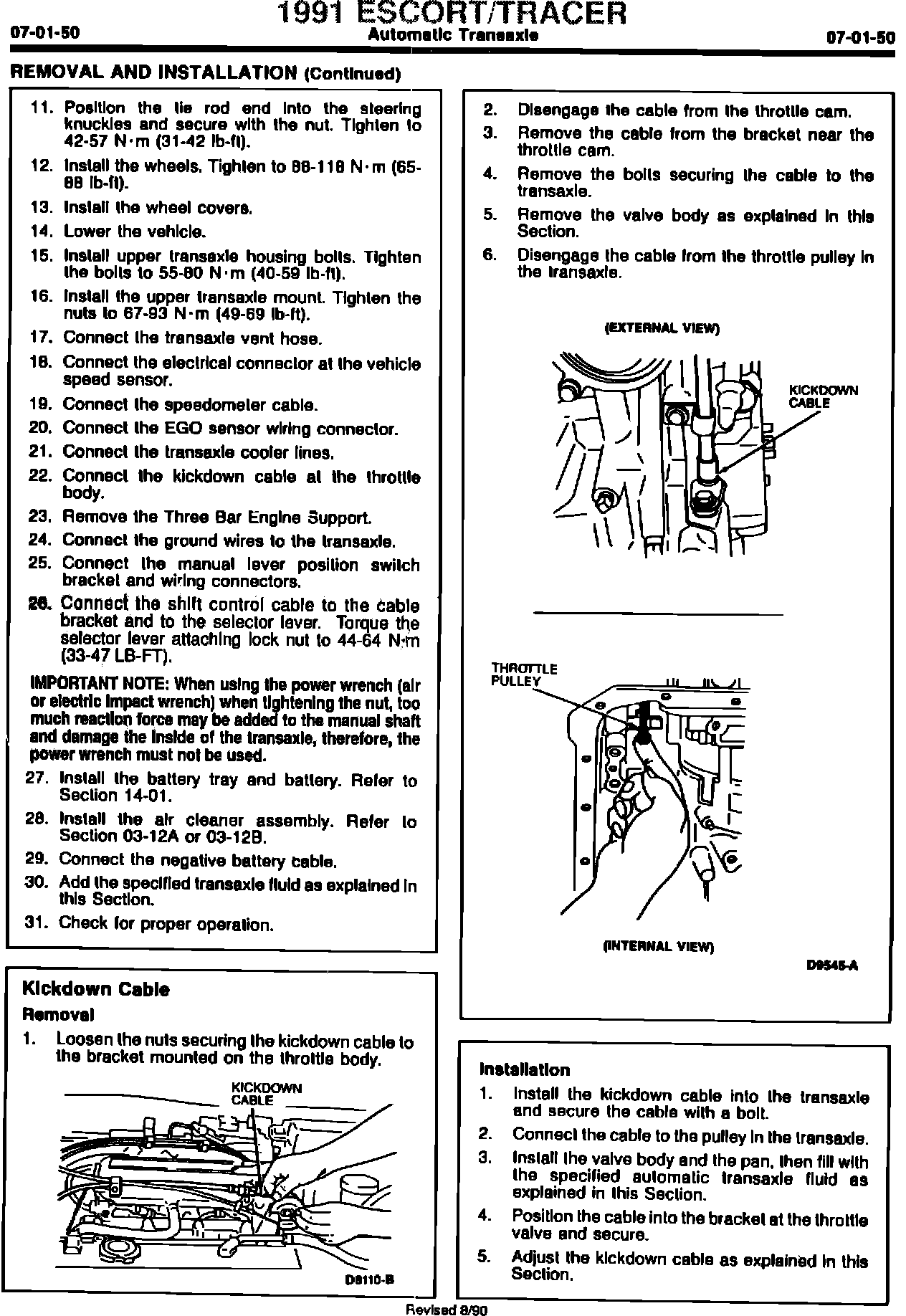

^ 1991 Escort/Tracer page 07-01-50

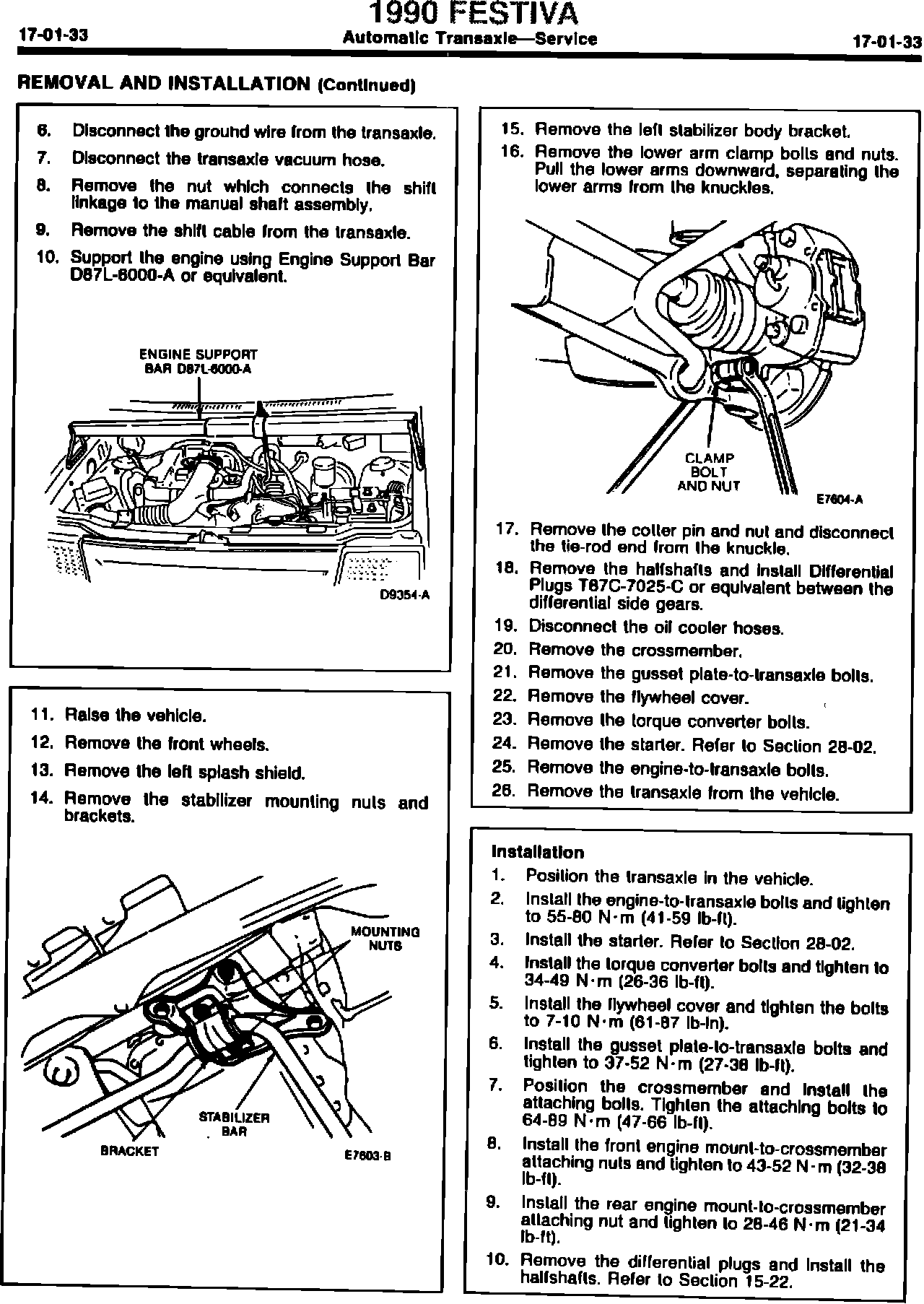

ACTION: Refer to the pages following this TSB article for the updated Removal and Installation procedures.


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
