Electronic Noise Suppressor: Service and Repair

Removal
1. Disconnect negative battery cable.

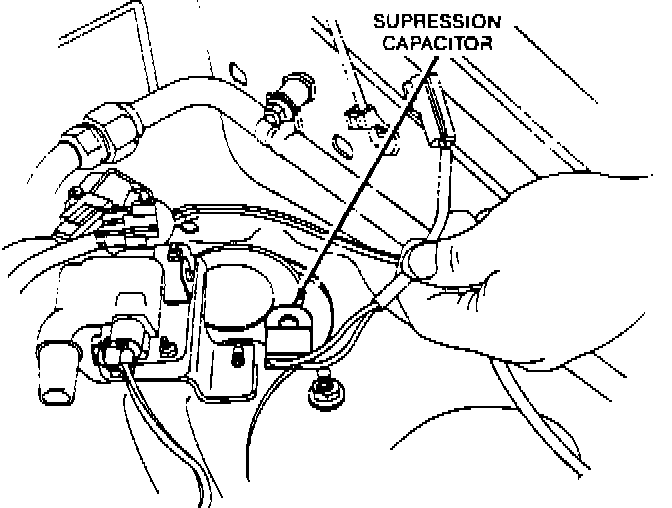

Supression Capacitor:

2. Disconnect electrical connector.
3. Remove the nut.

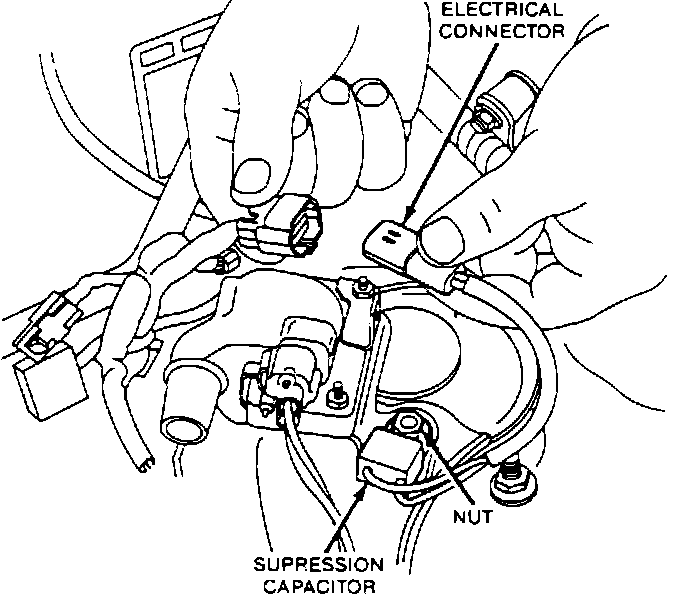

Supression Capacitor:

4. Remove the suppression capacitor.
Installation
1. Position the suppression capacitor and install the nut.
2. Connect electrical connector.
3. Connect negative battery cable.
4. Check for proper operation.
