Charging System Diagnosis - Revision

Article No.
91-14B-40

Date
July 22, 1991



SHOP MANUAL - 1991 - SECTION 14-00 - ELECTRICAL POWER SUPPLY - GENERAL SERVICE - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Electrical Power Supply-General Service Section 14-00 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 14-00-8 through 19 in original service manual have been revised by pages 14-00-8 through 16 of this bulletin.

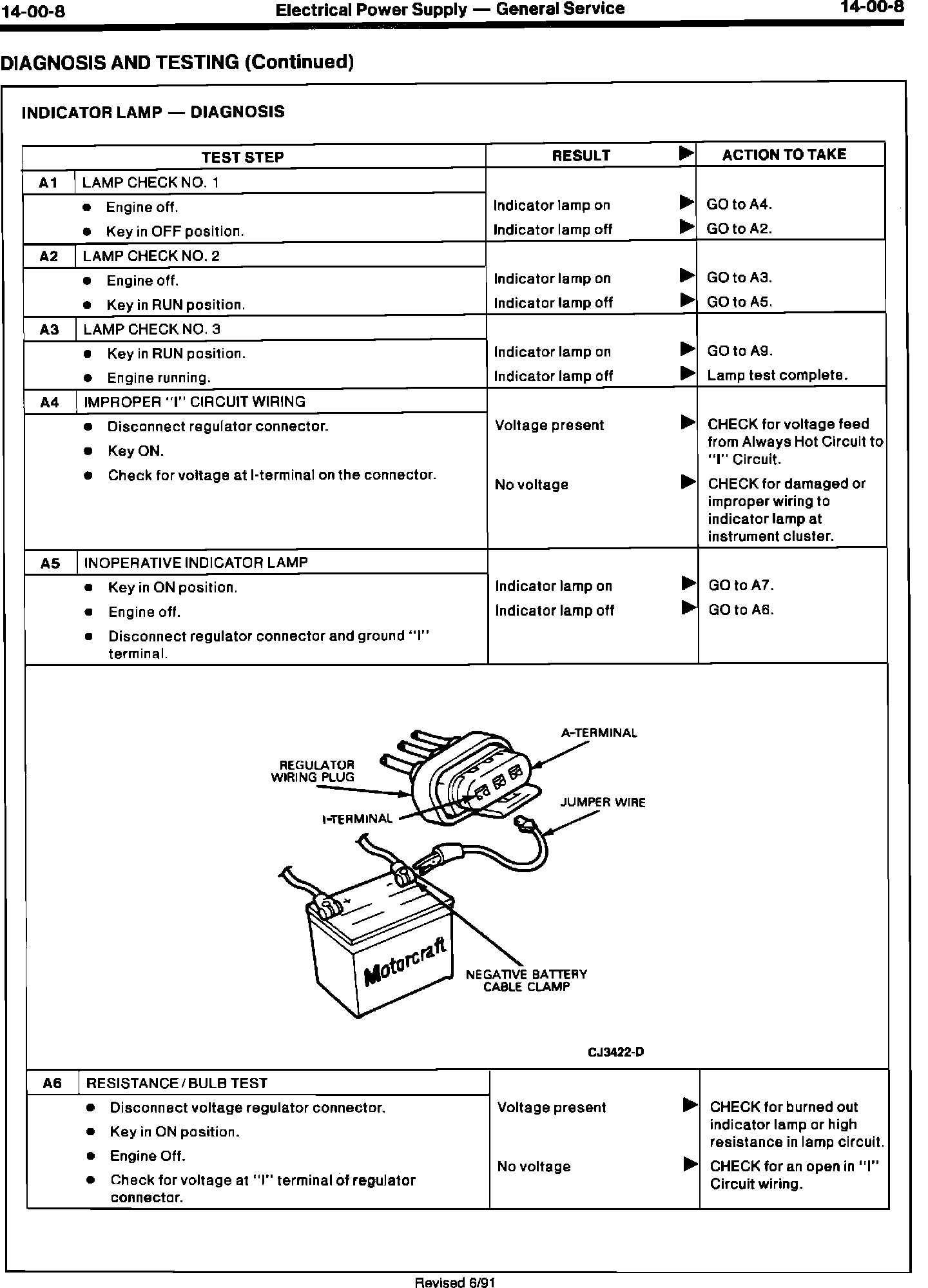

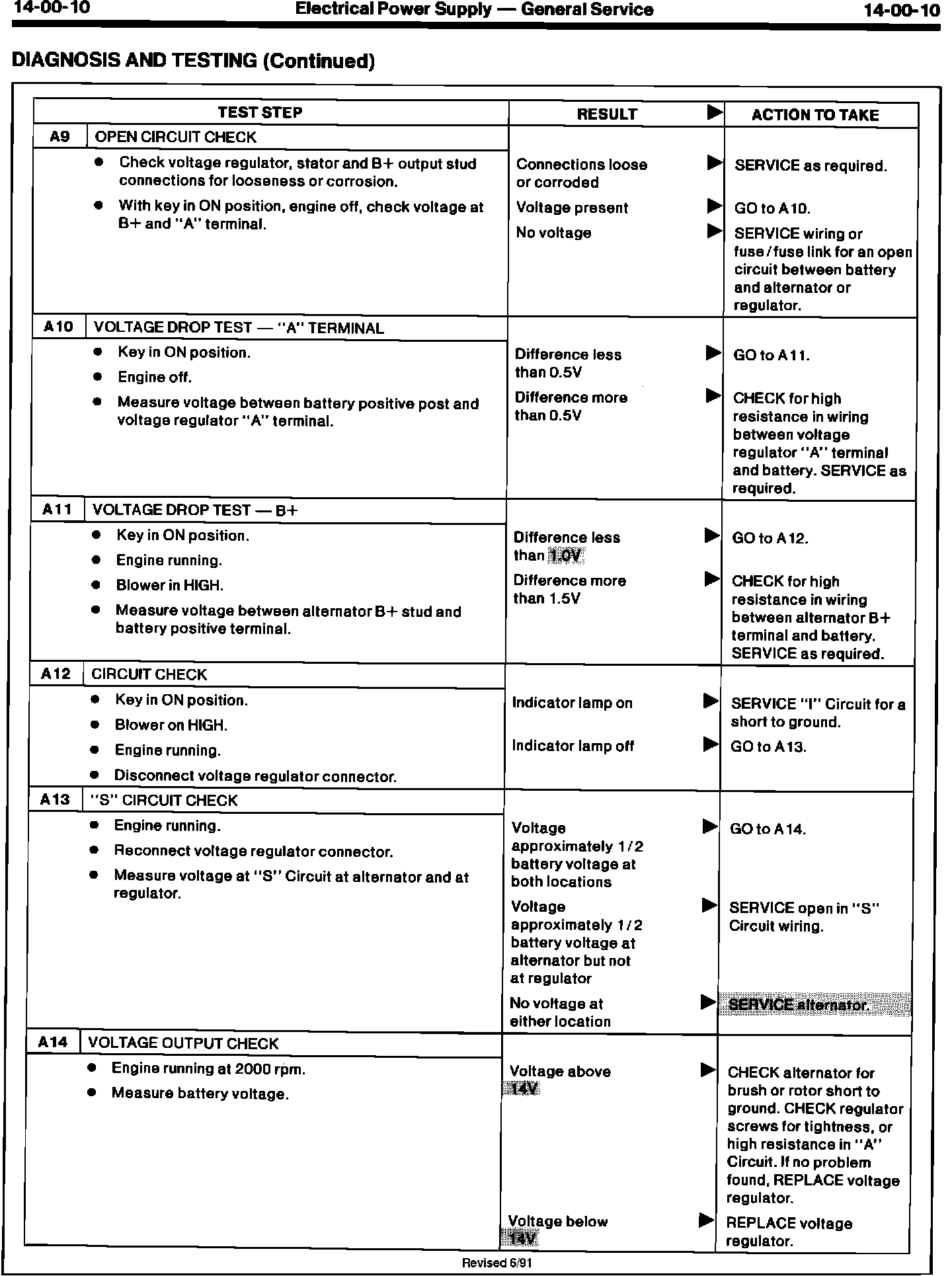

INDICATOR LAMP DIAGNOSIS

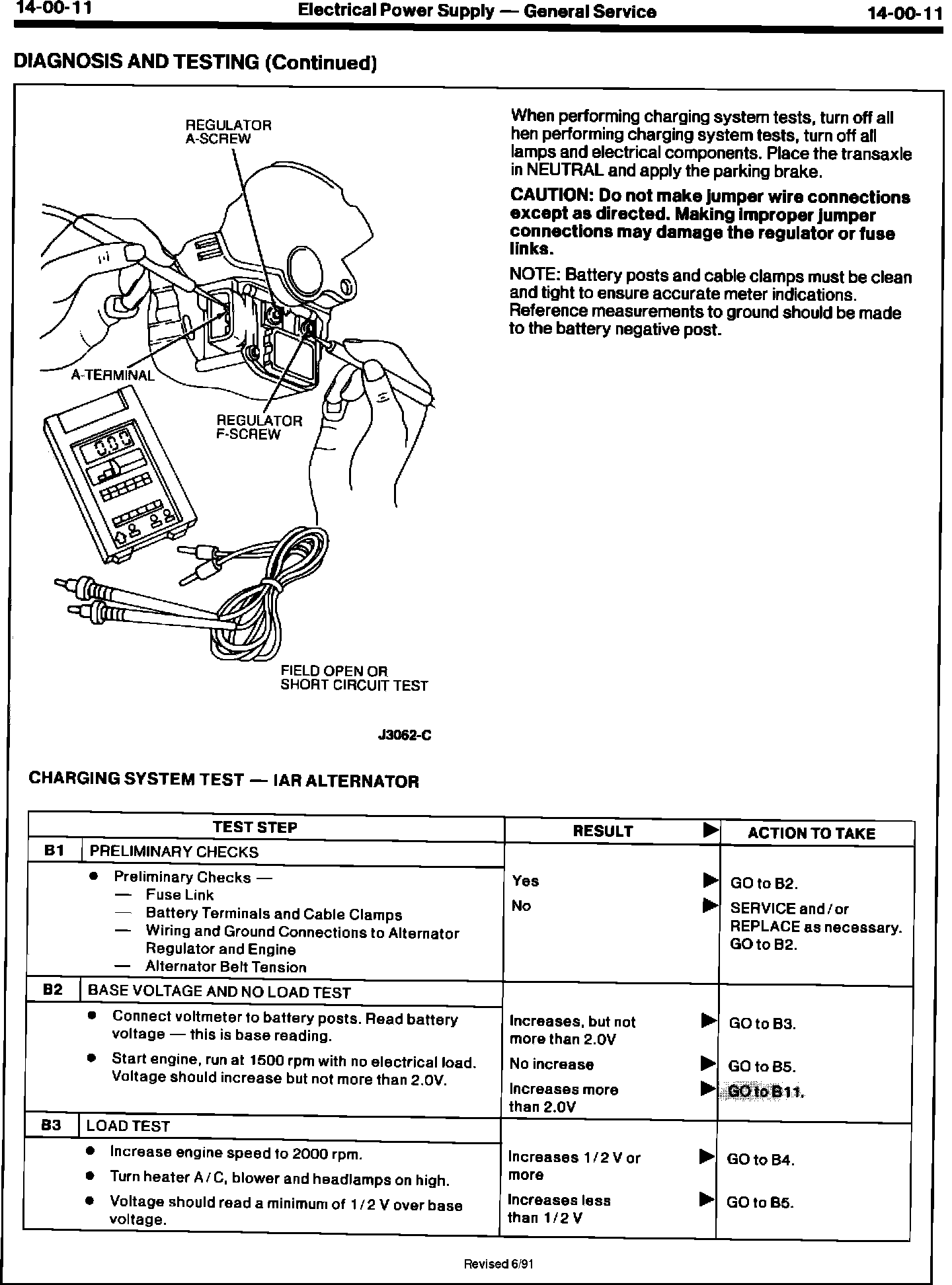

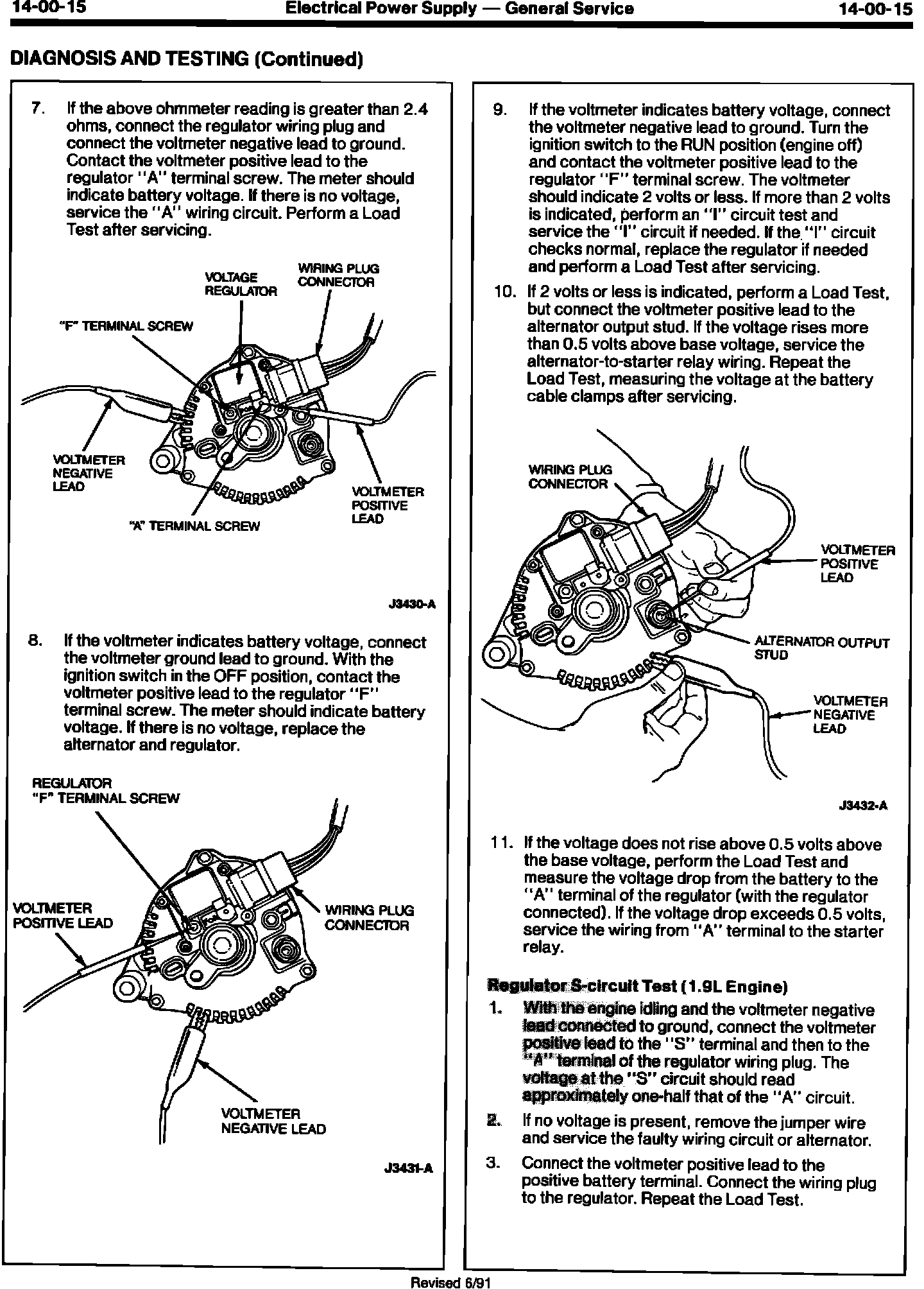

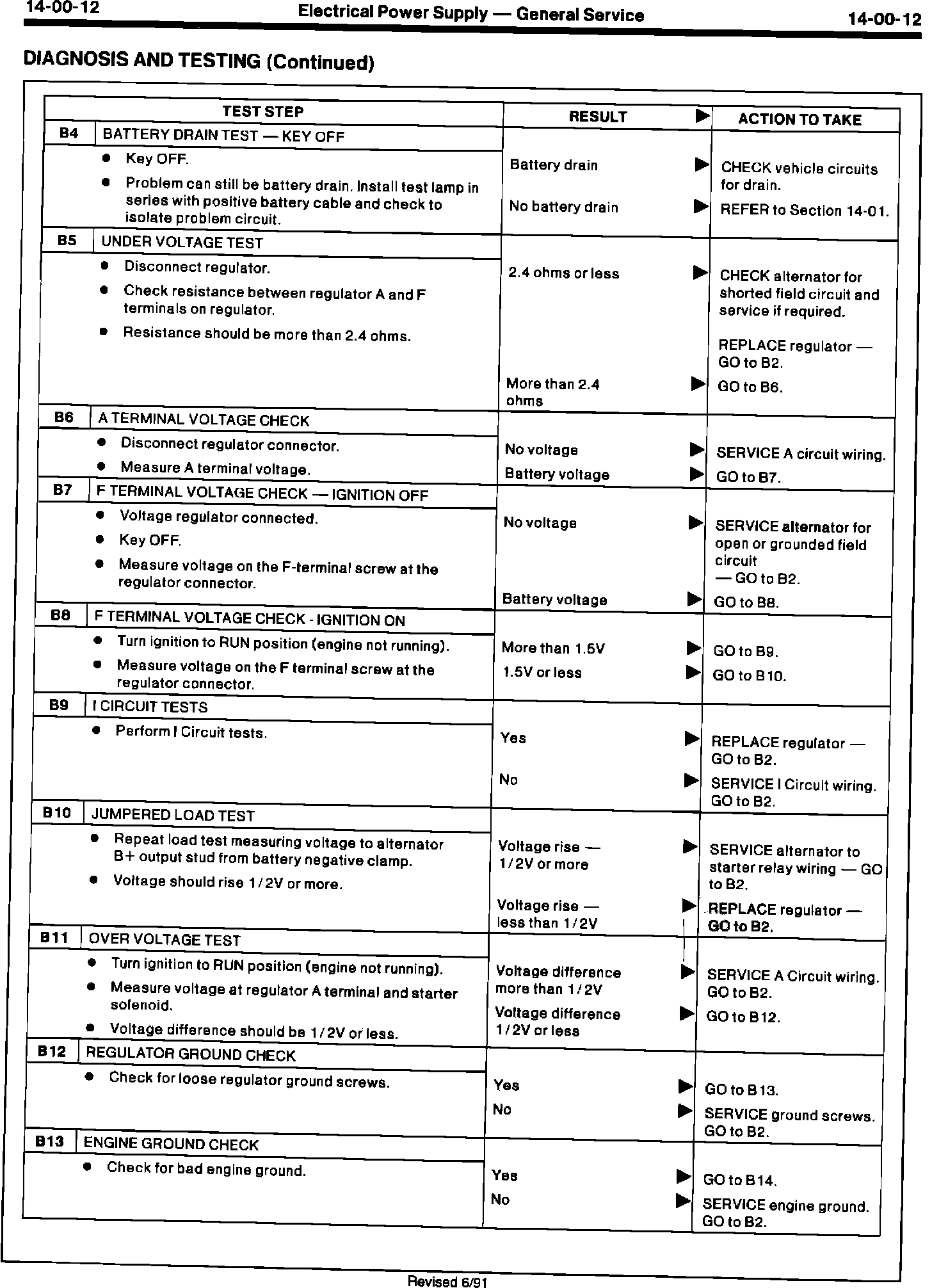

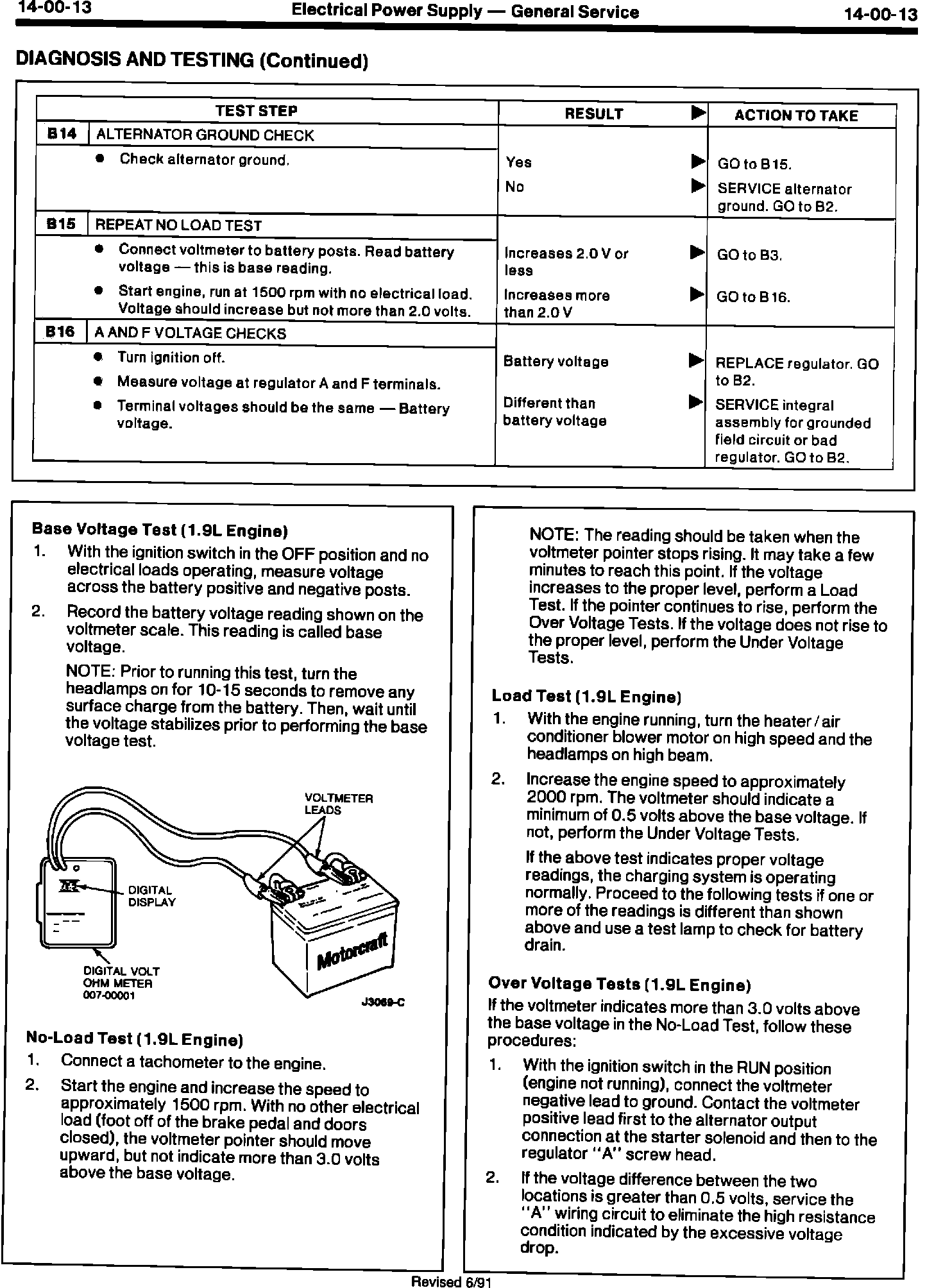

CHARGING SYSTEM DIAGNOSIS IAR ALT.

ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
