CID Testing Notes and Test Schematic
CID Testing Notes and Test Schematic
*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

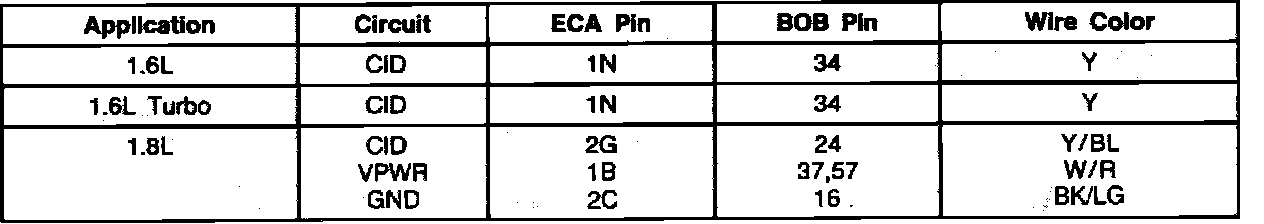

Pinpoint Test CID Testing Notes And Schematic:

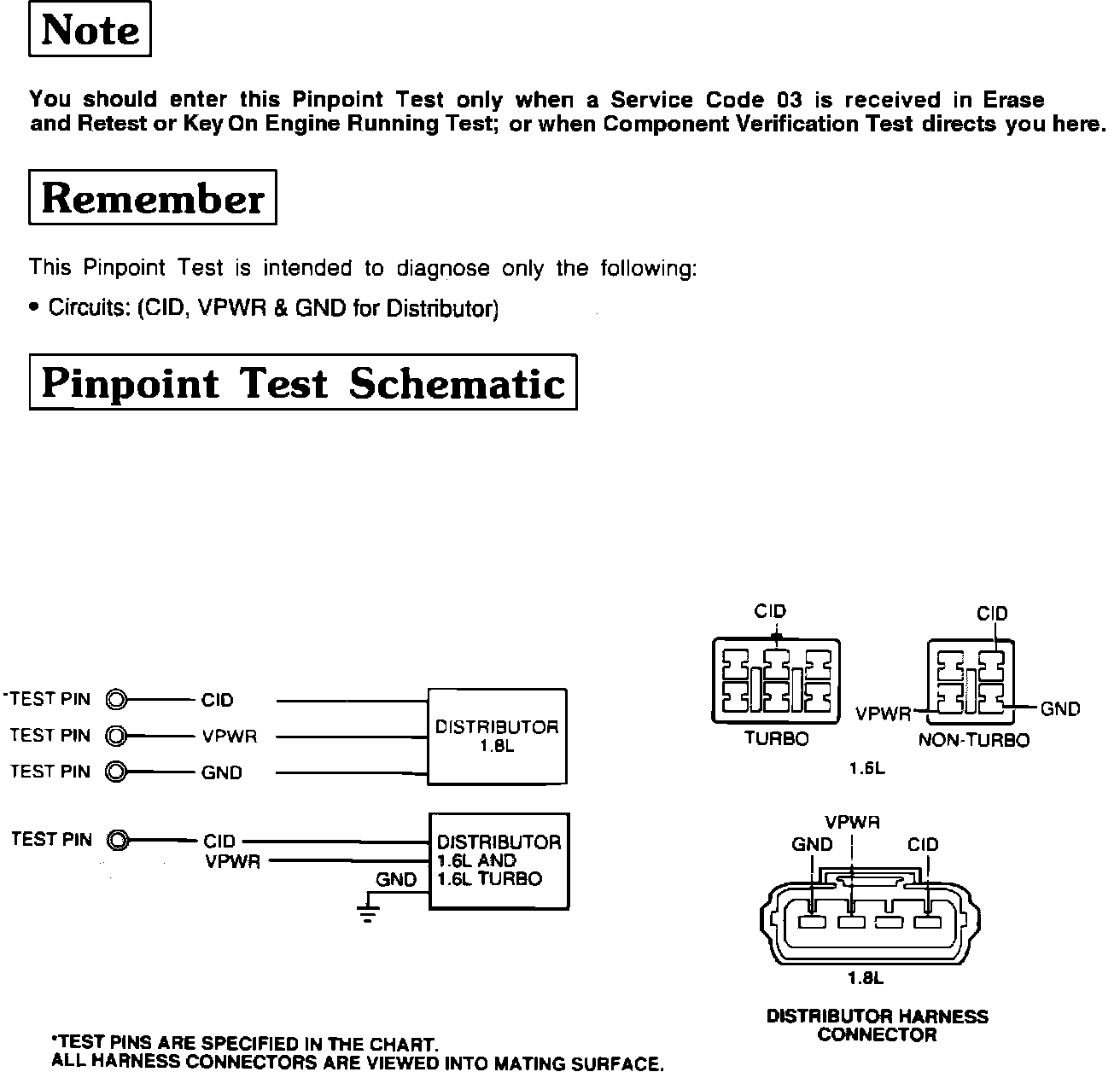

Pinpoint Test CID Test Schematic:
