Blower Motor Switch: Testing and Inspection

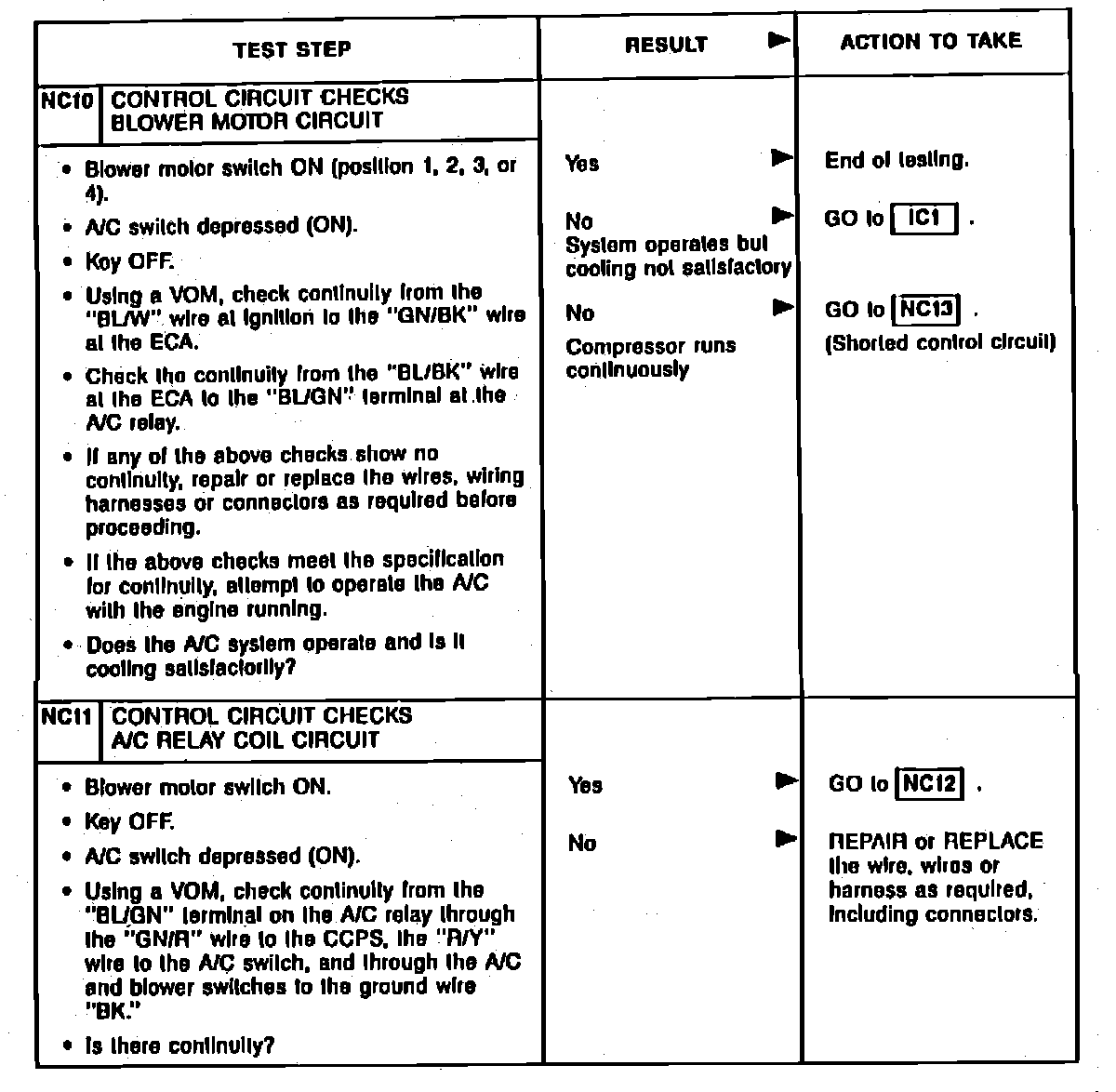

Fig. 42 Compressor clutch diagnosis (Tests NC10 & NC11):
