Seat Belt Diagnostics - Manual Revision

Article No.
91-14B-25

Date
July 22, 1991



SHOP MANUAL - 1991 - SECTION 01-20 - SEAT BELTS - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Seat Belts Section 01-20 of the 1991 Escort/Tracer Shop Manual has been revised. The original pages 01-20-03 through pages 01-20-13 has been revised by 01-20-3 through 01-20-09 of this bulletin.

ACTION:
Refer to the pages in this TSB article for the updated information.

Note:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
190000

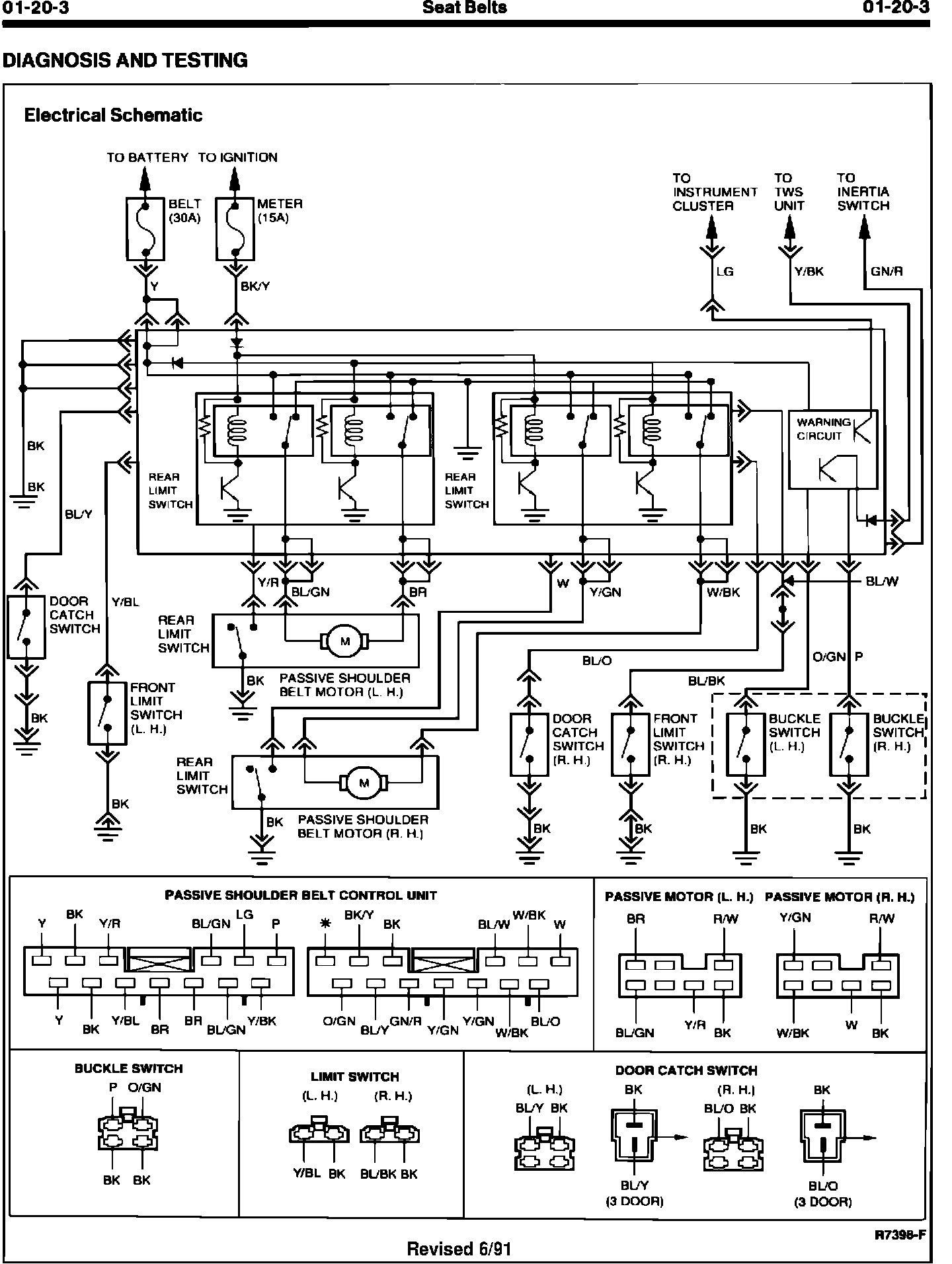

01-20-3 Electrical Schematic

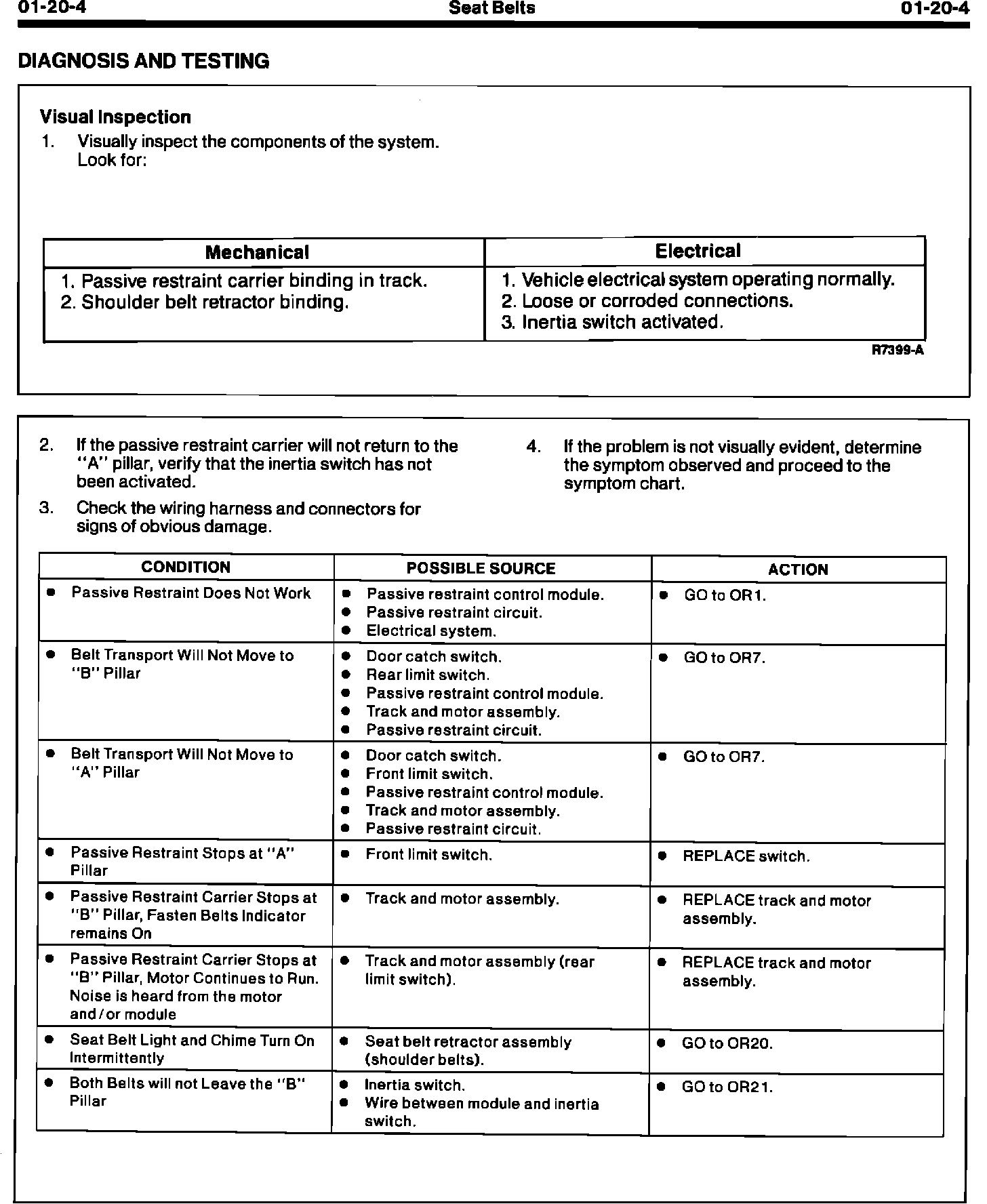

01-20-4 Visual Inspection Chart

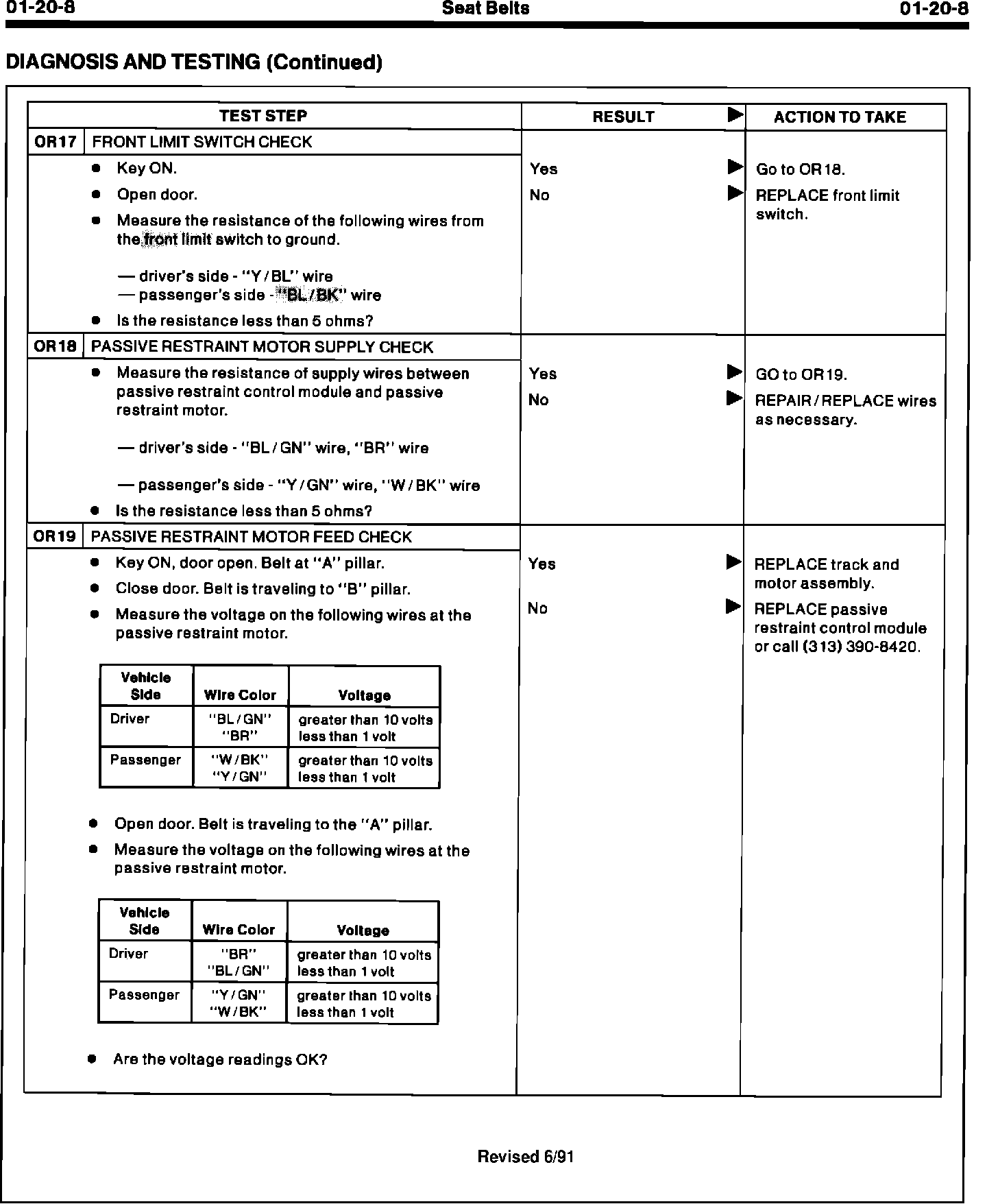

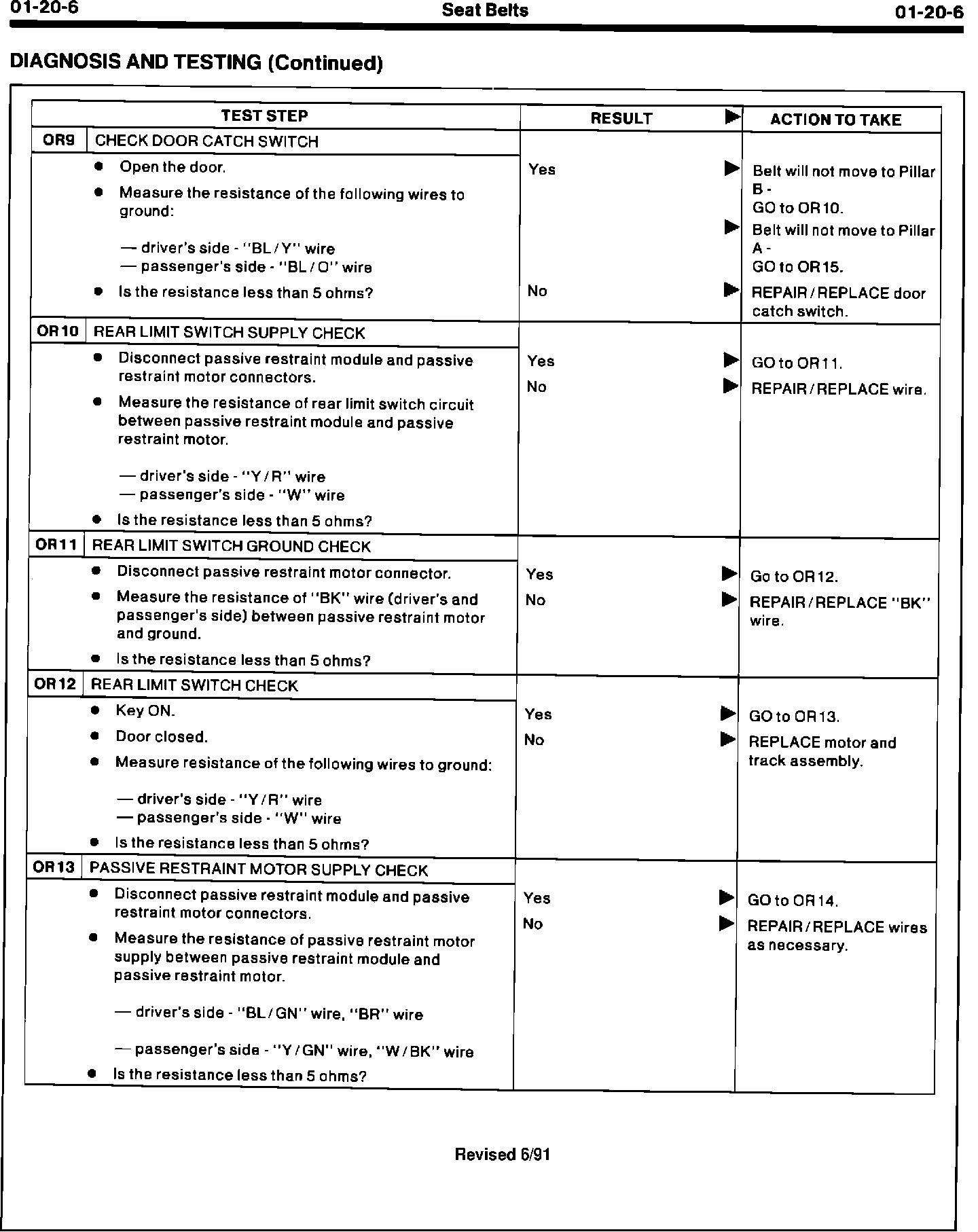

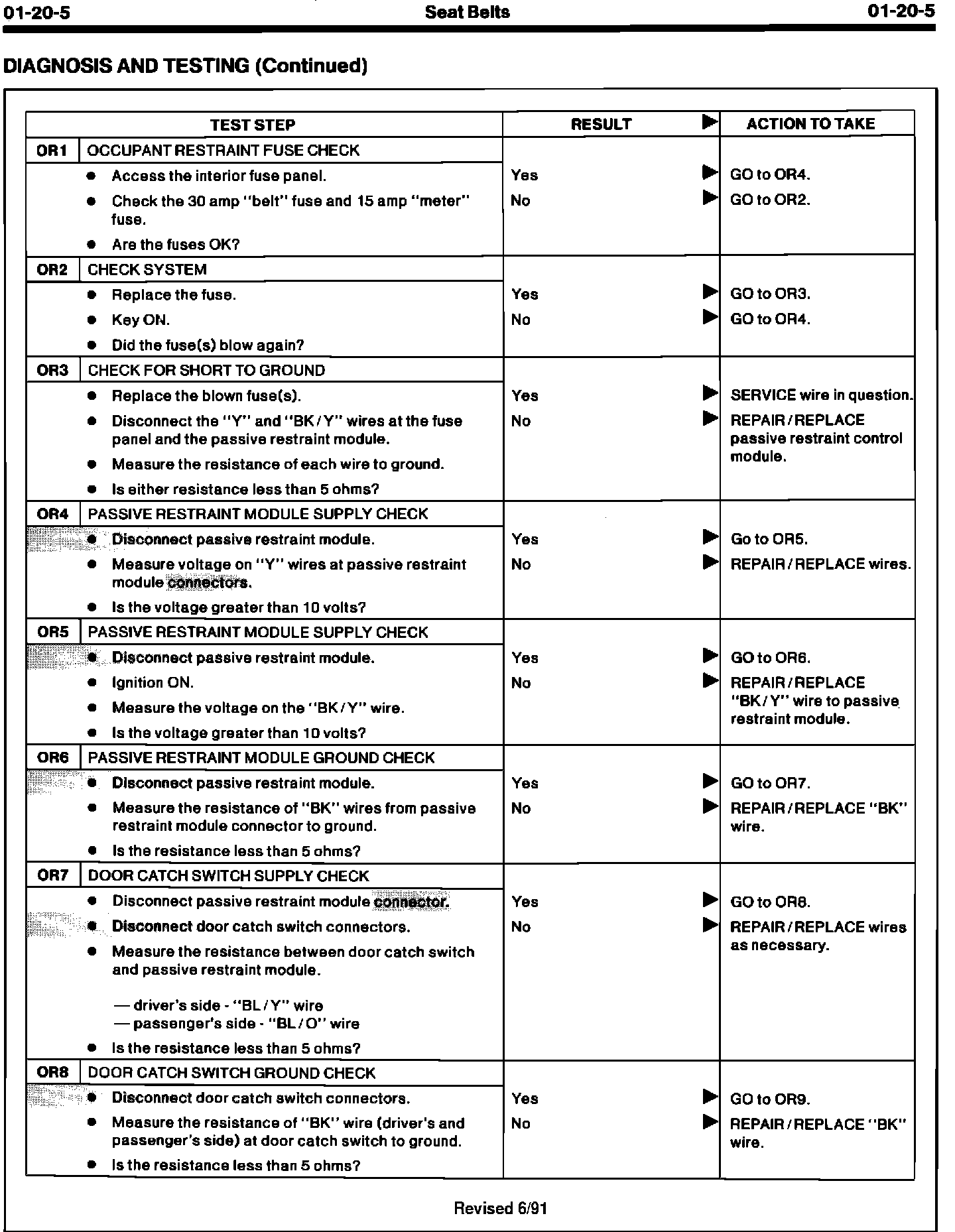

01-20-5 thru 8 Test Step
